P-7211

Item Number: 4000200400

Industrial VoIP Telephone

This telephone was put to EOL (End of Life) on 20th January 2022.

The phone can be replaced by Zenitel's Turbine-series IP Stations.

Note that there might be some limitations in functionality when using the Turbine stations with the ICS6200 server.

This item is end of life from 20th of January 2022. Remaining items in stock are reserved for Spare Parts.

  • Integrated loudspeaker/microphone
  • Handset, 2 meter sturdy curled cord
  • Hands-free, duplex communication
  • 2” Graphic backlit display:
    • Menus and navigation wheel/key
    • Contact list
    • Caller ID
  • Dimmable backlight (keypad)
  • Privacy switch (Do not disturb) with priority override
  • Manual PTT (push-to-talk) key
  • 3 pcs programmable direct access keys (A-B-C)
  • Volume adjustment with override
  • Speakerphone SPL level >85dB(A) (integrated loudspeaker)
  • Bulkhead mounted
  • MMI according to IEC 62288 Ed 2.0
  • Status/health indicator
  • Multiple ring melodies
  • Integrated call relay for external signal device
  • Output to external loudspeaker, 8 W – SPL level > 110dB (loudspeaker dependent)
  • Headset connection
  • 2-port 100Mbit Eth switch for data connectivity
  • Complies with IEC 60945 Standard for Marine Equipment
  • DNV/ABS/RMRS/CCS type approval and compatible with NORSOK

The P-7211 Telephone is intended for installation outdoors or in harsh environments inside. This is a VoIP station with handset, loudspeaker, internal microphone, memory functions etc. It is equipped with an amplifier for additional external loudspeaker and relay for external call signal device (beacon, siren and others).

Mechanical

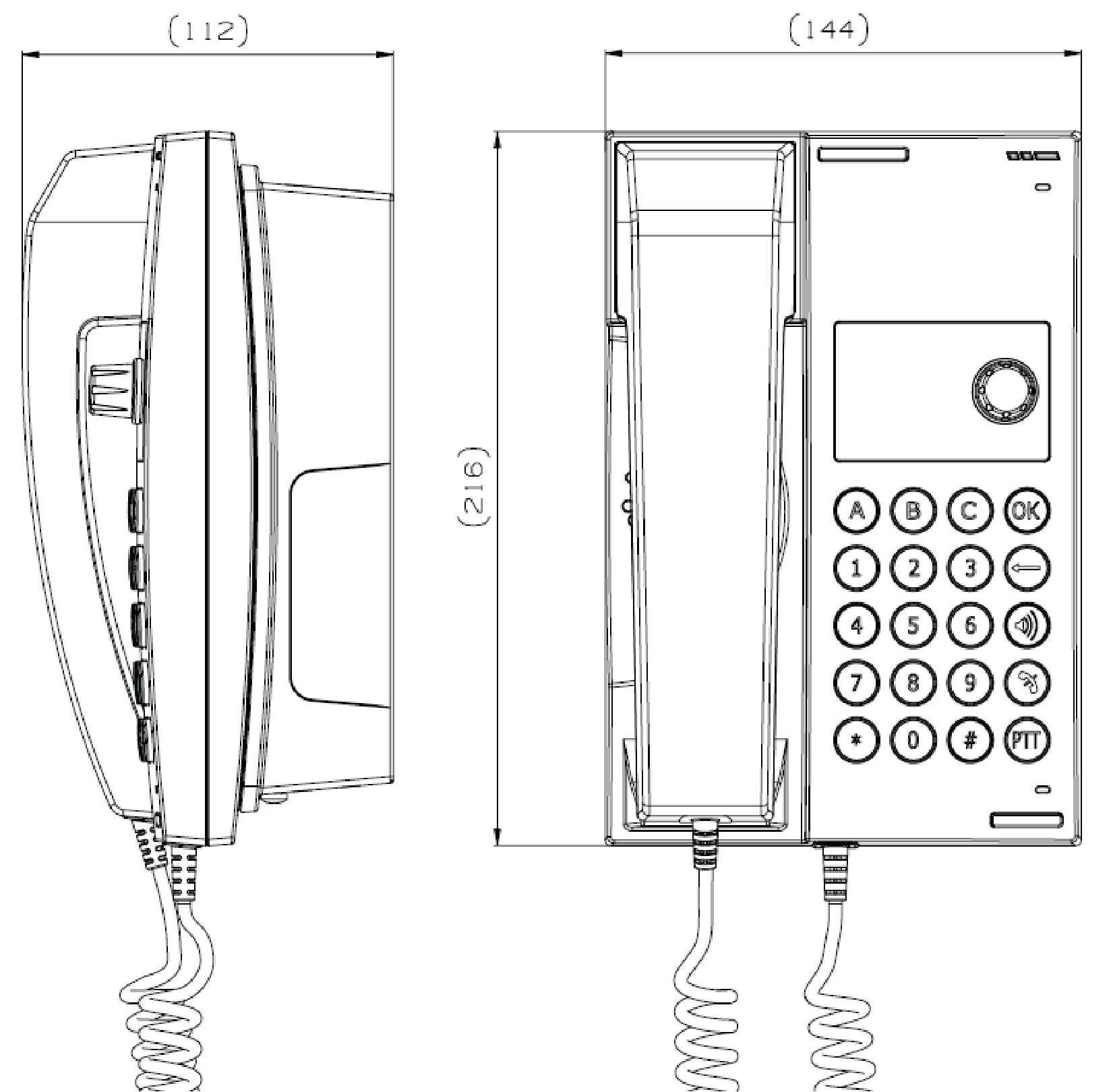

Dimensions (WxHxD) 144 x 216 x 120 mm
Weight 1.1 kg
Material Plastic (PC/ASA)
Color Grey – RAL 7021/7043
Mounting Bulkhead / Direct or Bracket
Fixing 4 x M4 bolts
Access Front
Cable Entry Side / Bottom – through Glands (optional)
Connector Type RJ45
Electrical
Power Supply PoE / 24VDC (Optional external power). Additional 24V/1.5A input for call relay and amplifier for external loudspeaker.
Line Format VoIP, PoE
Power Consumption 10W (max – external loudspeaker)
Termination Line: RJ45. External loudspeaker/external signal device, etc: clamp terminals.
Compass Safe Distance >5 m
External loudspeaker 8W / 20Ω
External signal device, Call relay 6.3A (max)
Heat dissipation (typical/max) < 2W (max)
Environmental
Temperature -25°C to +55°C
Humidity +93% (at +40°C)
Ingress Protection Rating IP-56 (exposed)
UL94 V0
