P-9001

Item Number: 4000017570

Indoor Substation

  • Privacy functionality
  • 2-way loudspeaker
  • CALL and TALK button
  • Complies with IEC 60945 Standard for Marine Equipment
  • RMRS type approval
Marine 40x40 ico Onboard communication

The P-9001 is a Command Intercom System (talk-back) substation for indoor environments such as cabins and mess rooms. It is 2-way loudspeaking and equipped with both a CALL and TALK button.

The unit provides privacy functionality to prevent unintended listening in.

Mechanical

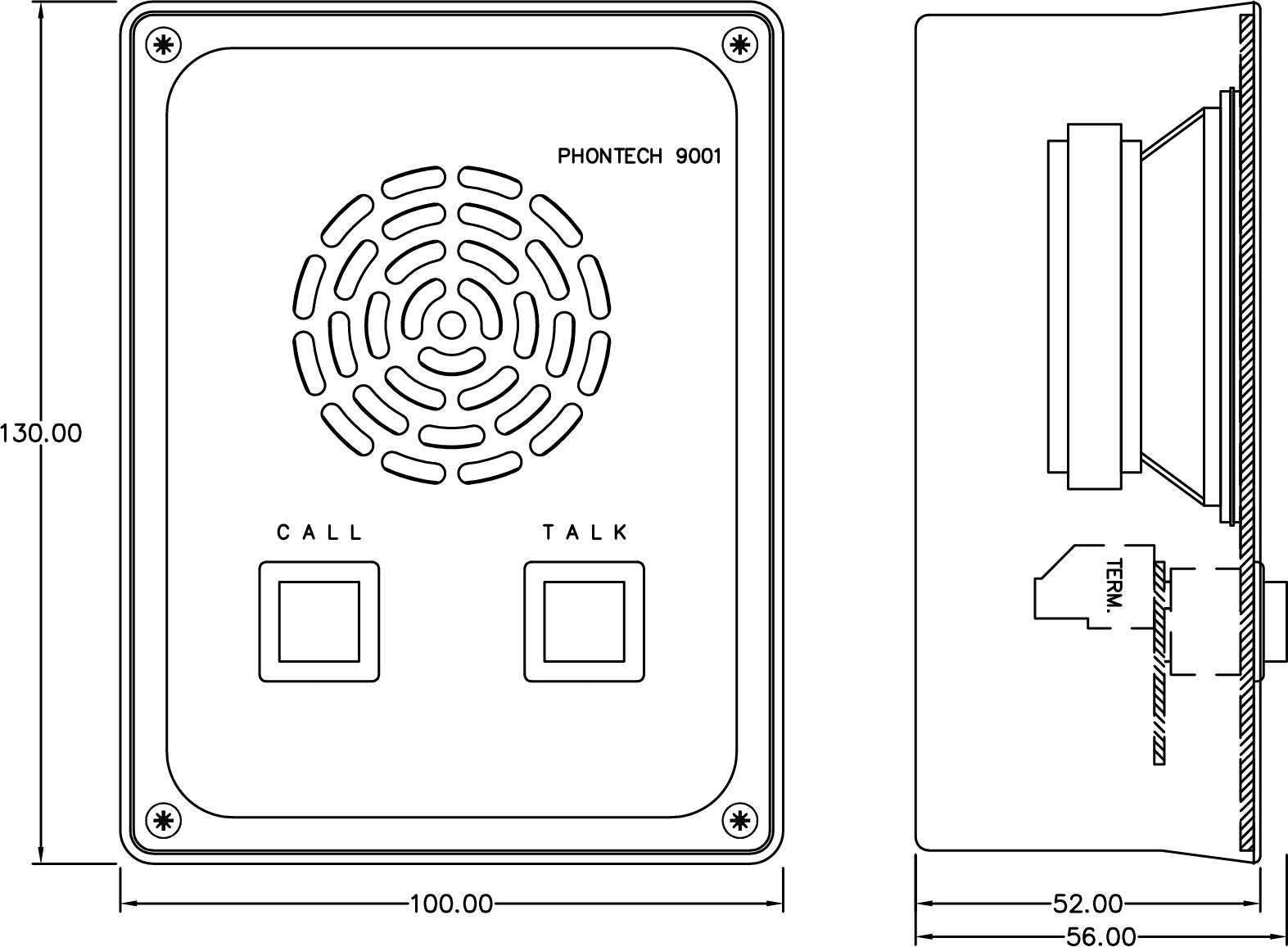

Dimensions (WxHxD) 100 x 130 x 56 mm
Weight 0.3 kg
Color RAL 9005/9006
Material PC / ABS blend, ABS
Mounting Wall

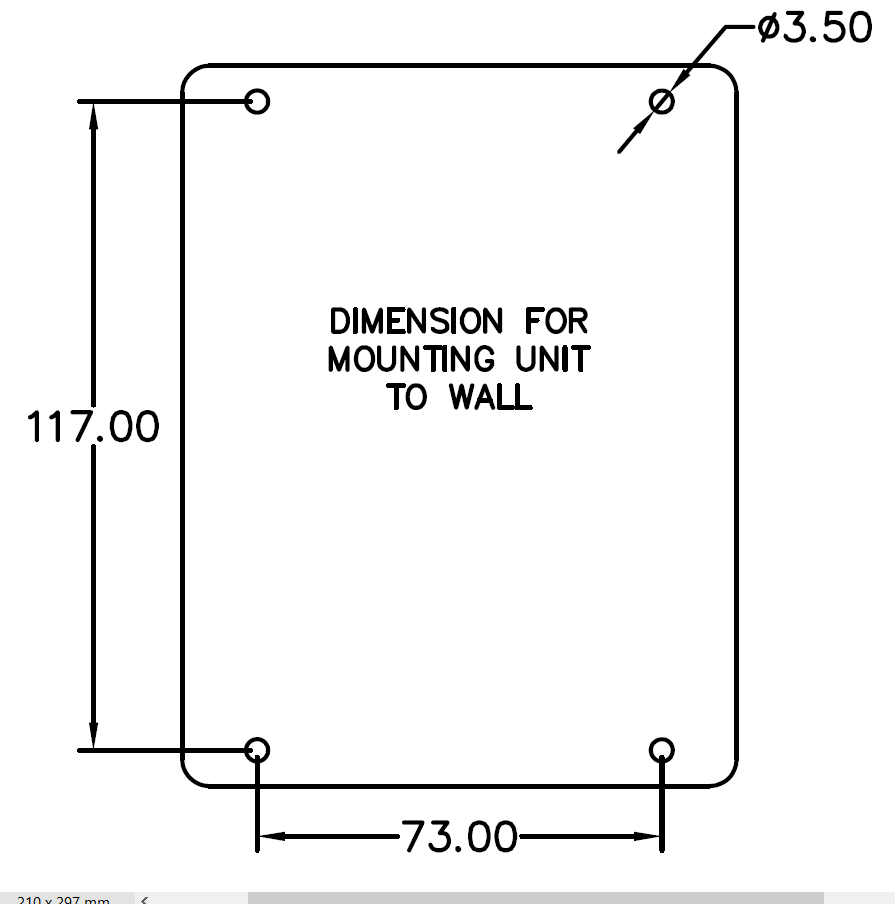

Fixing 4 x M3 bolts
Access Front
Electrical
Power Supply From central/line supply
SPL (1m) >80 dB(A)

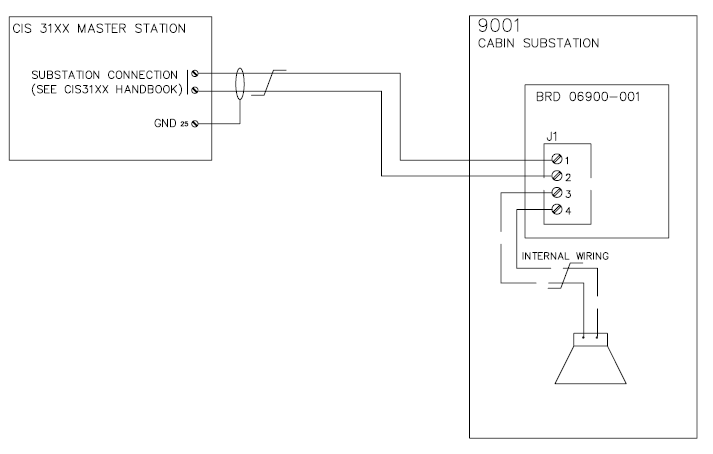

Termination Screw terminals ≤ 2.5 mm2
Compass Safe Distance > 5 m
Environmental
Temperature -15°C to +55°C
Humidity +93% (at +40°C)
Ingress Protection Rating IP-31



Date Name Category Size Document
10.08.2023 MD-SDoC-4000017570-IHM-8003-41772-78439 Declaration 72.15 KB Login to download
28.02.2023 4000017570 P-9001 CAD Drawing.zip CAD 2D 458.52 KB Login to download
17.11.2022 CIS_31xx_DoC_11.11.2022 Declaration 82.25 KB Download
18.05.2022 DNV-GL Type Approval Certificate CIS_TAA000021X-revision1 Certificate 273.17 KB Download
14.01.2020 17570_EC_9001_Accomodation-Unit System Drawing 39.93 KB Login to download
