P-9013

Item Number: 4000015069

Bridge Wing Unit

  • Microphone contact
  • Loudspeaker connection
  • Indoor use
  • Low voltage directive 2006/95/EC
  • CE marking directive 93/68/EEC
Marine 40x40 ico Onboard communication

The P-9013 is an indoor communication unit for bridge wing port/starboard connected to the CIS 3000 Command Intercom system.

Mechanical

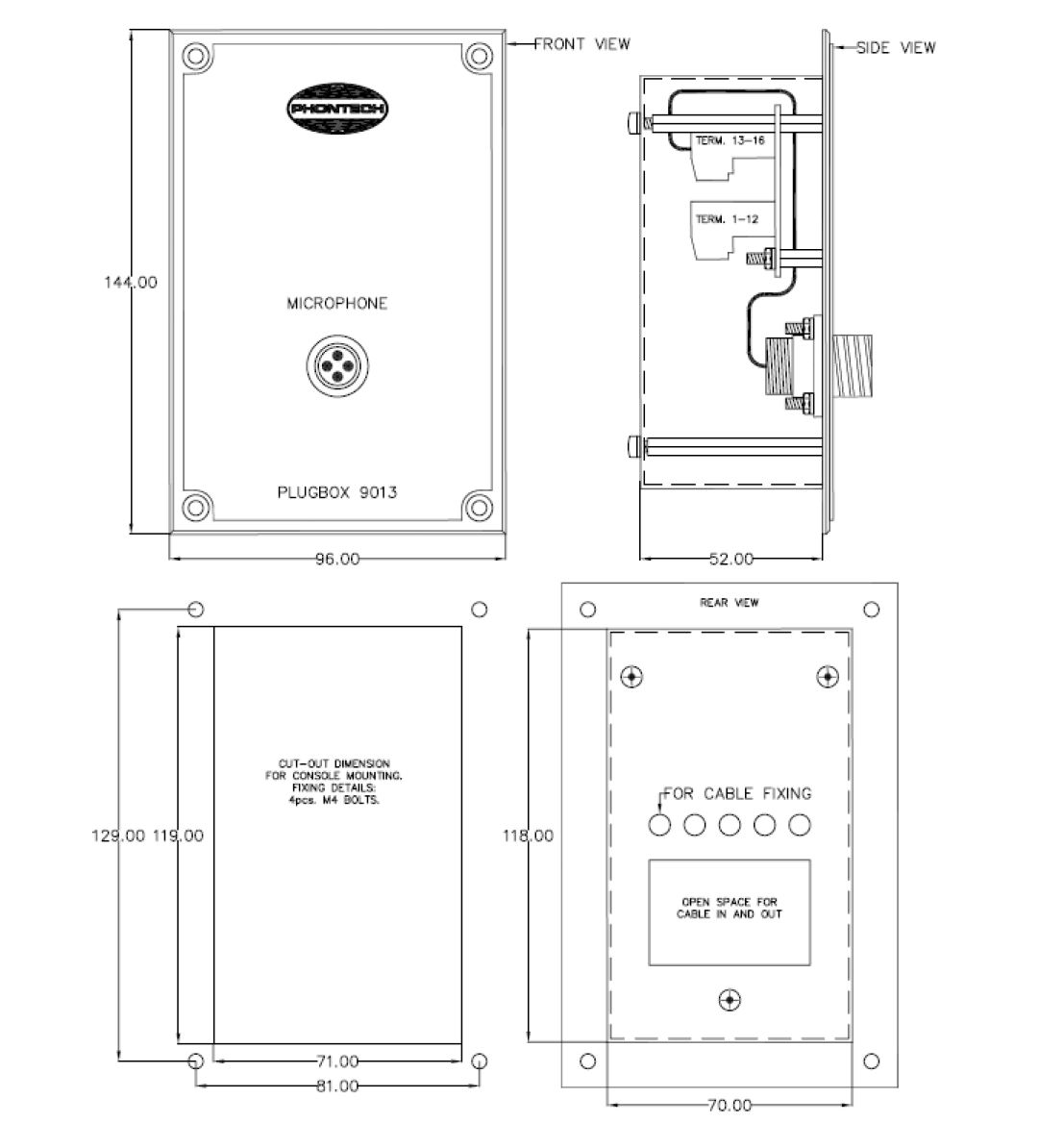

Dimensions (WxHxD) 96x144x52 mm
Weight 0.25 kg
Color RAL 9005
Material Aluminium
Mounting Console
Fixing 4 x M4 bolts
Access Front
Cable Entry Bottom
Electrical
Power Supply 24VDC from Central Unit

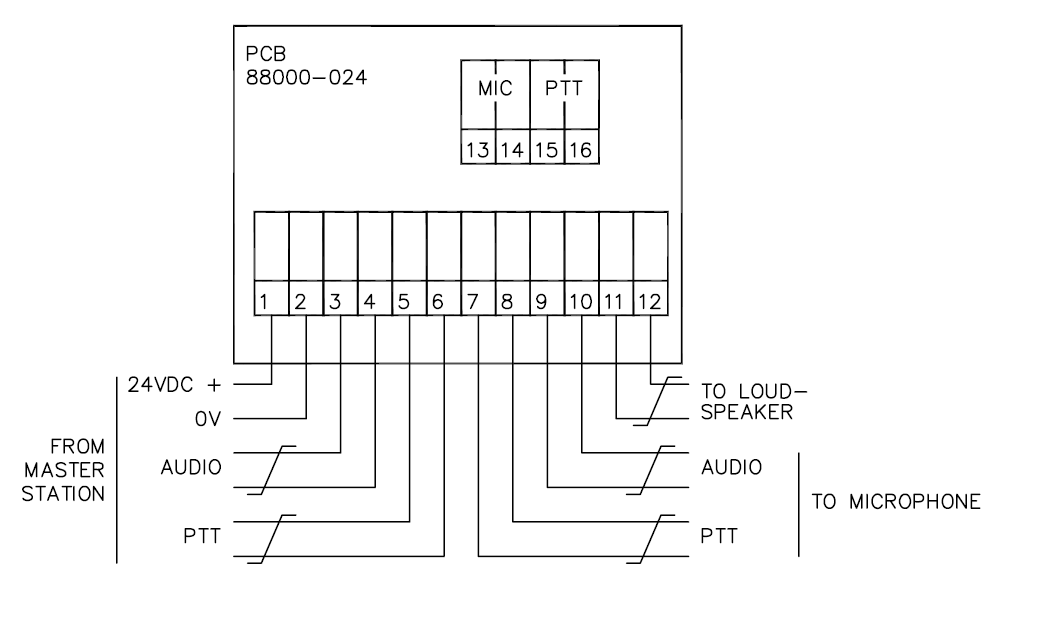

Termination Screw terminals
Environmental
Temperature 0°C to +45°C
Humidity 20-80 % Non-condensing
Ingress Protection Rating IP-20
