P-9024

Item Number: 4000016134

Line Amplifier

  • 120 W
  • 100 V Loudspeaker line
  • 230 VAC with 24 VDC backup power supply
  • High power – low noise circuit
  • Complies with IEC 60945 Standard for Marine Equipment

The P-9024 amplifier is a 120W, 100V line amplifier for a 19” rack mount. The P-9024 unit can be used together with the CIS 31xx Talk Back system when there is high demand for power.

The communication will be one way only from master station to the P-9024 amplifier unit without any talk-back functionality.

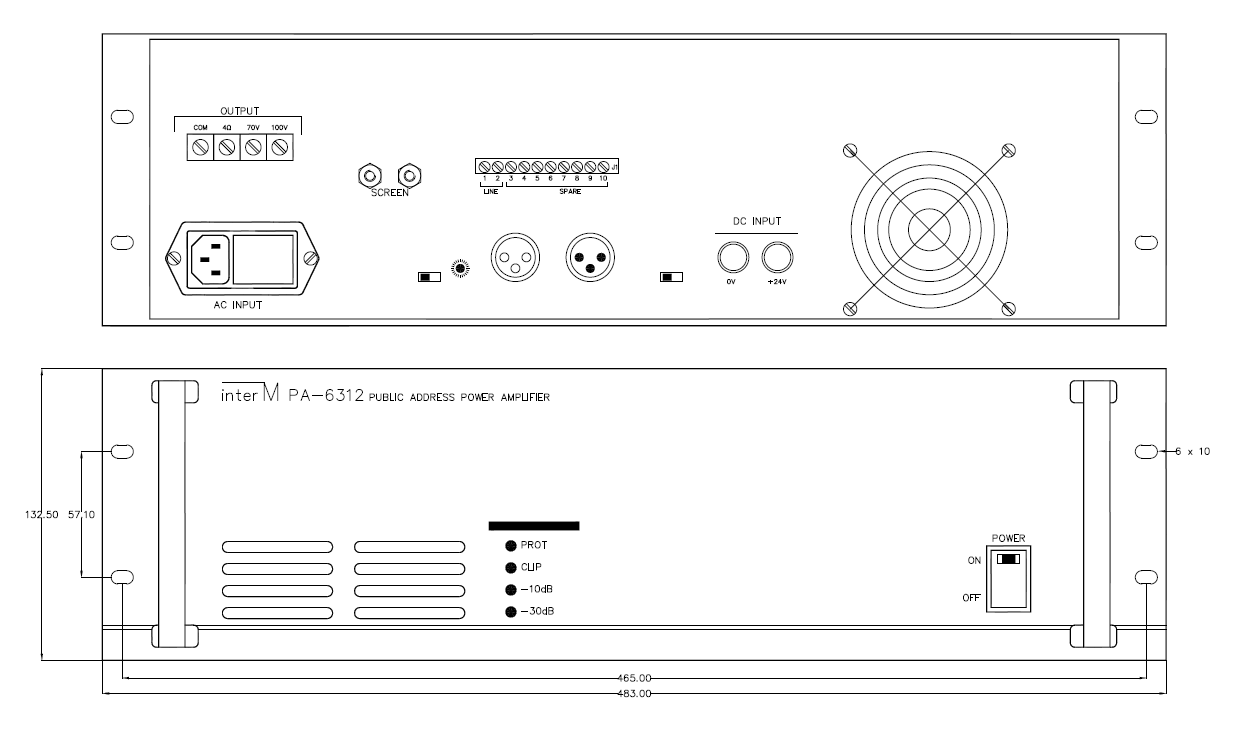

Mechanical
Dimensions (WxHxD) 19” 3U (483x132.5x300 mm, depth with handle 340 mm)
Weight 14 kg
Color Black
Material Steel
Mounting 19” Rack
Fixing 4 x M5 bolts
Access Front
Cable Entry Rear
Electrical
Power Supply 220 VAC / 24 VDC
Power Consumption (idle/max) ~30 W / ~250 W
Termination IEC AC Inlet, 24 binding post, screw terminals for 100V

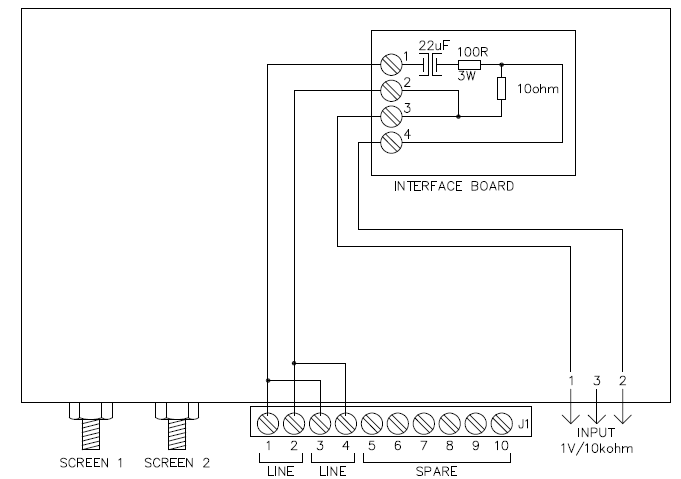

Input 5V / 110 Ω (CIS Substation Line)
Output 4Ω / 70V / 100V
Frequency Response 70Hz-18kHz, +1, -3dB
Distortion <1% THD, 1kHz, Rated output
Signal to Noise Ratio >95 dB
Filter Two section, –3dB @ 400Hz
Environmental
Temperature -15°C to +55°C
Humidity +93% (at +40°C)
Ingress Protection Rating IP-20
