P-9135

Item Number: 4000016947

Engine Control Room Telephone

  • Handset
  • Console mounted

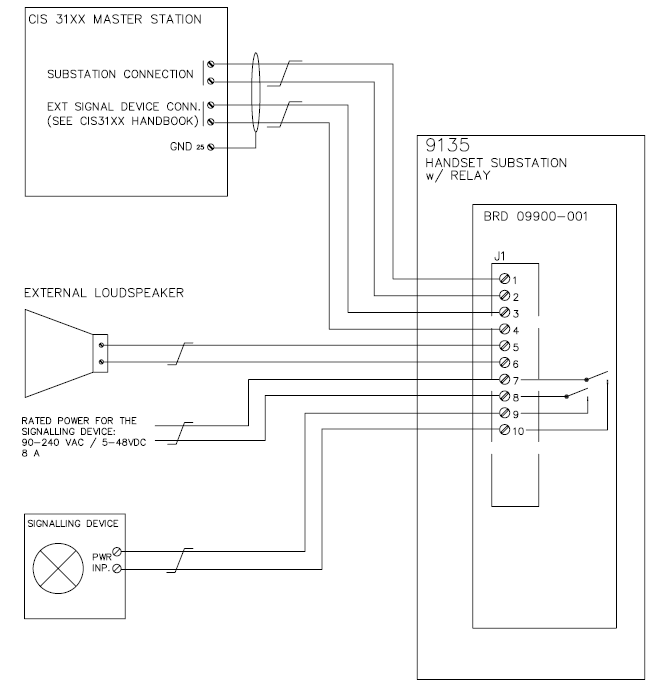

The P-9135 is an Engine Control Room Telephone connected to the Command Intercom system CIS 3000.

Mechanical
Dimensions (WxHxD) 144x240x33 mm
Weight 0.8 kg
Mounting Console
Electrical
Power Supply (24 VDC) From central/line supply
Switchin current 8A
Termination Screw terminals ≤ 1.5 mm2
Compass Safe Distance >5m
Environmental
Temperature -15°C to +55°C (Storage: -25°C to +70°C)
Humidity +93% (at +40°C)
Ingress Protection Rating IP 44

Date Name Category Size Document
9.08.2023 MD-SDoC-4000016947-IHM-8003-41772-75968 Declaration 72.16 KB Login to download
24.02.2023 4000016947 P-9135 CAD Drawing.zip CAD 2D 982.66 KB Login to download
17.11.2022 CIS_31xx_DoC_11.11.2022 Declaration 82.25 KB Download
18.05.2022 DNV-GL Type Approval Certificate CIS_TAA000021X-revision1 Certificate 273.17 KB Download
