PROMAX-240-24 Power supply picture

PROMAX-240-24

Item Number: 2990000043

Power supply 100-240VAC/24VDC 10A

Switch-mode AC to DC power supply for 10A @ 24Vdc equipment.

    GENERAL
    Dimensions 60 x 130 x 125 mm / 2.362 x 5.118 x 4.921 inches
    Net weight 1050 g
    IP grade IP20
    Connection type Screw terminals
    Operating temperature -25 °C...70 °C
    Environmental Condition Protected
    INPUT
    Rated input voltage 100..240 V AC
    Frequency range 45…65 Hz
    Current consumption 1,5A @ 230 VAC / 3A @ 115 VAC
    Inrush current max. 15 A
    Input fuse (internal) Yes
    Recommended external fuse Minimum 10A B-type or 6..8 C-type
    OUTPUT
    Output power 240 W
    Output voltage 22.5...29.5 V (adjustable via potentiometer)
    Output current (nominal @ 24V) 10 A @ 60 °C
    Protection against inverse voltage Yes
    Date Name Category Size Document

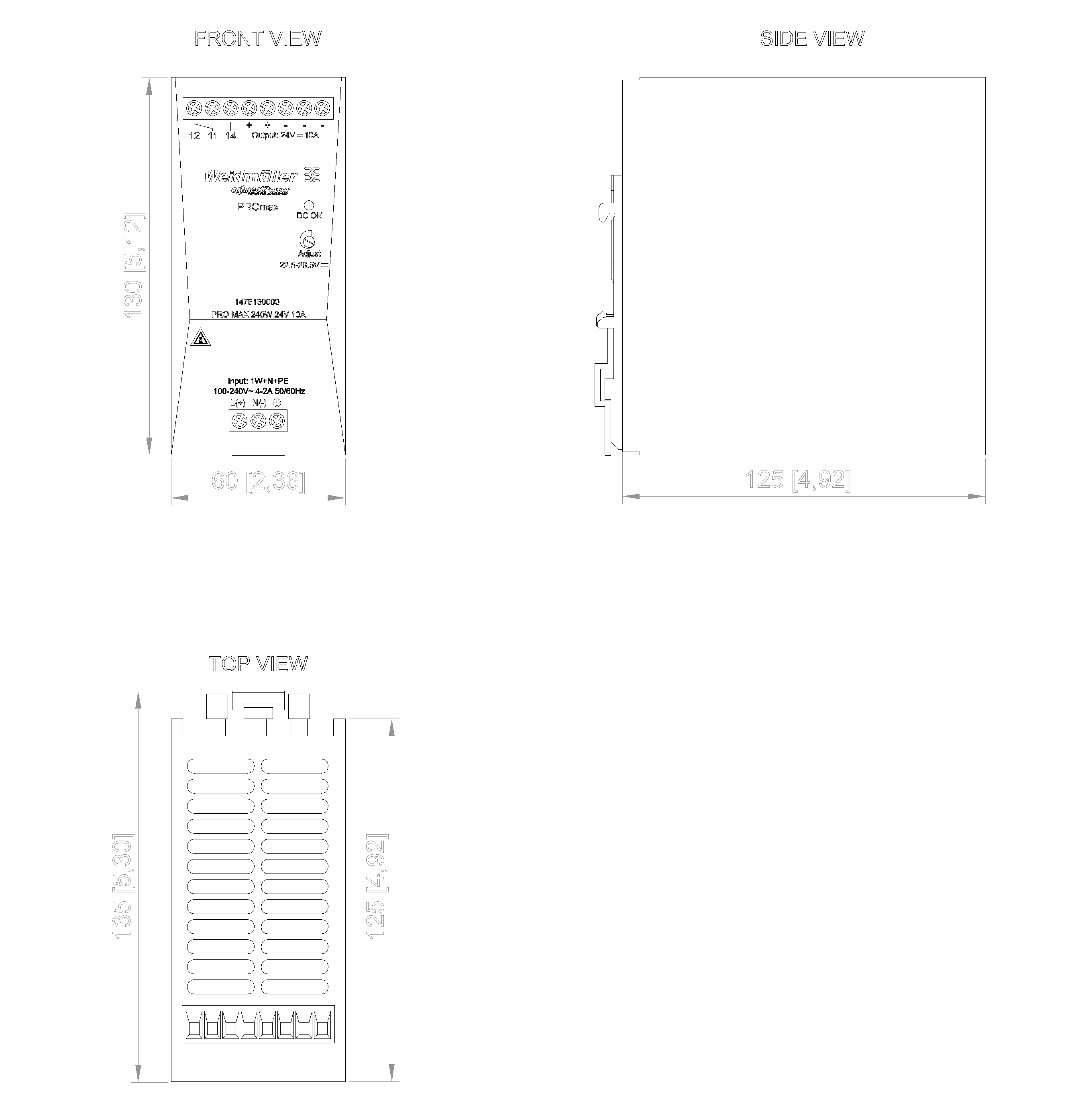

    12.10.2023 2990000043_PROMAX-240-24_Dimensional_Drawing CAD 2D 467.62 KB Login to download
    7.07.2023 MD-SDoC-2990000043-IHM-8003-41818-71883 Declaration 72.15 KB Login to download
    22.02.2021 PRO_MAX_DNVGL.pdf 65.77 KB Download
    19.02.2021 PROMAX-240-24_DoC.pdf 407.9 KB Download
    19.02.2021 PROMAX-240-24_User_Manual.pdf 1.69 MB Download
