PSU-FLT

Item Number: 1015818

AC Filter, DIN, 1-Phase, max. 250VAC/10A

  • 1-Phase Power Supply Filter
  • DIN rail mounting
  • Suppresses interference generated on the mains side of power supplies
  • Efficiently filters out line bound interference emissions
  • Increases the interference immunity of connected loads



SPECIFICATION
Filter type anti-interference
Input voltage range 0 - 250 VAC
Nominal mains frequency range 50 - 60 Hz
Input current ≤ 10 A
Power loss ≤ 4 W
Connection technology CAGE CLAMP
Operating temperature -25 to 70°C
Mounting DIN Rail
Body dimensions (WxHxD) 50 x 85 x 100 mm
Weight 0.34 kg
Parallel operation Yes
Series operation No
Protection type IP20

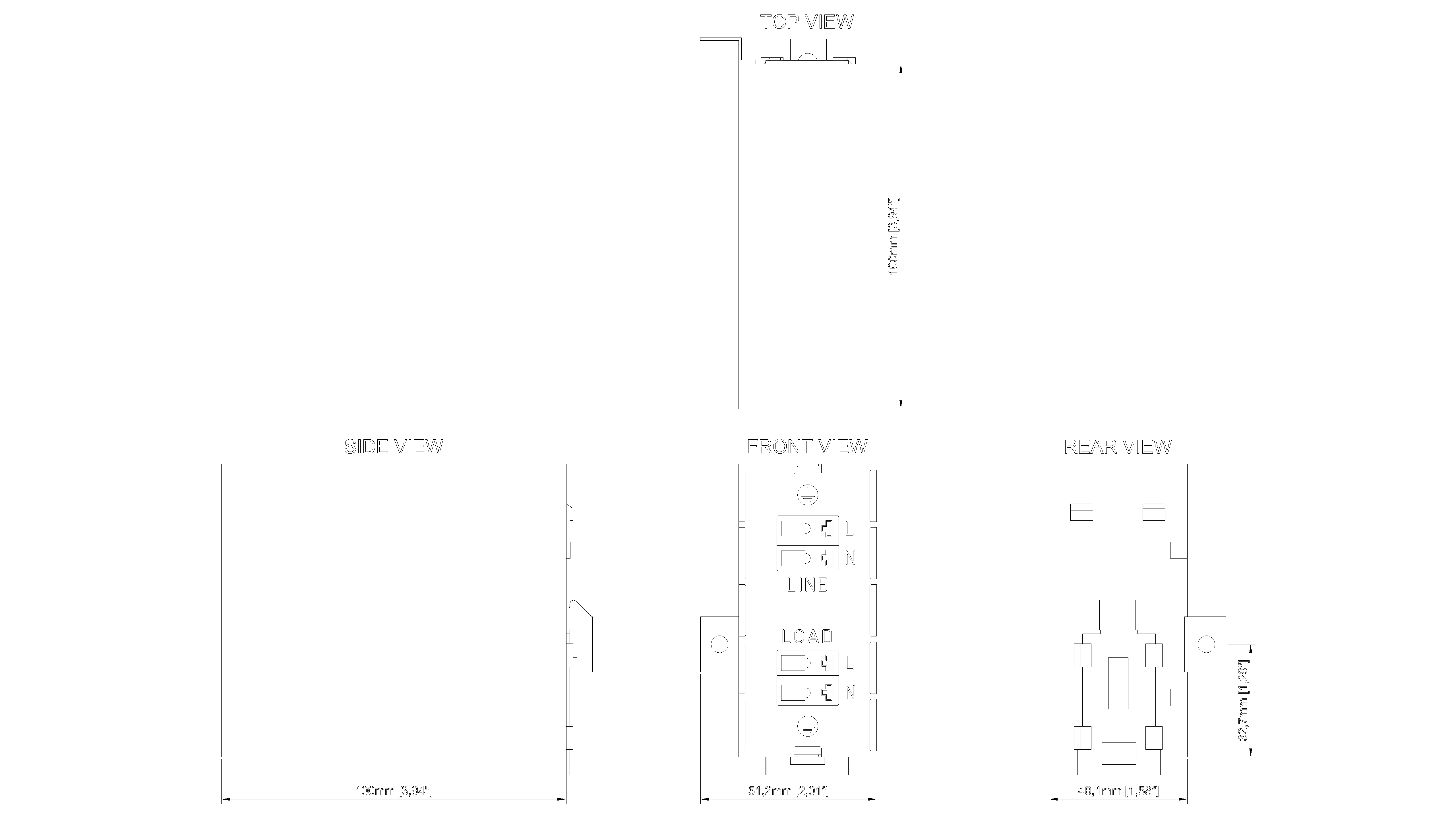

1015818_PSU-FLT
Date Name Category Size Document
WAGO_787-980_Data_Sheet Datasheet 1.33 MB Download
Regulatory Compliance Declaration_ROHS_REACH Declaration 6.98 KB Download
1015818_PSU-FLT CAD 2D 455.03 KB Login to download
