SAFE-561IPT-MED

Item Number: 2131000157

Wall mounted speaker, VA, 100V, IP55, 6W

  • 100V line
  • IP55
  • MED Approved
MED EU Certification icon MED Certification

5" 6W BS5839 Part 8 VA compliant metal cabinet speaker complete with ceramic terminal block and thermal fuse. 1st fit 2nd fit mounting arrangement, to allow full circuit test before final connection. Can be glanded for side entry or into the rear of the unit for discreet cabling. The speaker also has low profile for wall mounting safety.

Installation, Operation and Maintenance Procedure

  • Mount cabinet to wall/ceiling with 4 suitable screws.
  • If 70V, replace red cable with the green cable in the terminal.
  • Connect cable to terminal and fasten the front part to the cabinet with 2 provided screws.
  • For optimum performance, always use the correct voltage / power and operate within the frequency limits as stated.
  • Do not open loudspeaker when energized.
General

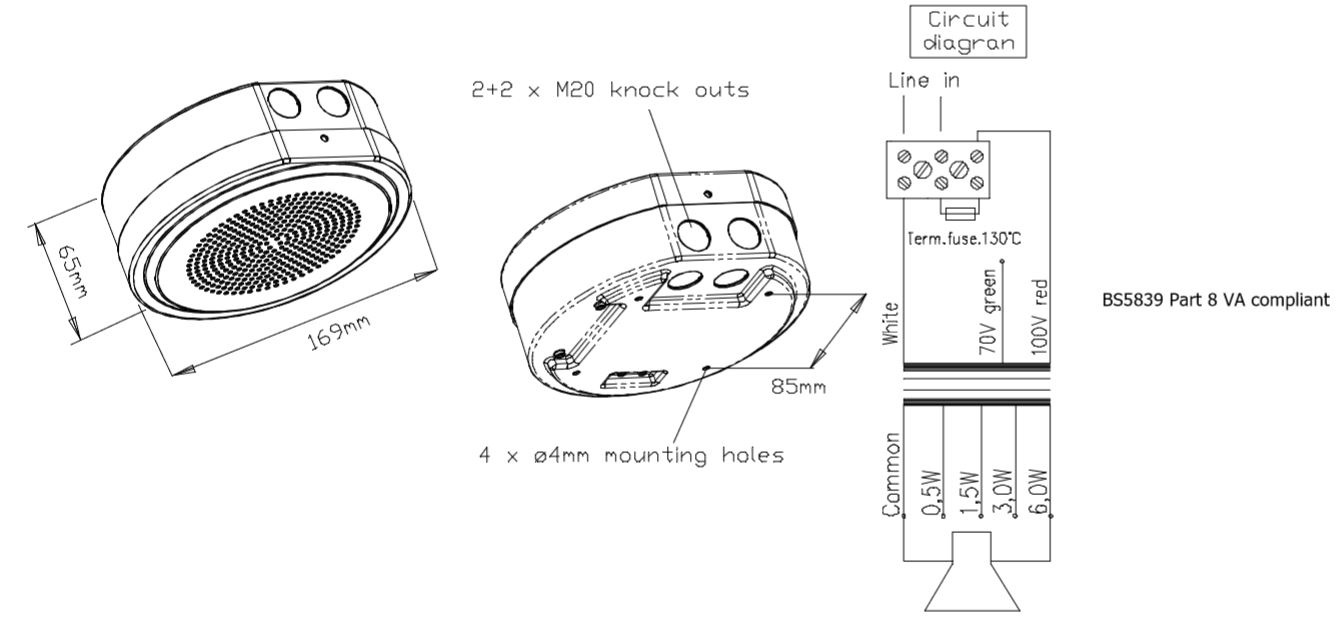

Dimesions (mm) Ø169 x D65
Material / Color Steel / White
Mounting Four screws
Termination Ceramic terminals
Weight 1,3 kg
Max. / min. amb. temp 90°C / -20°C
Rated / max. power 6 W / 6 W
SPL 1W/1m 90 dB
SPL rated power 97 dB
Effective freq. range 180 – 13000 Hz
Dispersion (-6dB) 1kHz / 4kHz 187° / 77°
Power tapping 0,5W, 1,5W, 3,0W, 6,0W
Cable inlet 2+2 M20 knock outs for cable gland
Fuse Term. fuse 130°C (for fuse variant)
IP rating IP55
Environmental Condition Protected

Date Name Category Size Document
18.09.2019 2340020016 SAFE-561IP(T) CAD 2D 473.74 KB Login to download
