SAFE-M6T

Item Number: 2340020009

Wall speaker, aluminium, 6W, 70/100V, IP56

6W metal vandal-proof IP56 rated cabinet speaker. This model is highly suitable in public areas where special precautions against destructive treatment are necessary.

  • Open the cabinet using the enclosed Allen key to loosen the screws on three sides of the cabinet.
  • Lead cable through the cable gland and connect to terminal 70V (white – green) or 100V (white – red).
  • Choose required power on the transformer.
  • Fasten the mounting plate to wall or ceiling by four screws.
  • Close the cabinet by fasten three screws on three sides of the cabinet.
  • For optimum performance, always use the correct voltage / power and operate within the frequency limits as stated.
  • Do not open loudspeaker when energized.
General
Dimension (W x H x D) 105 x 210 x 59 mm
Material/Colour Aluminium/ RAL9010 or RAL3000
Mounting 4screws
Termination Inside screw terminal
Weight 1.35 kg
IP-rating (UL Equivalent) IP56 (terminal chamber)
Max. / min. amb. temp 100°C / -40°C
Rated / max. power 6W / 10 W

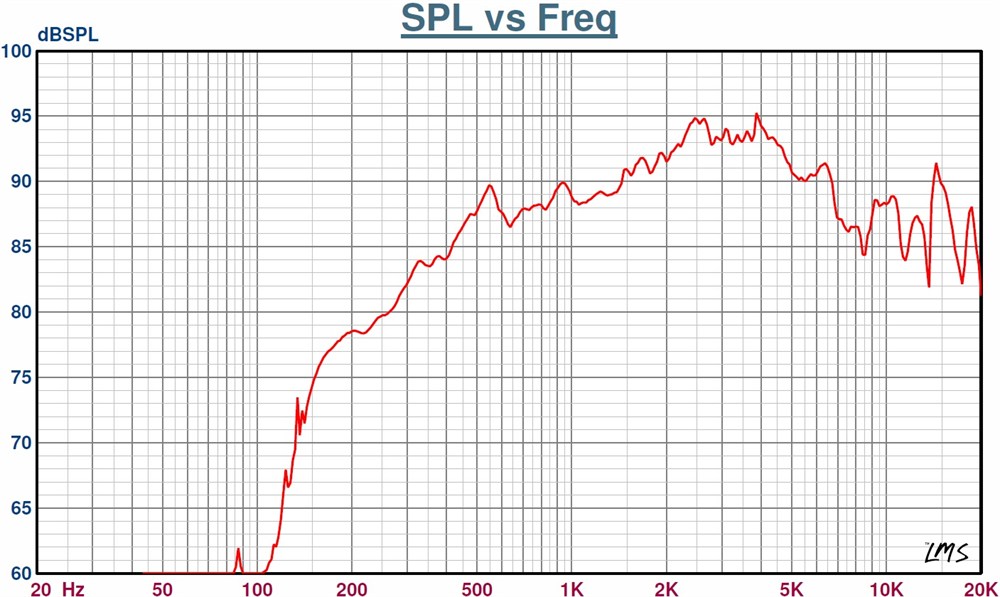

SPL 1W/1m 89 db
SPL rated power 97 db
Effective freq. range 160- 20000 Hz
Dispersion (-6dB) 1kHz / 4kHz 165°C / 110°C
Secondary nominal tappings 6,0 W - 3,0W - 1,5W - 0,5W
Environmental Condition Exposed
Item number Description
9011708015 SAFE-M6TF-VC Wall speaker, 6W, IP56, white, w/vol.contr.

SAFE-M6T

Date Name Category Size Document
23.06.2023 MD-SDoC-2340020009-IHM-8003-41770-126502 Declaration 72.18 KB Login to download
18.09.2019 2340020009_SAFE-M6T.zip CAD 2D 343.41 KB Login to download
