SBP-300WMS - wall mount bracket

SBP-300WMS - wall mount bracket

Item Number: 2310111075

Wall mount bracket for XNP-6320, SST.

  • Stainless steel material
  • Wall mount bracket
  • for XNP-6320

This wall mount bracket is in stainless steel for harsh environments to prevent corrosion and paint chipping. The wall mount bracket is for use with our XNP-6320HS PTZ Dome Camera

NOTICE

  • The bracket should be installed on the flat surface of a wall
  • The wall must be capable of supporting more than 3 times the total capacity of the camera and the bracket.
Specification
Model SBP-300WMS
Materials Stainless steel
Mounting Wall mount
Pipe Thread 1 1/2" PF

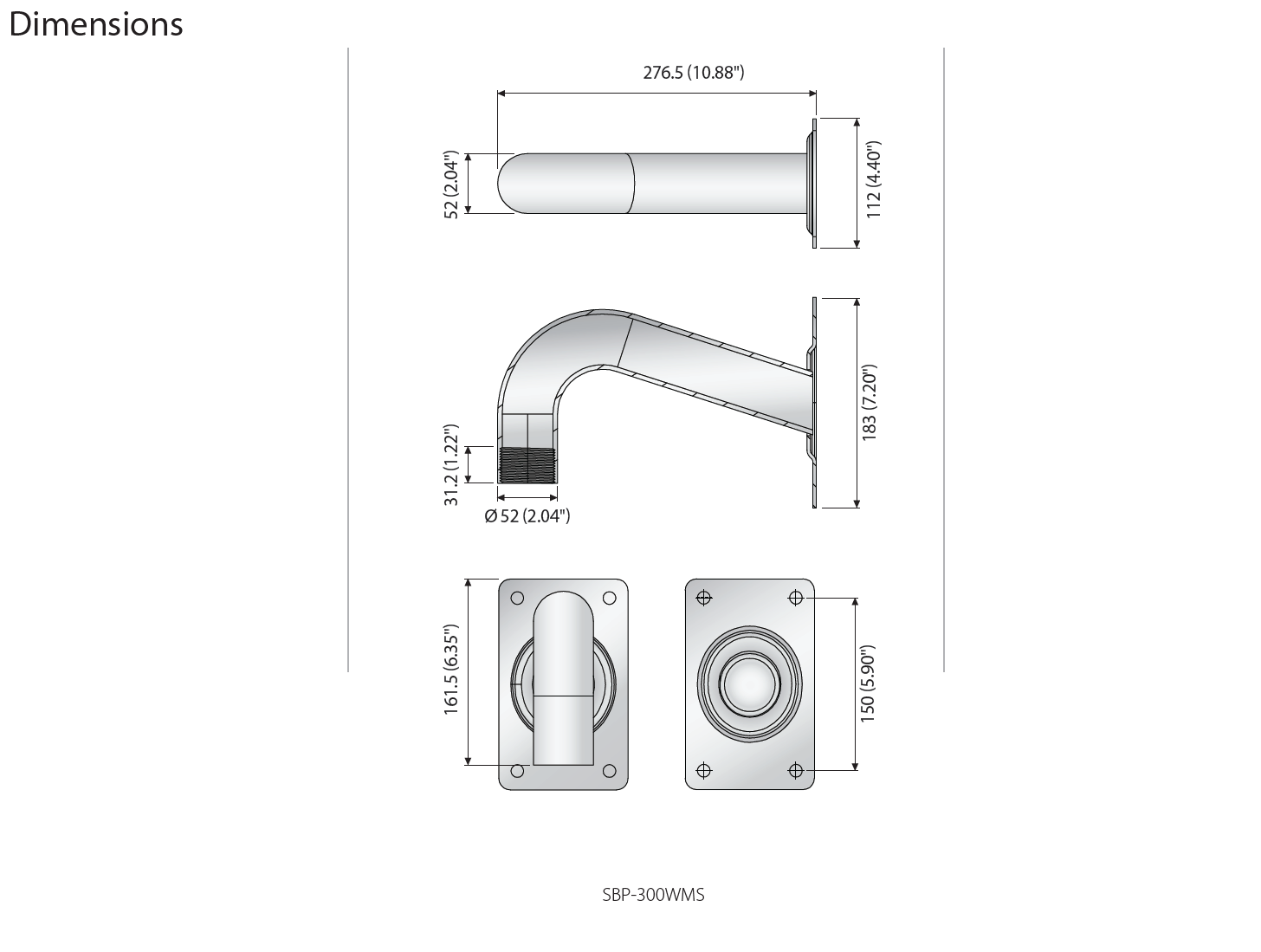

Dimension 183 X 112 X 276.5 mm (7.20" x 4.41" x 10.89")
Weight 2 kg (4.41 lb)
