SMIII-PA

SMIII-PA

Item Number: 3005000038

PA telephone interface (Trunk-line needed per PA-line)

  • Trunk input / Audio output
  • Rail mounting NS-35
  • 24 VDC input
  • For connection to telephone exchanges
GENERAL
Dimension (WxH) 45 x 70 mm
Mounting Rail mounting NS-35
Housing ABS, PCB
Operation voltage 24 VDC
Terminals 2.5 mm2
Weight 0.1 kg
Environmental Condition Protected

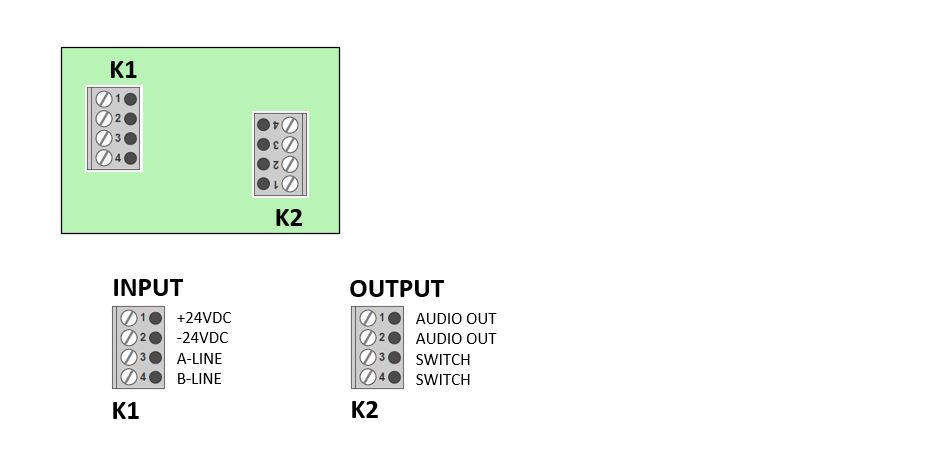

Terminal Position Description
INPUT K1 1 + 24VDC
2 - 24 VDC
3 A - LINE
4 B - LINE
OUTPUT K2 1 AUDIO OUT
2 AUDIO OUT
3 SWITCH
4 SWITCH

Date Name Category Size Document
17.07.2023 MD-SDoC-3005000038-IHM-8003-41808-10325 Declaration 72.18 KB Login to download
