SST Junction Box for OC-series cameras Image

SST 316L Junction Box for OC-series Cameras

Item Number: 2310111172

Junction box

  • Stainless steel with anticorrosive coating
  • Silver moon gray appearance
  • Suitable for indoor and outdoor installation

The SST 316L Junction box for OC-series cameras should be installed on a flat surface and waterproof rubber is needed for outdoor application. The wall should be able to support at least 3 times the total weight of the camera and the accessories. The maximum load capacity of the junction box is 3 kg.

Parameters
Appearance Silver Moon Gray
Application Suitable for indoor and outdoor application
Material Stainless Steel
Dimension 229 mm x 210 mm x 135 mm
Weight Approx. 1981 g

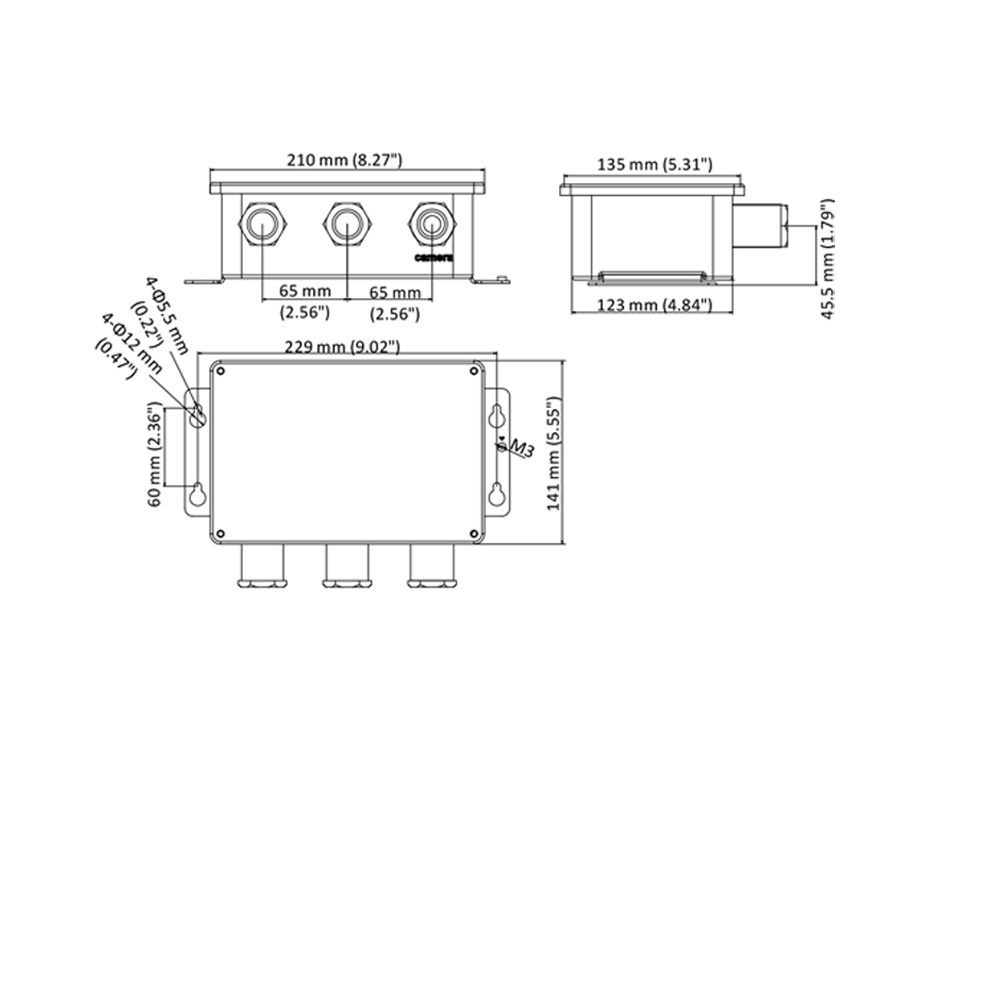

Dimensional Drawing SST 316L Junction Box for OC Series Cameras

Date Name Category Size Document
30.04.2024 MD-SDoC-2310111172-IHM-8003-56596-128766 Declaration 71.86 KB Login to download
