STB-6GN

Item Number: 3005020063

Parallel station This product has been replaced by Phontech CIS Talk-Back System

This product will be replaced by the equivalent Phontech solution, but Zenitel will honor prior commitments given to the market. Therefore, we will continue to provide expansion and spare-part service for this product.

  • Parallel station with gooseneck microphone for indoor use
  • Parallel microphone / loudspeaker for ETB and CTB operator panels
  • Flush or bulkhead mounting
  • Wall mounting with back box
General

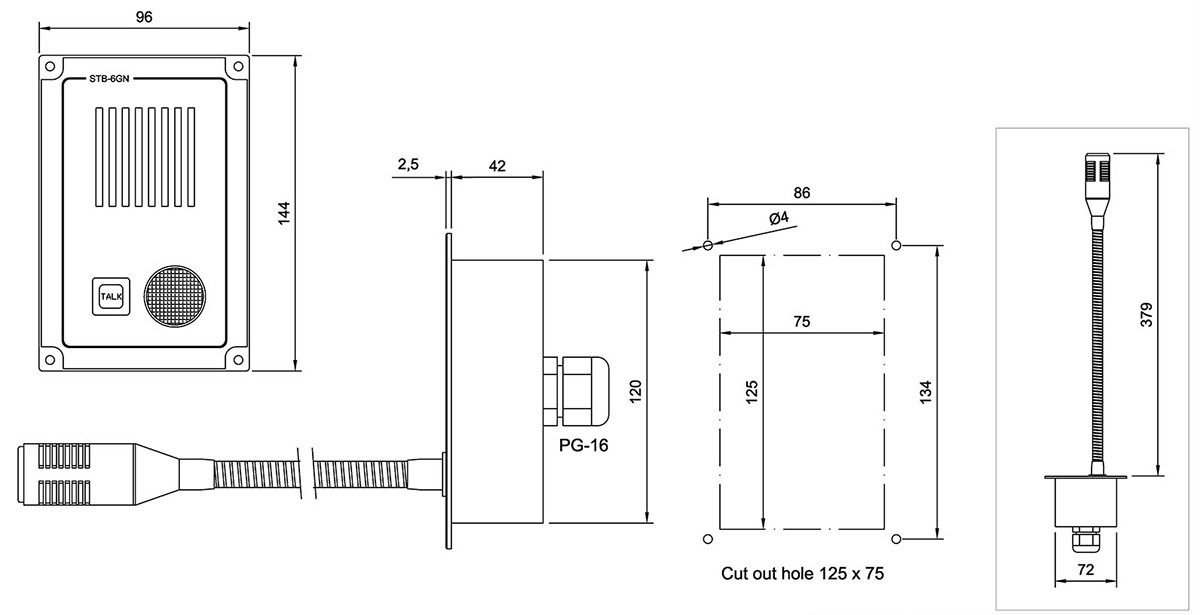

Dimensions (mm) 144W x 96H x 42D
Mounting 4 x 4mm screws
Weight Approx. 0.850 kg
Housing Aluminium
Colour Black
IP-rating IP-22
Cable entry PG-16
Connections Screw terminal
Loudspeaker 3 W
Temperature operating -15 to +55 °C

STB-6GN

ST Box

STBOKS

Wall Mount Backbox for STB-6 & STB-6GN

Date Name Category Size Document
11.09.2023 MD-SDoC-3005020063-IHM-8003-46266-10275.xlsx Declaration 72.17 KB Login to download
18.09.2019 3005020063 STB-6GN CAD 2D 95.01 KB Login to download
9.11.2017 3005020063_STB-6GN_CE.PDF Declaration 313.75 KB Download
