TA-33 On-wall back box

TA-33

Item Number: 1008140330

Turbine Extended On-wall Backbox

Backbox for Wall mouting TEIV+ Intercoms

IP66 IP66
IK10 IK10

Cast Aluminium surface-mount Backbox



MECHANICAL

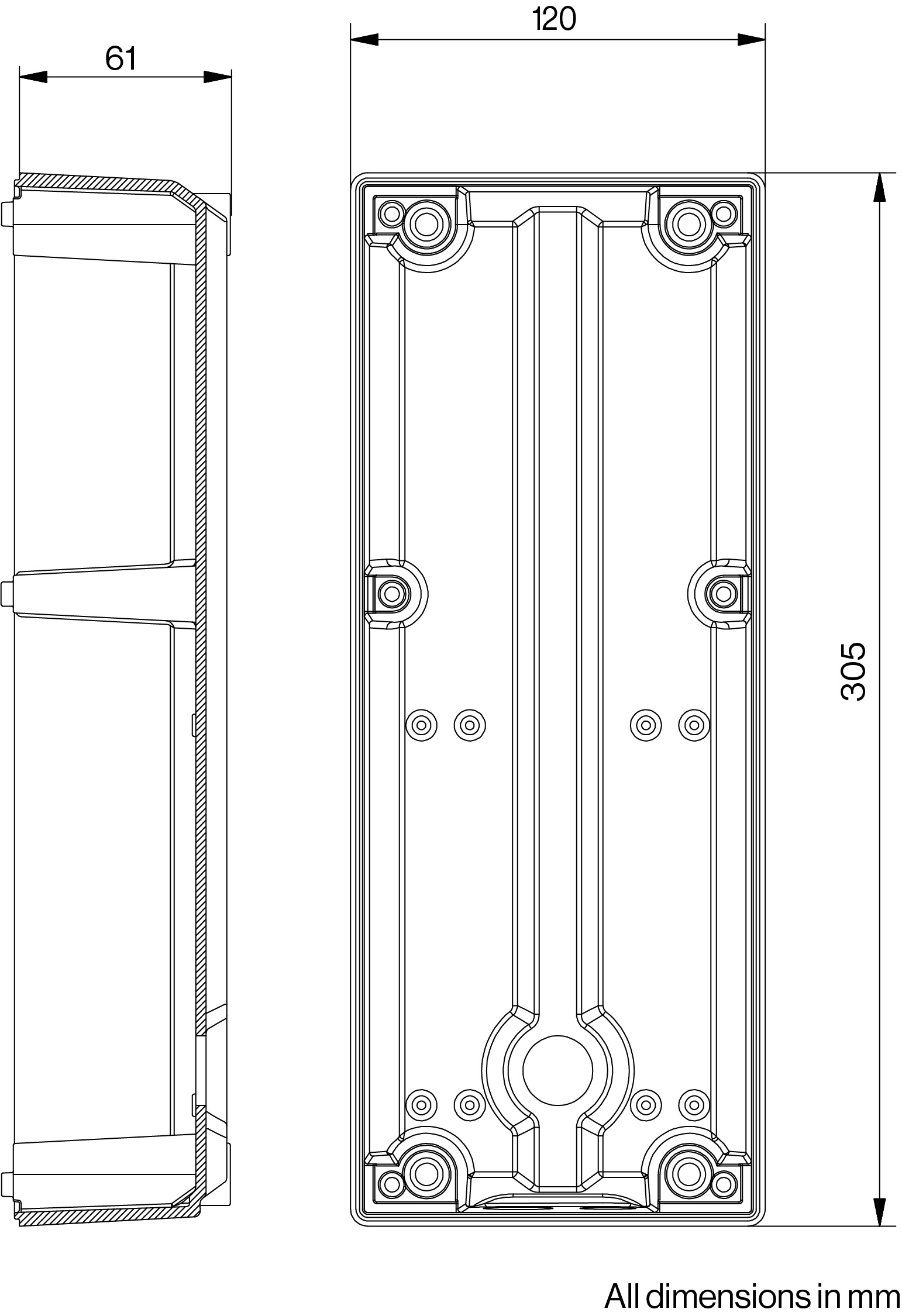

Size (WxHxD): 120 x 305 x 62mm Wt: 1.05kg
Ingress protection rating IP-66, tested according to EN 60529
Impact protection rating IK 10, tested according to EN 62262
Material Aluminum alloy - AlSi12 (EN AB-44200,DIN230), painted
Finish IGP-DURA®pol 681T, Grey RAL 9007. Custom colors possible*
*Please contact our local sales office for details.







TA-34 Flush-mount back box

TA-34

Turbine Extended Flushmount Backbox

No documents available for this product.
