Turbine Mini Intercom - 2 Buttons

TMIS-4

Item Number: 1008116040

Turbine Mini Intercom - 2 Buttons

  • Background noise cancellation
  • Built to last with robust die-cast aluminum frame
  • Supports wide set of IP and networking standards
  • ONVIF Compatible
  • White thermoplastic front plate with 2 buttons
  • Ideal for Building Security and Public Environments
Avaya Certified Avaya Certified
UL Mark UL Certified Intercom
Turbine
HD Voice HD Voice
Automatic Gain Control Automatic Gain Control
Active Noise Cancelling Active Noise Cancelling

The TMIS-4 IP Turbine Mini intercom station is robust and designed for indoor use. This station is typically used as a communication, information or emergency point and connects directly to the IP network. This makes it easy to deploy anywhere and at any distance.

All IP stations in the Turbine series utilize the latest technology to create unparalleled audio quality. Some of the many features include: HD voice quality, Open Duplex, Active Noise Cancellation, MEMS microphone, and a Class D amplifier.

These features, in conjunction with our many decades-long experience with acoustic technology are only a few of the many factors that contribute to the superior audio quality of our products.

AUDIO
SPL peak power at 1m in half and open duplex 90 dB
Noise cancelling - suppression of musical noise Yes
Noise cancelling - suppression of static noise Yes
Codecs G.711, G.722, G.729
Frequency range, G.722 Codec 200 Hz – 7000 Hz
Audio technology Modes: Full open duplex, switched open duplex,
Adaptive jitter buffer
Custom Ringing Tone
Audio Mixing – Conversation and Group Call
Sound Level Detection / scream alarm (in AlphaCom mode)
Automatic gain control (microphone)
Internal speaker amplifier 10 W Class D
Internal speaker 1 W
Microphone technology Digital MEMS, omnidirectional microphone
Automatic Volume Control (AVC) Yes
Acoustic Echo Cancellation (AEC) Yes
HARDWARE
Ethernet connector 1 x RJ45
All other connectors Tool less, spring loaded, vibration proof terminals
General inputs and outputs 6 (configurable)
Outputs 12mA as LED drivers
Change-over relay (NO+NC+COM) SELV
Power options PoE and or external power supply
PoE (power over Ethernet) IEEE 802.3af standard, Class 0 (0.44W to 12.95 W)
External power supply 24 VDC (16 – 48 V)
Power consumption 2.8 W
Audio line out / Induction loop signal 0 dBV
Button backlight LED
Call indication Icons/colors for hearing impaired
CONSTRUCTION
Dimensions (HxWxD) 117 x 117 x 41.1 mm
Dimensions after flush mount 117 x 117 x 7.6 mm
Weight 0.3 kg
Button material 3 mm / 0.12” Polycarbonate (transparent)
Faceplate material 2 mm / 0.12” PMMA, colour printed on back side
Base / frame material 3 mm / 0.12” Aluminum alloy - A413.0, AlSi12Fe, painted
Electronics cover material Polycarbonate (translucent)
Loudspeaker poke protection, large diameter objects Thermoplastic faceplate with machined grille
Loudspeaker poke protection, small diameter objects Stainless steel mesh, acoustically transparent
NETWORKING & PROTOCOLS
Protocols IPv4 (with DiffServ), SIP, TCP, UDP, HTTPS, TFTP, RTP, SRTP, DHCP, SNMP, ONVIF, CCoIP® , NTP
LAN protocols Power over Ethernet (IEEE 802.3 a-f), Network Access Control (IEEE 802.1x)
Management and operation HTTP/HTTPS (Web configuration), DHCP and static IP + IC-EDGE, Remote software upgrade, Centralized monitoring
Advanced supervision functions E.g network test, tone test, status reports (only in AlphaCom)
SIP Support RFC 3261 (SIP base standard), RFC 3515 (SIP refer), RFC 2976 (SIP info), SIP using TLS, RFC 5630 SIPS URI scheme
DTMF Support RFC 2833, 2976 (SIP info)
ENVIRONMENT & COMPLIANCES
Ingress Protection rating IP-42
UV-resistant Yes
Operating temperature range -25° to 70° C / -13° to 158 ° F
Storage temperature range -25° to 70° C / -13° to 158 ° F
Relative humidity < 95% non-condensing
EMC CE and FCC part 15
Certifications UL 62368-1, EN 62368-1
Compliances EN 61000-6-1, EN 61000-6-3
OTHER SPECIFICATIONS
Country of manufacture Poland
IP adress information Speaks IP address after system boot
Warranty 2 Years standard warranty, extendible up to total of 5 years (additional fee)

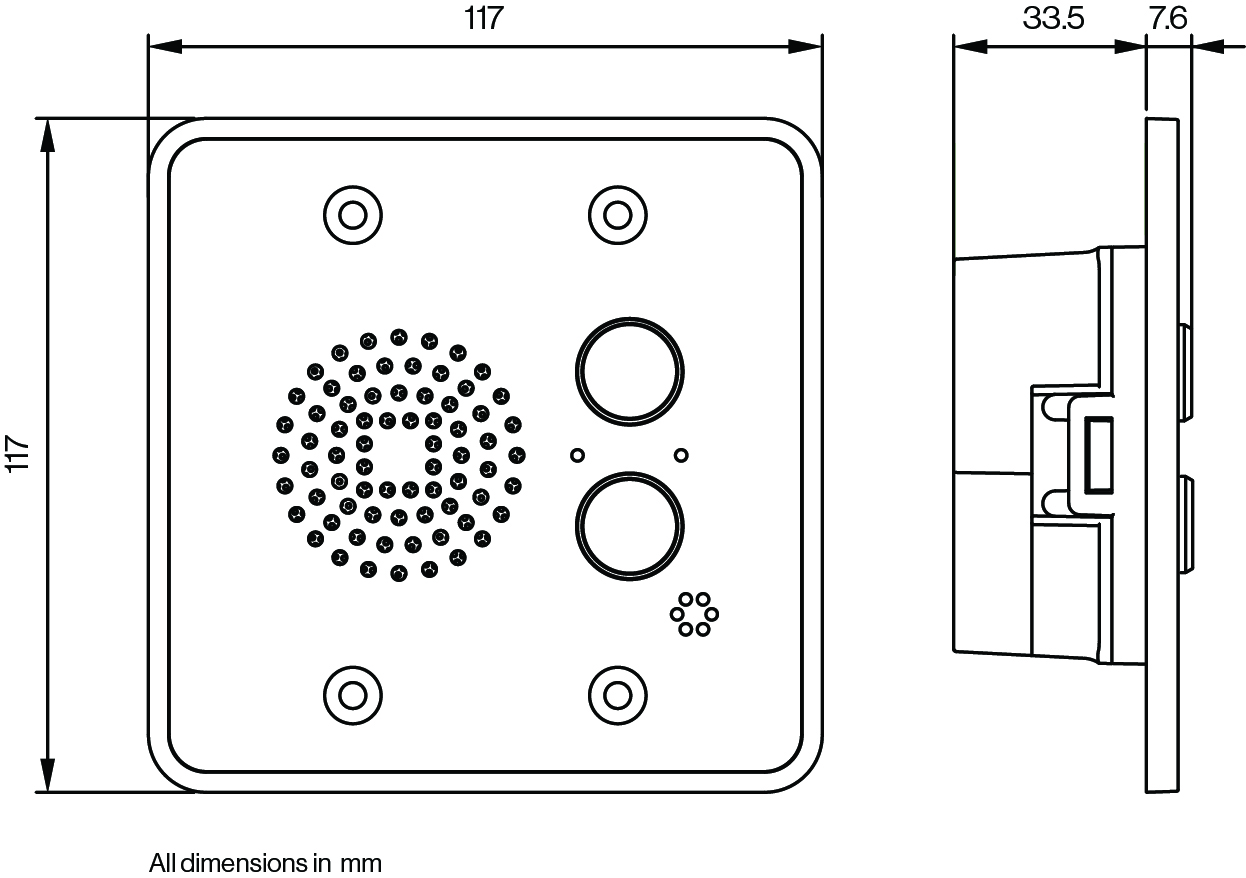

TMIS-4 Dimensions

TA-2

US 2-Gang 3½" Deep Backbox

TA-3

2½" Deep Flushmount Backbox for Turbine Compact &amp; &amp; Mini

TA-13

Turbine Mini On-Wall Back Box White
