TT-1020

Item Number: 2131000700

Tunnel Horn Loudspeaker

  • Tunnel horn loudspeaker ideal for road and long projection applications
  • Intelligibility at very high output levels
  • Consistent controlled directivity and low distortion
  • High efficiency and high power capacity
  • Highly resistant to harsh environments

The TT-1020 tunnel horn loudspeaker  is designed to provide consistent intelligible emergency notification for enclosed linear spaces and other long projection applications. Precise pattern control and very narrow coverage angles deliver outstanding performance in highly reverberant environments such as road tunnels.

To meet the performance goals for long projection emergency notification, the system utilizes a single high power purpose-built MF transducer, ensuring accurate signal reproduction and very low distortion. Our proprietary 2" (51 mm) exit compression driver delivers high intelligibility at elevated sound pressure levels necessary to overcome the high ambient noise and reflected acoustic conditions. This makes  the TT-1020 tunnel horn loudspeaker  ideal for road or rolling stock tunnels and similar acoustically challenging environments. The large-format waveguide ensures precision directivity control throughout the entire voice band.

Both the driver's inert materials composition and horn's fiberglass construction make the entire device resistant to potentially caustic tunnel-type environments. All external hardware and mounting brackets are 316 stainless steel.

TT1020 Frequency Response

Audio
Operating mode 100V
Operating range 300 Hz to 9 kHz
Nominal beamwidth (H x V) 40° x 30° (1000 Hz to 8 kHz)
Transducers 24 mm x 51 mm exit compression, non metallic diaphragm ferrofluid-cooled driver
Transformer taps 50 watt, 100 watt
Sensitivity (1W / 1m) 114 dB nominal, 113 dB with EQ
Max power output 134 dB nominal, 133 dB with EQ
Construction

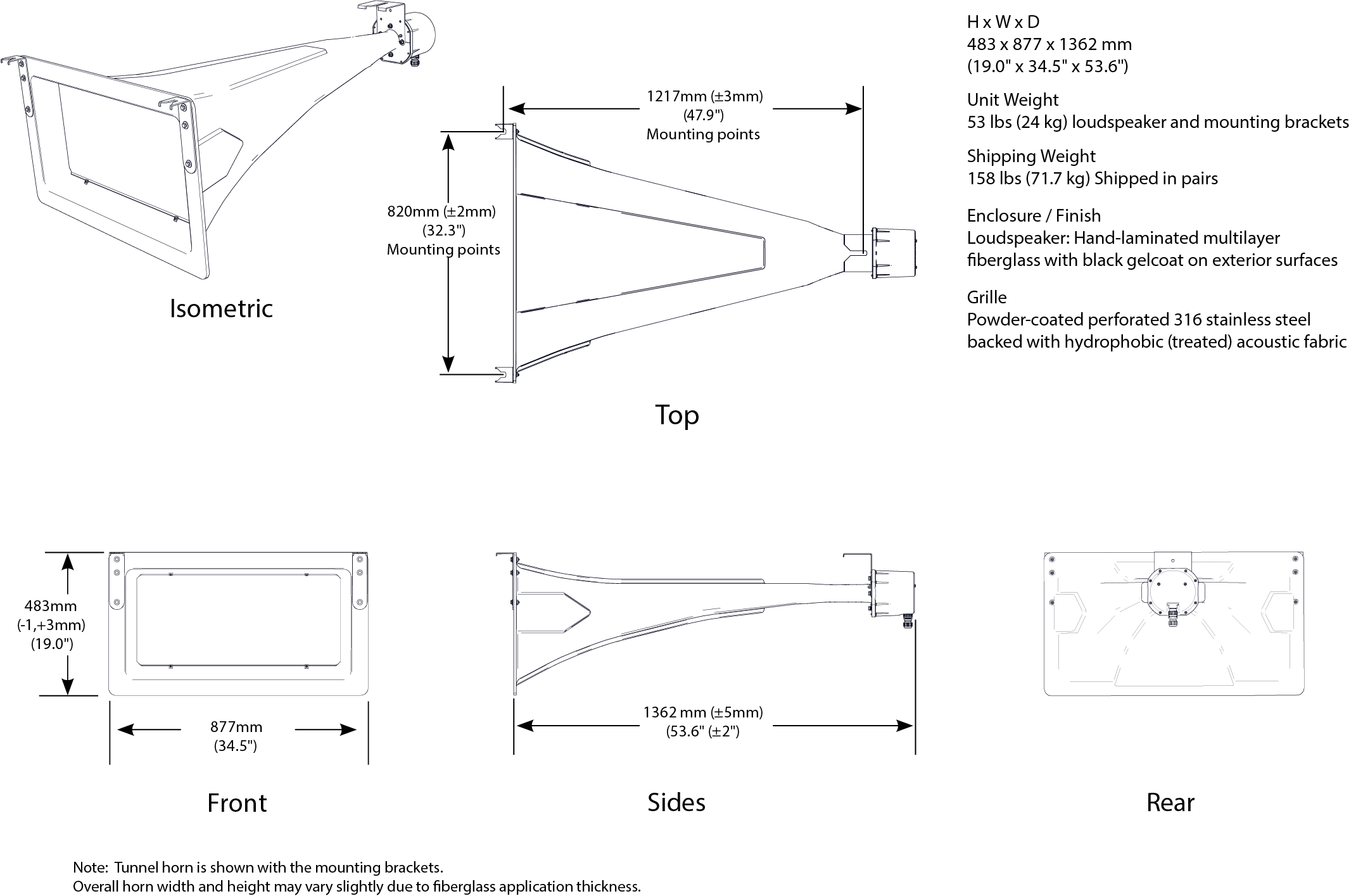

Dimension HxWxD 483 x 876 x 1370 mm (19.0" x 34.5" x 53.9")
Weight 24 kg (53 lbs) including the mounting brackets
Material Hand-laminated multilayer fiberglass with black gelcoat on exterior surfaces
IP grade IP65 per IEC 60529
Operating Temperature -5°C – 55°C [23°F – 131°F]
Included accessories Mounting bracket (2 front and 1 in back).
