UPS-INF-230R

Item Number: 2970000233

Rack mount UPS, 2700W/4min, 230V, w/rails & relay card

  • 3000 VA UPS
  • 9 IEC outlets (4 standard outlets + 1 16A outlet + 4 programmable outlets)
  • Includes rack mounting rails
  • Includes relay card
  • Minimum cabinet depth: 800mm

The UPS-INF-230R is a high-performance, rack-mounted UPS designed to ensure seamless power protection for critical server systems. Delivering 2700W of power for up to 4 minutes at 230V, this UPS is ideal for maintaining IPTV, LAN, and CCTV systems during the switch between main and emergency ship power supplies.

Equipped with rack mounting rails and a relay card for easy integration and enhanced control, the UPS-INF-230R provides dependable power continuity, safeguarding your essential maritime infrastructure.

General
Power (VA) 3000
Power (W) 2700
Phases Single-phase/Single-phase
Format Versatile rack/tower
Input Nominal Voltage (VAC) 208/220/230/240 VAC
Input Frequency 60/50 Hz (autodetection)
Output Voltage 208/220/230/240 VAC
Output Frequency range 50 Hz or 60 Hz +/- 1 Hz
Heat dissipation max (100% load / battery mode) 835.61
Physical characteristics
Physical characteristics
Product length (mm) 630
Product height (mm) 88
Product width (mm) 438
Product depth (mm) 630
Packed gross weight (kg) 31 kg
Runtime
Load (W) Load (%) Runtime (H:M)
270W 10% 1:05
540W 20% 0:29
675W 25% 0:22
810W 30% 0:19
1080W 40% 0:14
1350W 50% 0:12
1620W 60% 0:09
1890W 70% 0:08
2025W 75% 0:07
2160W 80% 0:06
2430W 90% 0:05
2700W 100% 0:04

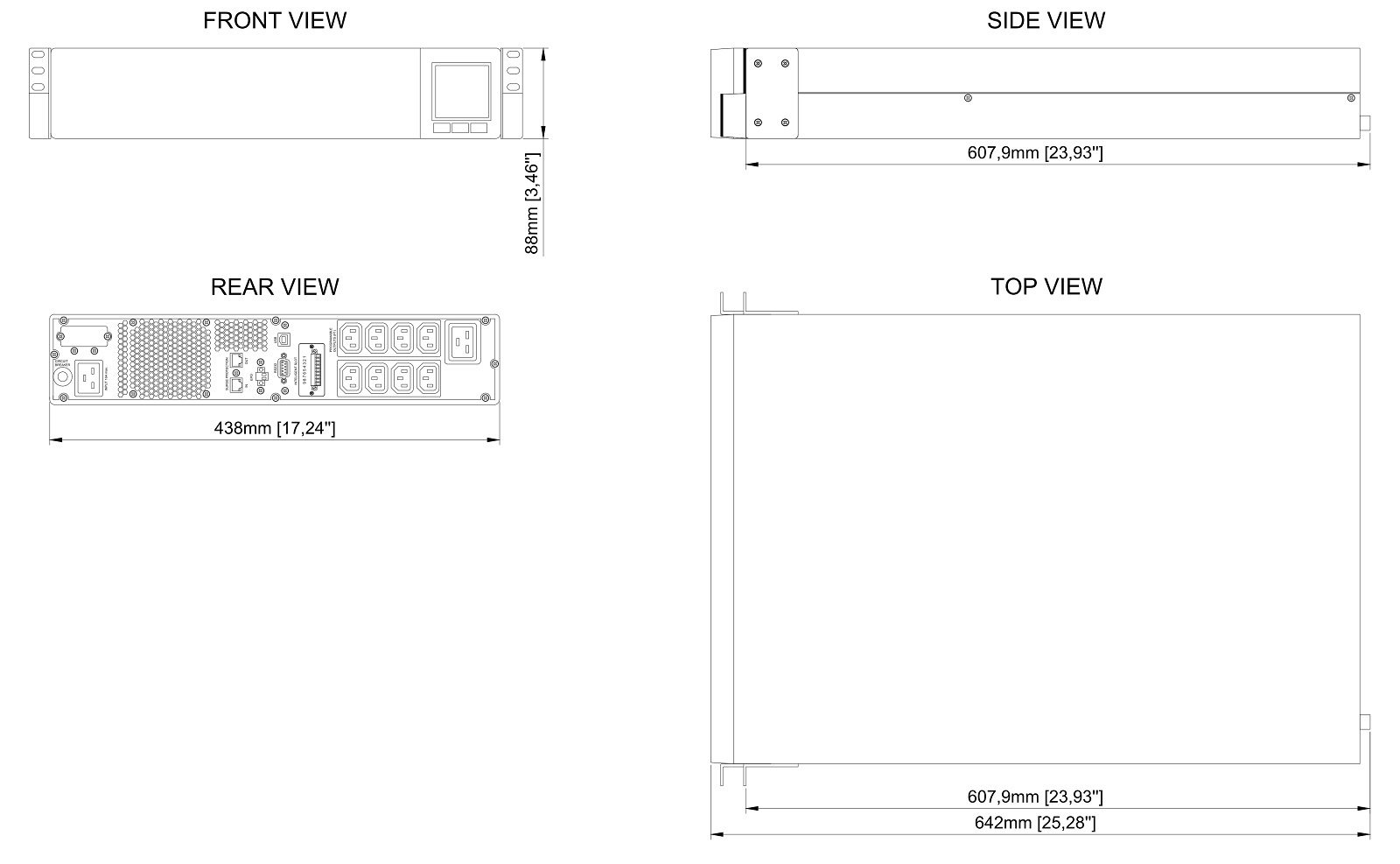

2970000233_UPS-INF-230R_DimDraw

Date Name Category Size Document
31.10.2024 UPS-INF-230R User Manual CAD 2D 5.61 MB Login to download
17.09.2024 2970000233 - UPS-INF-230R - Dimensional Drawing CAD 2D 353.12 KB Login to download
