UPS-NRT4-B060

Item Number: 1015883

External Battery Module for 5 kVA and 6 kVA UPS Systems, with rail kit

  • Compatible with UPS-NRT4-060K unit
  • Modular, hot-swappable design for easy maintenance
  • EBS (Expert Battery System) optimizes back-up time availability and battery life
  • Convertible rack/tower installation
  • OBM (Optimized Battery Management) for extended service life



EBM modules are essential on maritime vessels, offshore platforms, and energy facilities where continuous power to critical communication and control systems is vital. They extend UPS runtime for equipment such as PA/GA, intercom, IP telephony, navigation consoles, monitoring systems, and safety infrastructure.

Integrated EBS and OBM systems intelligently manage battery performance to maximize lifespan, maintain stable output during voltage fluctuations, and ensure reliable operation in demanding marine and offshore environments.

General
Nominal battery voltage 192 VDC
Battery chemistry type Sealed lead-acid maintenance free
Battery capacity (Ah) 7 Ah
Number of battery blocks and their configuration 16 x 12 V (Series connection)
Compatible UPS model UPS-NRT4-060K
Dimensions W x D x H 438 x 600 x 85.5 mm
Weight 40.8 kg
IP Rating IP20



Date Name Category Size Document
MD-SDoC-1015883-IHM-8003-70767-209862 Declaration 53.84 KB Download

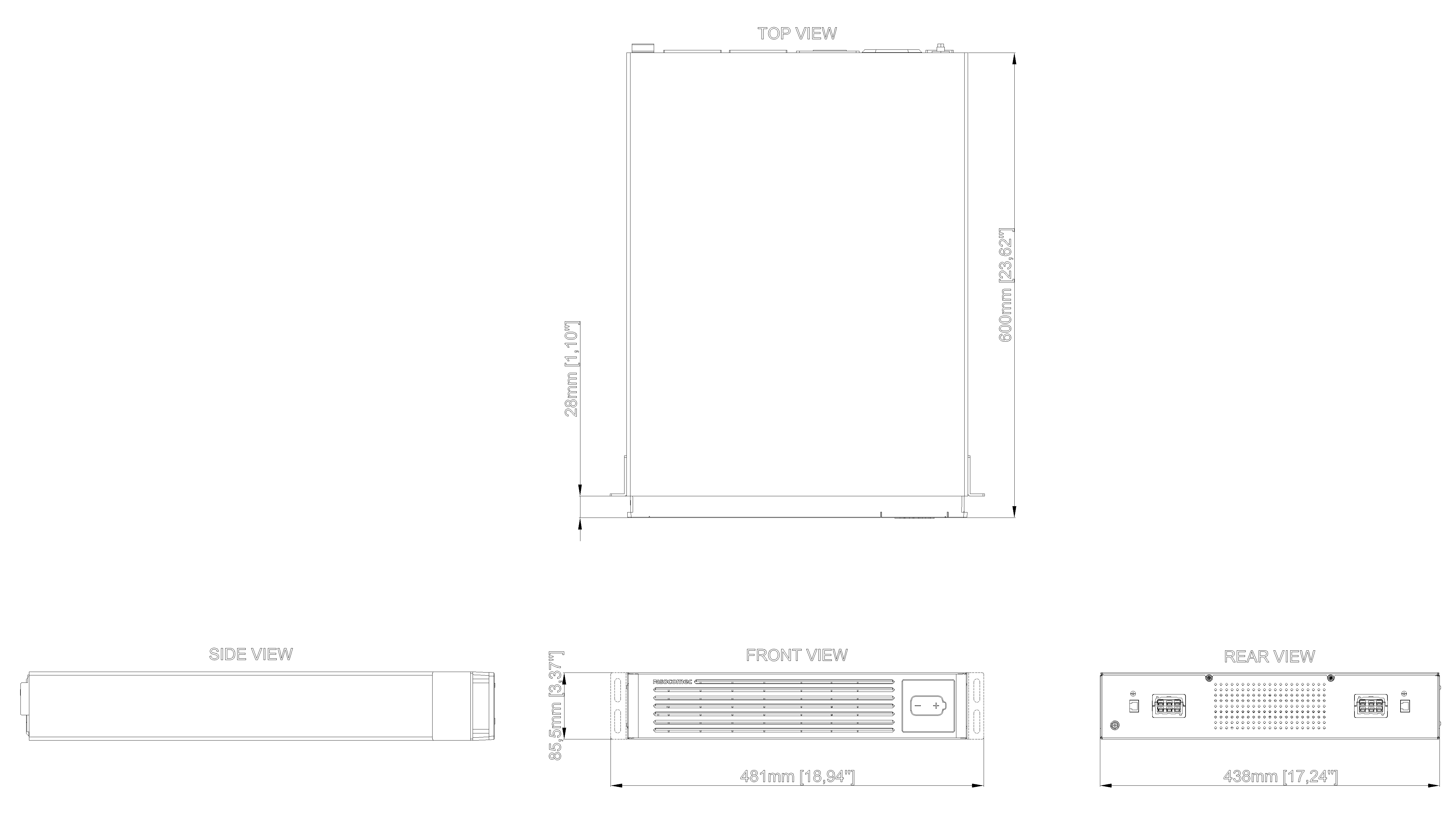

1015883_UPS-NRT4-B060_Dimensional_Drawing CAD 2D 687.45 KB Login to download
NETYS-RT4-5-10-KVA_INSTALLATION-AND-OPERATING-MANUAL Manual 7.44 MB Download
NETYS-RT-Single-phase-UPS-racktower_CATALOGUE-PAGES Catalog 1.1 MB Download
NETYS-RT4_TECHNICAL-GUIDE Manual 2.82 MB Download
