UPS-NRT4-060K

UPS-NRT4-060K

Item Number: 1015882

Online UPS, 6 kVA / 6000 W, 230 V, with rail kit

  • Online double-conversion UPS with pure sinewave output
  • Full digital control and output power factor = 1
  • Wide input voltage range (110–276 VAC)
  • Rack/tower convertible with dot-matrix LCD display
  • Multiple communication interfaces (USB, RS232, dry contacts, intelligent slot)
  • Supports EBM modules for extended backup time
  • Parallel redundant function (up to 3 units, 5/10 kVA only)



The UPS-NRT4-060K is designed to provide continuous, high-quality power protection for critical onboard equipment. Its online double-conversion design ensures stable output independent of fluctuations in vessel or platform power systems.
This UPS is ideal for maritime and offshore applications such as PAGA controllers, intercom systems, IP telephony, navigation equipment, monitoring systems, and critical automation. With flexible communication ports, integrated battery management, and support for extended battery modules, it delivers reliable runtime and safe shutdown capabilities in demanding marine and energy environments.

UPS-NRT4-060K Runtime overview:

  • 1400 W / 30 min → with one additional UPS-NRT4-B060 battery module
  • 2750 W / 30 min → with two additional UPS-NRT4-B060 battery modules
  • 4100 W / 30 min → with three additional UPS-NRT4-B060 battery modules
  • 5600 W / 30 min → with four additional UPS-NRT4-B060 battery modules



General
Sn 6000 VA
Pn 6000 W
Architecture Online duble conversion VFI with input PFC and automatic bypass
Input Rated Voltage 230 V (1ph)
Input Voltage Tolerance 110 V ÷ 276 V; (160 V ÷ 276 V @100% load)
Input Power factor / THDI > 0.99 / < 3% (R load) & < 5% (RCD load)
Output Rated Voltage 230 V (1ph)
Output Voltage Tolerance selectable 200/208/220/230/240 V ±1%
Output Frequency Tolerance ± 0,1 Hz
Output Power factor 1
Efficiency Up to 95.6% online mode
Overload capability Up to 105% continuously; 125% x 10 min.; 150% x 30 sec; > 150% 500 ms
UPS Cabinet, Dimensions W x D x H 438 x 570 x 86.3 mm
UPS Cabinet, Weight 13.7 kg
External Battery Module, Dimensions W x D x H 438 x 600 x 85.5 mm
External Battery Module, Weight 40.8 kg
IP Rating IP20
1015882_UPS-NRT4-060K
Date Name Category Size Document
MD-SDoC-1015882-IHM-8003-70767-209861 Declaration 53.84 KB Download

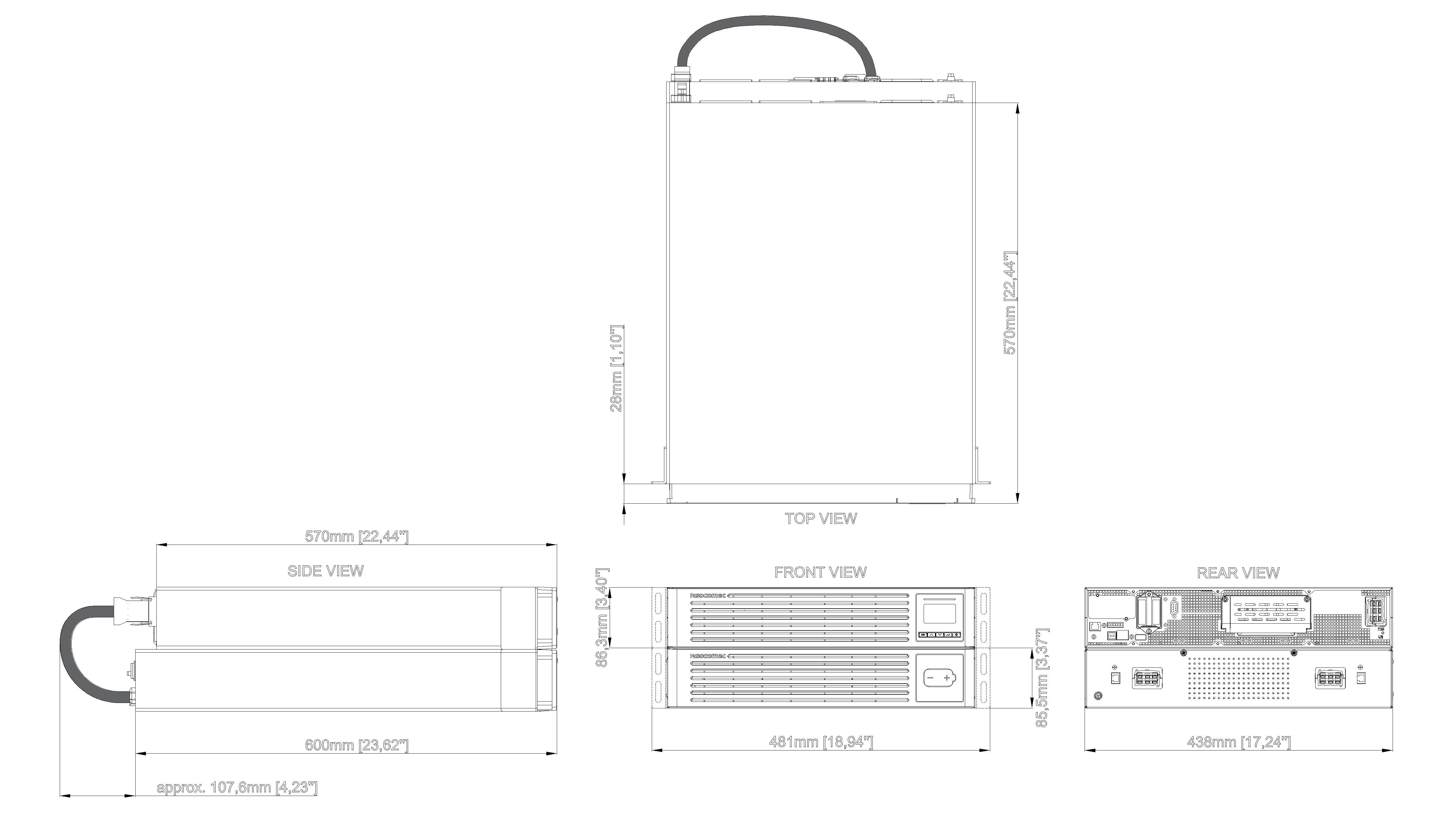

1015882_UPS-NRT4-060K_Dimensional_Drawing CAD 2D 1.05 MB Login to download
netys-rt4-ups-6-kva-230v-nrt4-060k Datasheet 7.13 MB Download
NETYS-RT4---5-TO-10-KVA_Product_Environmental_Profile Declaration 759.73 KB Download
NETYS-RT4-5-10-KVA_INSTALLATION-AND-OPERATING-MANUAL Manual 7.44 MB Download
NETYS-RT-Single-phase-UPS-racktower_CATALOGUE-PAGES Catalog 1.1 MB Download
NETYS-RT4_TECHNICAL-GUIDE Manual 2.82 MB Download
