UPS-NRT4-U020B

UPS-NRT4-U020B

Item Number: 1015884

Online UPS, 2kVA, 2000W/7min, 230V, w/rails

  • Online double-conversion UPS with pure sinewave output
  • Full digital control and output power factor = 1
  • Wide input voltage range (110–300 VAC)
  • Rack/tower convertible with dot-matrix LCD display
  • Multiple communication interfaces (USB, RS232, dry contacts, intelligent slot)
  • Supports EBM modules for extended backup time



The UPS-NRT4-U020B is designed to provide continuous, high-quality power protection for critical onboard equipment. Its online double-conversion design ensures stable output independent of fluctuations in vessel or platform power systems.
This UPS is ideal for maritime and offshore applications such as PAGA controllers, intercom systems, IP telephony, navigation equipment, monitoring systems, and critical automation. With flexible communication ports, integrated battery management, and support for extended battery modules, it delivers reliable runtime and safe shutdown capabilities in demanding marine and energy environments.

UPS-NRT4-U020B Runtime overview:

  • 2000 W / 7 min → no additional battery module
  • 1900 W / 31 min → with one additional UPS-NRT4-B030 battery module
  • 2000 W / 54 min → with two additional UPS-NRT4-B030 battery modules
    • (Note: An additional rail kit is required for this combination)
General
Sn 2000 VA
Pn 2000 W
Architecture Online duble conversion VFI with input PFC and automatic bypass
Input Rated Voltage 230 V (1ph)
Input Voltage Tolerance 110 V ÷ 300 V ; (160 V ÷ 300 V @100% load)
Input Power factor / THDI > 0.99 / < 5%
Output Rated Voltage 230 V (1ph)
Output Voltage Tolerance selectable 200/208/220/230/240 V ±1%
Output Frequency Tolerance ± 0,1 Hz
Output Power factor 1
Efficiency Up to 94.1% online mode
Overload capability Up to 105% continuously; 125% x 5 min; 150% x 30 sec
Dimensions W x D x H 438 x 600 x 85.5 mm
Weight 25.6 kg
IP Rating IP20
1015884_UPS-NRT4-U020B



test

UPS-NRT4-U010B

Online UPS, 1kVA, 1000W/7min, 230V, w/rails

Item Number: 1016208

UPS-NRT4-U015B

UPS-NRT4-U015B

Online UPS, 1.5kVA, 1500W/3min, 230V, w/rails

Item Number: 1016209

Date Name Category Size Document
MD-SDoC-1015884-IHM-8003-70767-209859 Declaration 53.84 KB Download
netys-rt4-ups-2-kva-230v-nrt4-u020b Datasheet 5.97 MB Download

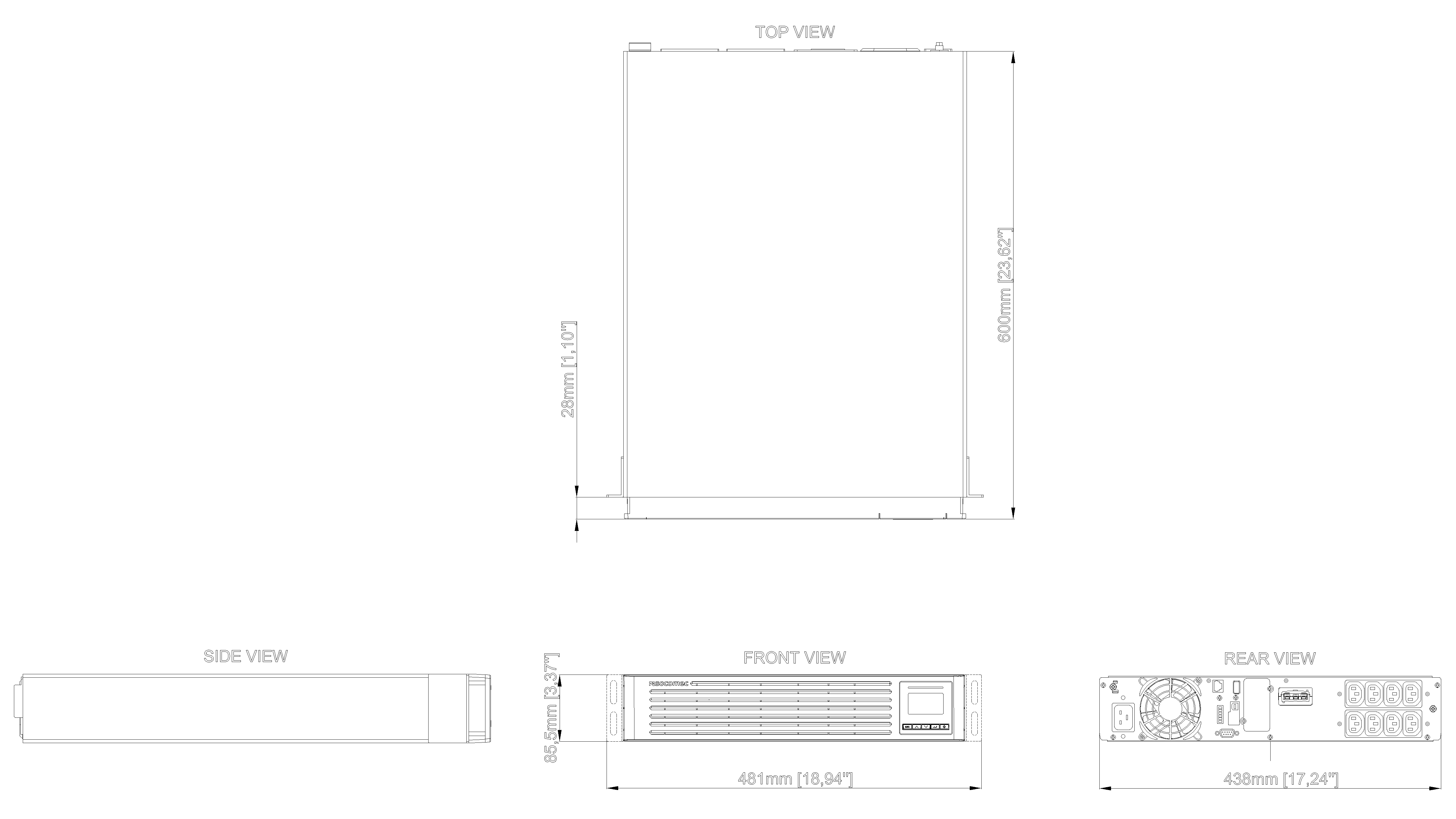

1015884_UPS-NRT4-U020B_Dimensional_Drawing CAD 2D 699.61 KB Login to download
NETYS-RT-Single-phase-UPS-racktower_CATALOGUE-PAGES Catalog 1.1 MB Download
NETYS-RT4---1-TO-3-KVA_Product_Enviromental_Profile Declaration 700.87 KB Download
NETYS-RT4-1-3-KVA_INSTALLATION-AND-OPERATING-MANUAL Manual 7.24 MB Download
NETYS-RT4_TECHNICAL-GUIDE Manual 2.82 MB Download
