UPS-NRT4-U015B

UPS-NRT4-U015B

Item Number: 1016209

Online UPS, 1.5kVA, 1500W/3min, 230V, w/rails

  • Online double-conversion UPS with pure sinewave output
  • Full digital control and output power factor = 1
  • Wide input voltage range (110–300 VAC)
  • Rack/tower convertible with dot-matrix LCD display
  • Multiple communication interfaces (USB, RS232, dry contacts, intelligent slot)
  • Supports EBM modules for extended backup time



The UPS-NRT4-U015B is designed to provide continuous, high-quality power protection for critical onboard equipment. Its online double-conversion design ensures stable output independent of fluctuations in vessel or platform power systems.
This UPS is ideal for maritime and offshore applications such as PAGA controllers, intercom systems, IP telephony, navigation equipment, monitoring systems, and critical automation. With flexible communication ports, integrated battery management, and support for extended battery modules, it delivers reliable runtime and safe shutdown capabilities in demanding marine and energy environments.

UPS-NRT4-U015B Runtime overview:

  • 1500 W / 3 min → no additional battery module
  • 900 W / 31 min → with one additional UPS-NRT4-B015 battery module
  • 1500 W / 32 min → with two additional UPS-NRT4-B015 battery modules
General
Sn 1500 VA
Pn 1500 W
Architecture Online duble conversion VFI with input PFC and automatic bypass
Input Rated Voltage 230 V (1ph)
Input Voltage Tolerance 110 V ÷ 300 V ; (160 V ÷ 300 V @100% load)
Input Power factor / THDI > 0.99 / < 5%
Output Rated Voltage 230 V (1ph)
Output Voltage Tolerance selectable 200/208/220/230/240 V ±1%
Output Frequency Tolerance ± 0,1 Hz
Output Power factor 1
Efficiency Up to 94.1% online mode
Overload capability Up to 105% continuously; 125% x 5 min; 150% x 30 sec
Dimensions W x D x H 438 x 445 x 85.5 mm
Weight 15.7 kg
IP Rating IP20
1016209_UPS-NRT4-U015B



test

UPS-NRT4-U010B

Online UPS, 1kVA, 1000W/7min, 230V, w/rails

Item Number: 1016208

UPS-NRT4-U020B

UPS-NRT4-U020B

Online UPS, 2kVA, 2000W/7min, 230V, w/rails

Item Number: 1015884

Date Name Category Size Document
MD-SDoC-1016209-IHM-8003-83636-233735 Declaration 58.75 KB Login to download
netys-rt4-ups-15-kva-230v-nrt4-u015b Datasheet 5.98 MB Download

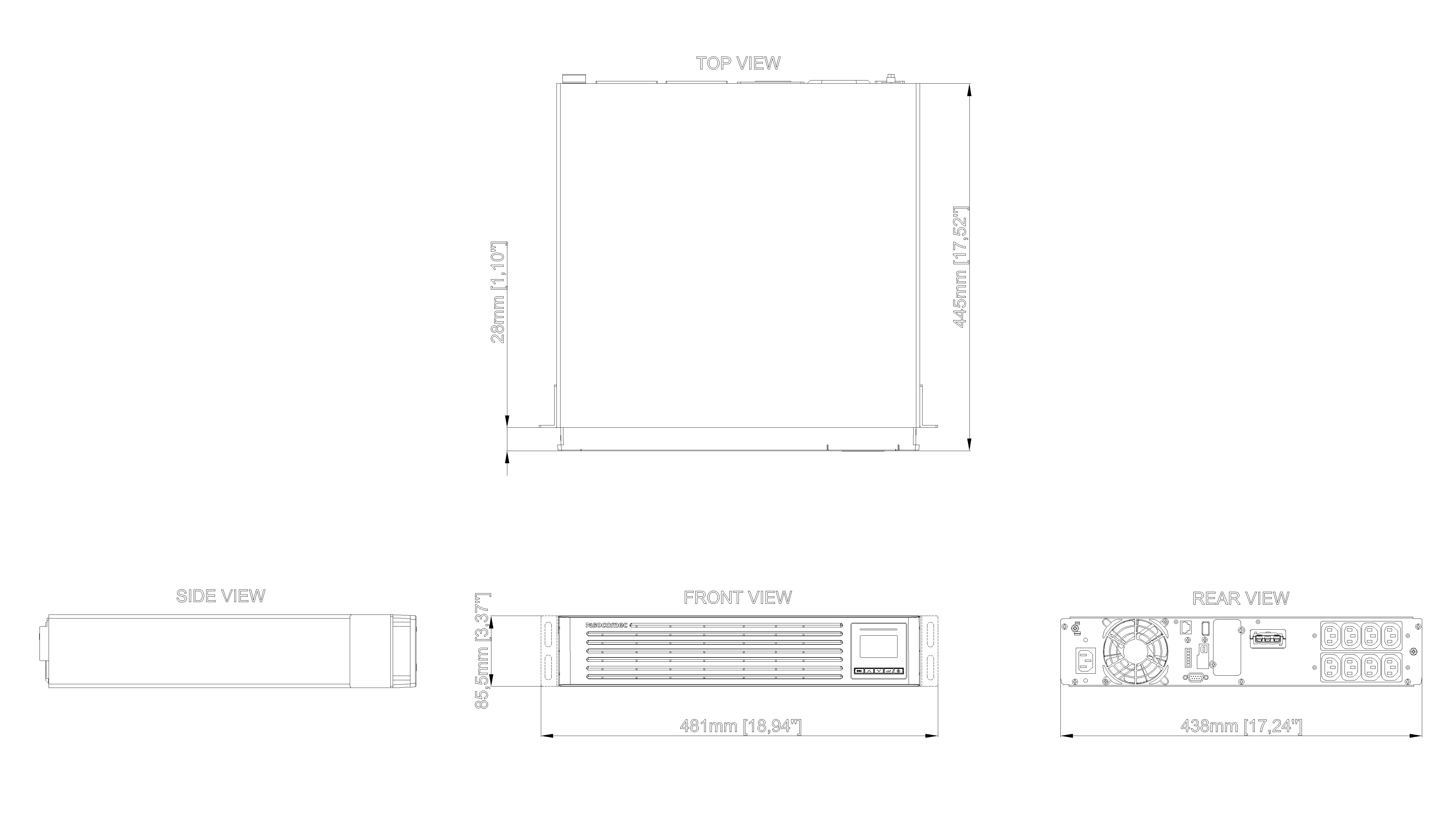

1016209_UPS-NRT4-U015B_Dimensional_Drawing CAD 2D 727.63 KB Login to download
