VLS-15TF

Item Number: 2131000206

Horn Loudspeaker 15W 100V with Fuse

  • Robust and versatile horn speaker
  • Suitable for outdoor installation in harsh environments
  • Prepared for loop in/ loop out connection
  • 1x M20 gland and 1x blind plug included
IP66 IP66
  • General purpose 15W horn loudspeaker with transformer and fuse
  • Especially suitabable for use in industrial sites or tough environments
  • To be used together with 100V line amplifier
  • With 4 different power tappings: 2.5W, 5W, 10W and 15W



GENERAL

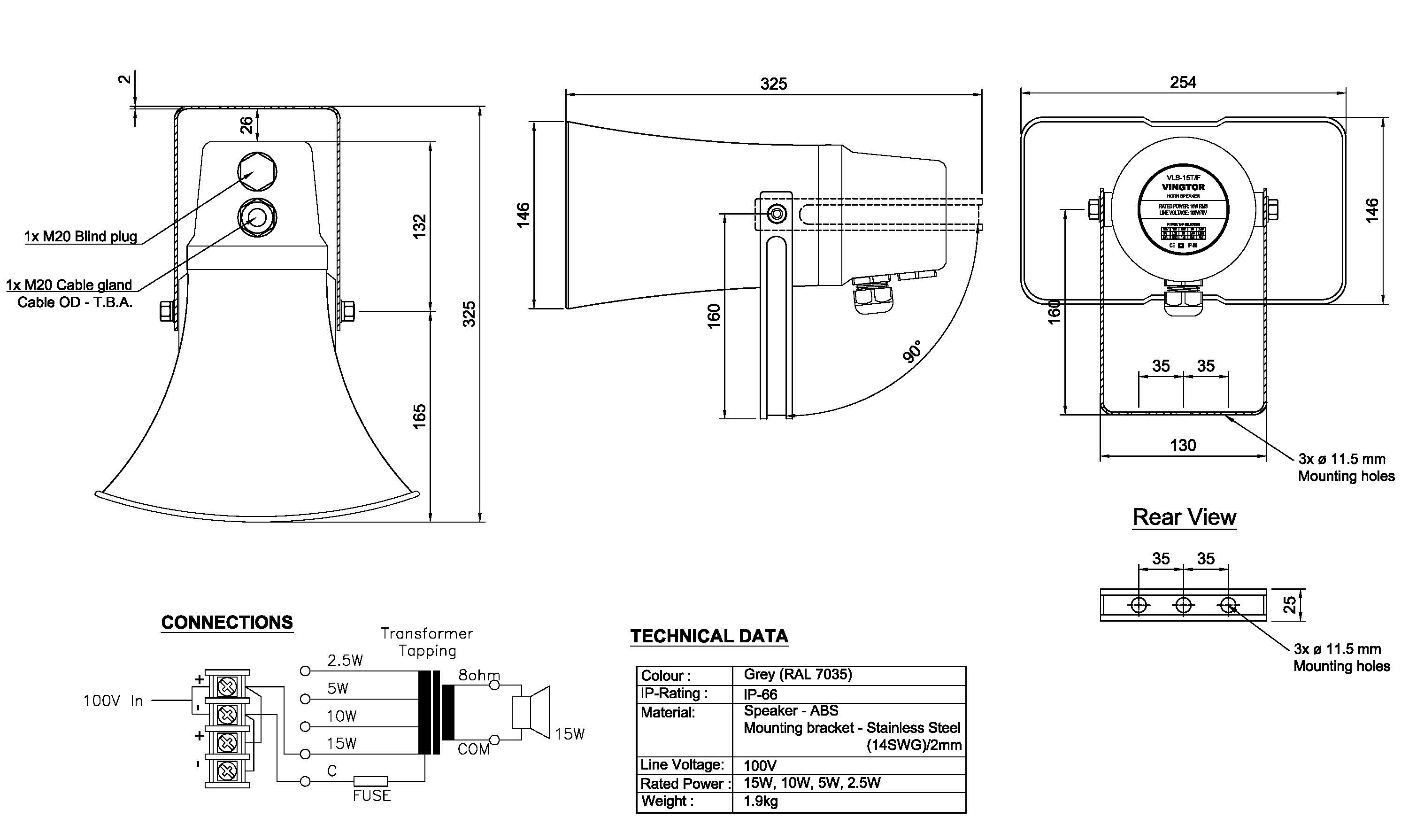

Dimension (mm) 253W x 152H x 309D
Material, finish ABS, grey
Mounting Bracket, stainless steel grade 304
Connection 1x M20 gland and 1x blind plug included
M20 Cable Gland Sealing Range 8.5 - 12mm
Weight 1,85 kg
Rated power 15W rms
SPL at 1kHz 106dB/1W/1m - 118dB/15W/1 m
Effective frequency range 275 - 7000 Hz
Dispersion angle 60° x 90° (V x H)
IP rating IP66
Temperature range -40 °C - +55 °C
Power tappings 15/ 10/ 5/ 2.5 W
Impedance 670/ 1k/ 2k/ 4kΩ
Environmental Condition Exposed
OTHER
2131000207 Additional M20 cable gland for VLS-15(TF)/VLS-30(TF). Not included and not mounted.

VLS-15TF

2131000207 - Cable gland for VLS-15-30

VLS-GLAND

Cable gland for VLS-15/30

Item Number: 2131000207

Horn loudspeaker 30W 100V with fuse

VLS-30TF

Horn loudspeaker 30W 100V with fuse

Item Number: 2131000208

Date Name Category Size Document
MD-SDoC-2131000206-IHM-8003-70767-66652 Declaration 53.81 KB Login to download
2131000206_VLS-15TF_FREQUENCY_RESPONSE.PDF 471.07 KB Download
2131000206_VLS-15TF CAD 2D 269.5 KB Login to download
2131000206 - CE.pdf Declaration 49.17 KB Download
