VR3G-1P Vandal resistant intercom Piezo self test

VR3G-1P | Vandal Resistant Audio Intercom

Item Number: 1008021015

Vandal Resistant, 3 gang, 1 Piezo button, IP and SIP intercom

  • Robust - Stainless steel front plate with one call button
  • Advanced Audio Technology - High sound pressure levels, automatic volume gain control, and active noise and echo cancellation for superior clarity.
  • Anti-ligature / tamper-resistant design: Flush mounted piezo call button (no moving parts), tamper switch alarm, soft-rounded corners to reduce risk of self-harm or abuse.
  • Weather-Resistant (IP66) & Robust (IK10)
  • ONVIF Conformant - Seamless video and device integration
  • Seamless Integration - Fully compatible with Zenitel Connect Pro, ICX-AlphaCom, IC-EDGE, and SIP-based systems.
Zenitel ConnectPRO logo Zenitel ConnectPRO
Door Intercom
Prison Intercom
Emergency points
SIP
ONVIF Conformant
IC-Edge
ICX Alphacom logo ICX-AlphaCom
IP66 IP66
IK10 IK10
HD Voice HD Voice

The Vandal Resistant Intercom Station VR3G-1P utilizes the latest technology to create unparalleled audio quality. Some of the many features include: HD voice quality, Open Duplex, Active Noise Cancellation, and an Electret Omni Directional microphone. The Piezo button has no moving parts, which makes it highly durable and increases the station's resistance to damage. These features, in conjunction with the company's 70+ years of experience with acoustic technology, are just a few of the many factors that contribute to our superior audio quality.

See Zenitel Wiki for more information



Audio
Max SPL @ 0.5m 86 dBA
Codecs G.711, G.722, G.729
Frequency range, G.722 Codec 200 Hz – 7000 Hz
Audio technology Full open duplex, switched open duplex
Sound level detection (scream alarm)
Automatic gain control
Automatic volume control (AVC)
Acoustic Echo Cancellation (AEC)
Noise cancellation
Internal speaker 3 W
Microphone technology Electret Omni Directional microphone
Networking & Protocols
Application Protocols SIP, SIPS, HTTP, HTTPS, TFTP, RTP, SRTP, RTCP, RTSP, DHCP, SNMP, Vingtor-Stentofon CCoIP®, NTP, ONVIF, WS-Discovery
IP Versions IPv4 & IPv6
LAN protocols Power over Ethernet (IEEE 802.3 a-f) Network Access Control (IEEE 802.1x)
Supervision functions Keep alive test, tone test, status reports
SIP support RFC 3261 (SIP base standard), RFC 3515 (SIP refer), RFC 2976 (SIP info)
DTMF support RFC 2833, 2976 (SIP info)
Integration and API Connected to ICX-AlphaCom through AlphaCom protocol ACDP
Connected to Zenitel Connect Pro though Zenitel Link
ONVIF
Hardware
Ethernet connector 1 x RJ-45
General inputs and outputs 6 (configurable)
Outputs 12mA as LED drivers
SELV (safety Extra Voltage) 2A, 60W
Power options PoE and/or external power supply
PoE (Power over Ethernet) IEEE 802.3af standard, Class 0 (0.44W to 12.95 W)
External power supply 24 - 48 VDC (24 – 48 V)
Power consumption Idle 1.8W, max 12W (depending on volume)
Call indication Icons/colors for hearing impaired
Construction
Dimensions (HxWxD) 160 x 114 x 60 mm / 6.3'' x 4.5'' x 2.36''
Dimensions after flush mount 160 x 114 x 4 mm / 6.3'' x 4.5'' x 0.15''
Weight 0.74 kg / 1.6 lbs.
Faceplate material A4 Steel
Electronics cover material Polycarbonate (translucent)
Gasket material Low density soft EPDM-foam (closed cell), t:2mm.
Button material Aluminium
Poke protection, small/large diameter objects: Ø1.8mm
Environmental compliancies
IP rating 66
IK rating 10
Operating temperature range -20° to 75° C / -4° to 167 ° F
Relative humidity < 95% not condensing
Approvals
EMC EN 61000-6-1, EN 61000-6-3, FCC part 15
Safety EN 62368-1
Sustainability RoHS, REACH
Other Specifications
Country of manufacture Poland
Warranty 2 Years standard warranty, extendible up to total of 5 years (additional fee)

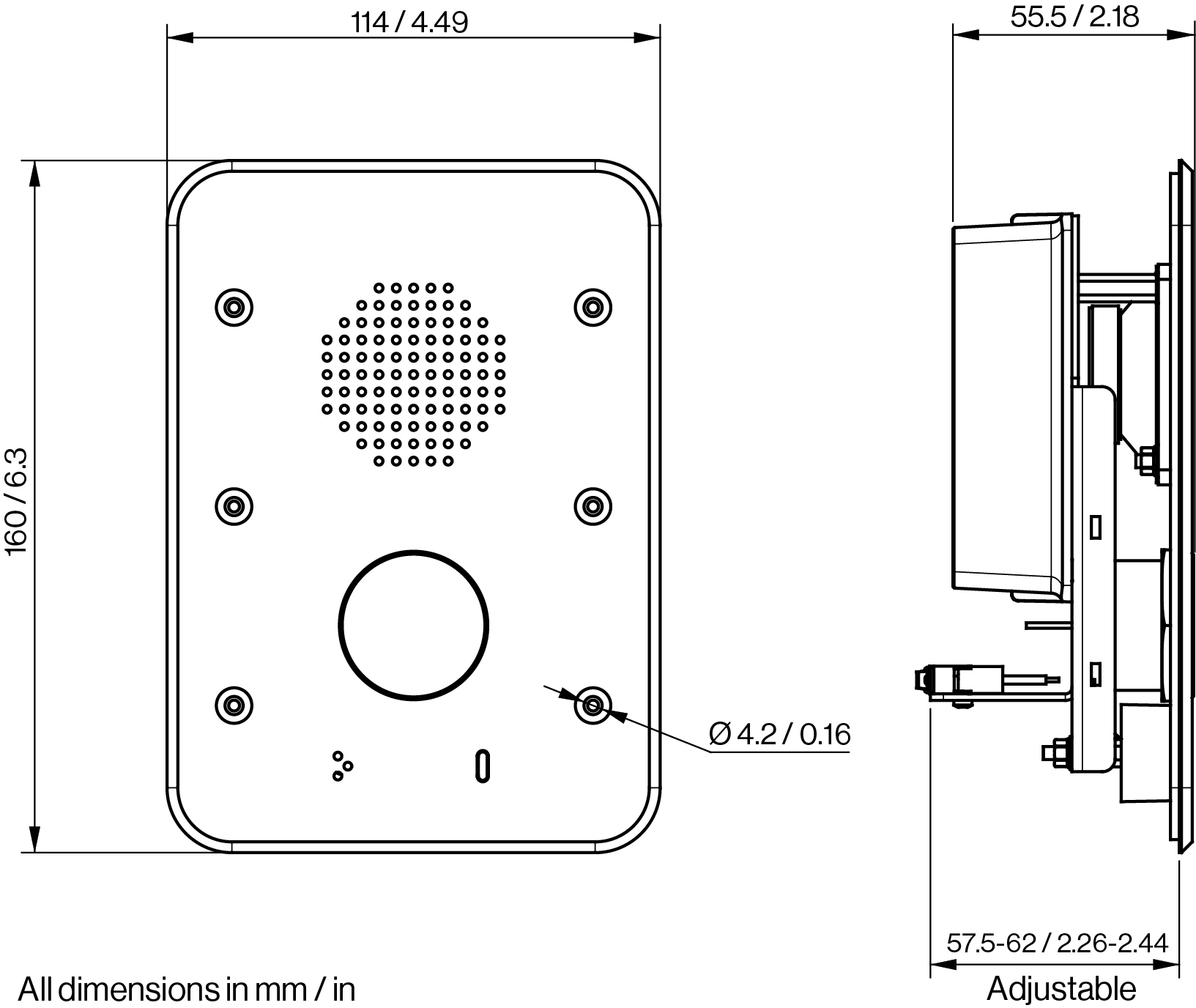

VR3G-1P Dimensions

Date Name Category Size Document
FCC Declaration VR3G-1(P) Declaration 113.22 KB Login to download
1008021015 VR3G-1P I Vandal Resistant IP and SIP intercom A&E Specification 829.39 KB Login to download
RoHS Declaration VR3G-1(P) Declaration 90.54 KB Download
CE Declaration VR3G-1(P) Declaration 137.24 KB Download
A100K12226 VR3G-1 and VR3G-1P Mounting and Installation Manual Manual 1.09 MB Download
1008021015 VR3G-1P CAD2 CAD 2D 518.33 KB Login to download
