VSP-M I.S. Buffer Converter Unit

Item Number: 3006200142

  • Adapts the use of the 12 way Intrinsically Safe VSP-512 Batteryless Telephone in a 20 way VSP-M system
  • To be mounted in SAFE AREA
  • No violation of the ATEX / IECEx certification parameters
  • Wall mounted
  • Screw terminals

Junction box with predefined system extension configuration, adapts the use of a Ex certified VSP-512 in a 20 way system

VSP-512 selector choices in a 20L VSP-M system using the VSP-M I.S. Buffer Converter Unit:

  • The recommended telephone on the Bridge is VSP-211M-L (including amplifier)
  • Since the VSP-512 I.S telephones (blue) only has 12 selector positions it is necessary to organize the system in a way that important positions are amongst the extensions they are able to call (green + blue)
  • The telephones in HAZARDOUS AREA (blue) can only call telephones up to 1-1 (green + blue)
  • The telephones in SAFE AREA (green + yellow) can call all other telephones in the system (green + blue + yellow)

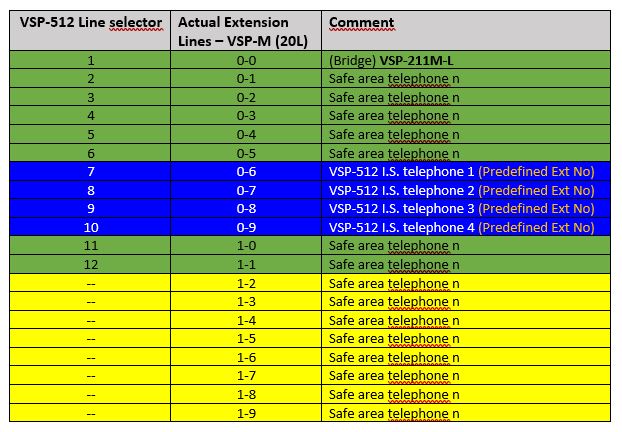

Extension numbering plan





GENERAL
Connections Screw terminals
Colour Light grey, RAL xxxx
Dimensions 360 x 160 x 130 mm (W x H x D)
Weight 1.2 kg
Operating temperature -25°C to +55°C
Ingress Protection IP-56
Glands 1 x M40 + 2 x M32

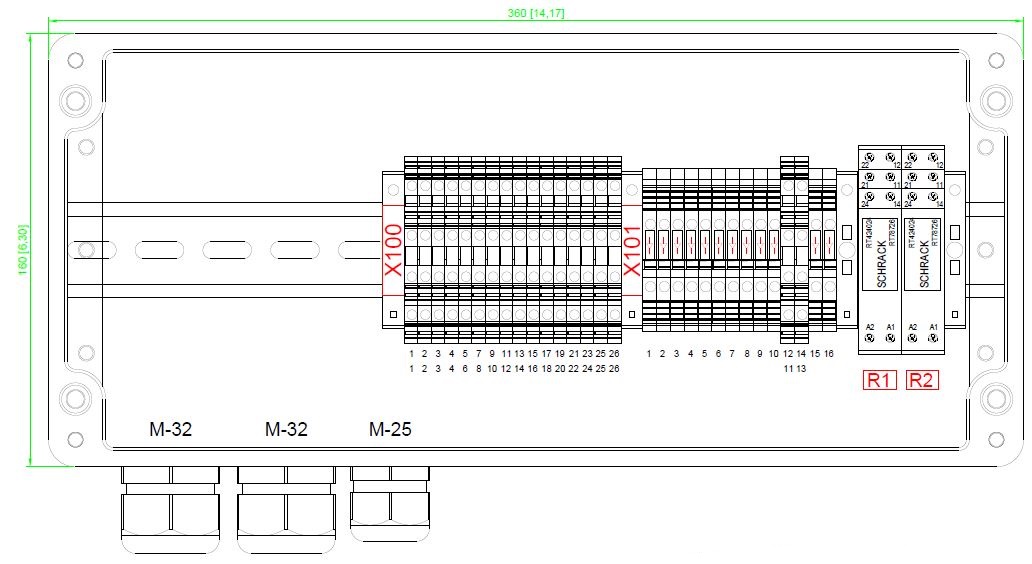

3006200142outline

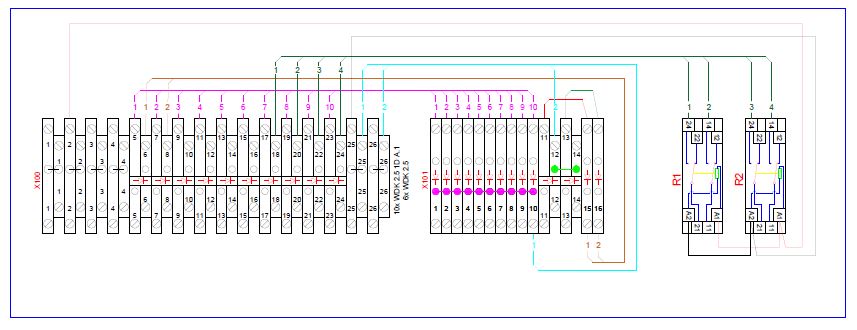

3006200142Terminal view



For connection details - seeattached document 3006200142 - 20L I.S - VSPM Connection diagram – r07.pdf
