VSP-512

Item Number: 3006200044

Instrinsically Safe Operating Unit

  • Intrinsically safe (II 1G Ex ia IIC T6 Ga) – suitable for Zone 0 hazardous areas
  • Operates with the VSP Batteryless Telephone System
  • 12-way selector with call button for easy line selection
  • No external power supply required in the hazardous area
  • Rugged GFRP enclosure, bulkhead-mount design, IP44
  • Suitable for tank decks, pump rooms, process areas and other Zone 0 locations

VSP-512 – Intrinsically Safe Operating Unit for Batteryless Telephone System

The VSP-512 is an intrinsically safe operating unit for the VSP Batteryless Telephone System, designed for use in Zone 0 hazardous areas.
It provides reliable, line-powered voice communication as part of an independent emergency or internal communication network.

The unit connects to a VSP buffer unit located in the safe area and allows the operator to select and call up to 12 batteryless telephones or operating stations through a passive, power-free network.

SPECIFICATIONS

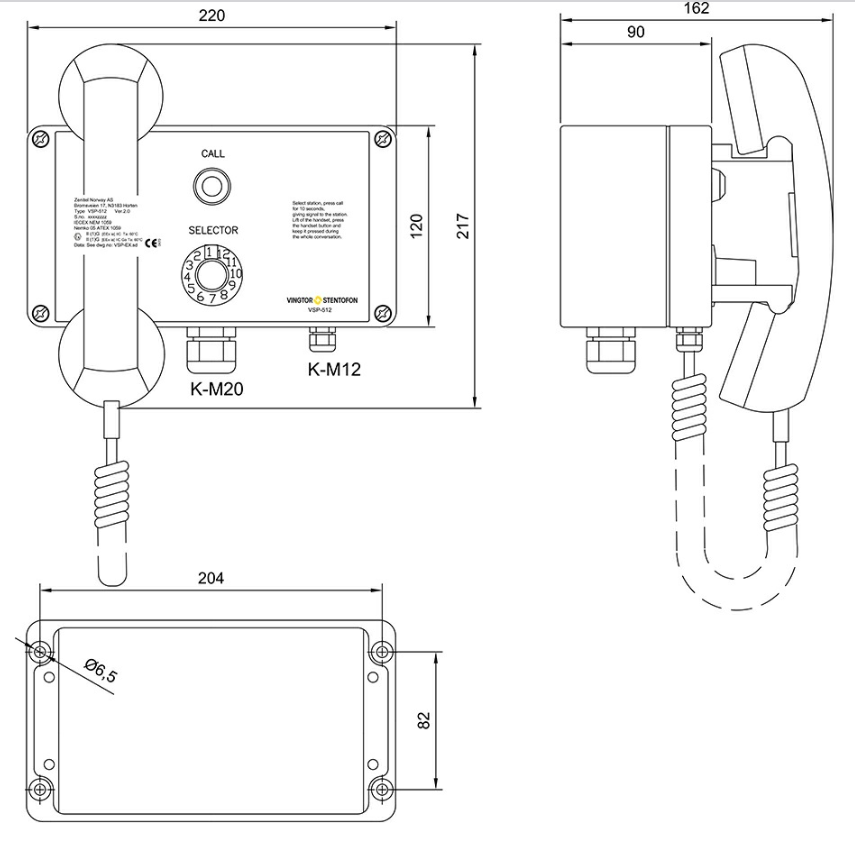

Dimensions (WxHxD) 220 x 208 x 170 mm (with handset)
Mounting Bulkhead
Weight 1,8 kg
Housing Glassfibre reinforced polyester box
Color Black
IP- rating IP-44
Cable entry M20 x 1,5
Connections Screw terminals
Protection mode Ex II 1 G EEx ia IIC T6
Certificate Presafe 15 ATEX 6475 / IECEx PRE 15.0024
VSP-512
Date Name Category Size Document
VSP-Ex-CE August .2024 Declaration 59.59 KB Login to download
Nemko 05ATEX4259Q - Zenitel, revised 2024-03-15 Certificate 52.12 KB Download
VSP-Ex_Presafe 15 ATEX 6475 Certificate 255.86 KB Download
VSP-Ex_IECEx PRE 15.0024 Certificate 533.36 KB Login to download
MD-SDoC-3006200044-IHM-8003-63565-7861.xlsx Declaration 53.54 KB Login to download
3006200044 VSP-512 Ver.2.0 CAD 2D 373.16 KB Login to download
A100K10872 VSP-EX Installation and User Manual Manual 4.91 MB Login to download
