VSP-5008

Item Number: 3006200040

EX Buffer Unit

  • Intrinsically safe buffer unit for mounting in safe area
  • Supports up to 4 Ex(i) telephones - VSP-512
  • 4x 24V DC outputs to Ex signal units
  • 8 call signal outputs to safe area
  • Delivered in a pained steel cabinet for wall mounting
  • Can be delivered with up to 2x zener barriers for 24V DC I.S. sounder in zone 0
  • (½ x zener barrier for each sounder)

Atex

Ensures uninterupted  communication between Ex- and safe zone in a Batteryless telephone system (VSP). To be mounted in Safe area with Barriers into the Hazardous (Ex) area. It accommodates up to 8 Batteryless telephones within the system, enabling seamless communication. Call signals are distributed in the Hazardous area via EX(d) signal units controlled by relay outputs. Encased in a durable pained steel cabinet designed for wall mounting. It offers optional integration with up to 2 zener barriers (4 extention numbers) for 24V DC sounders in zone 0, guaranteeing reliable operation and enhanced safety in hazardous environments.

GENERAL

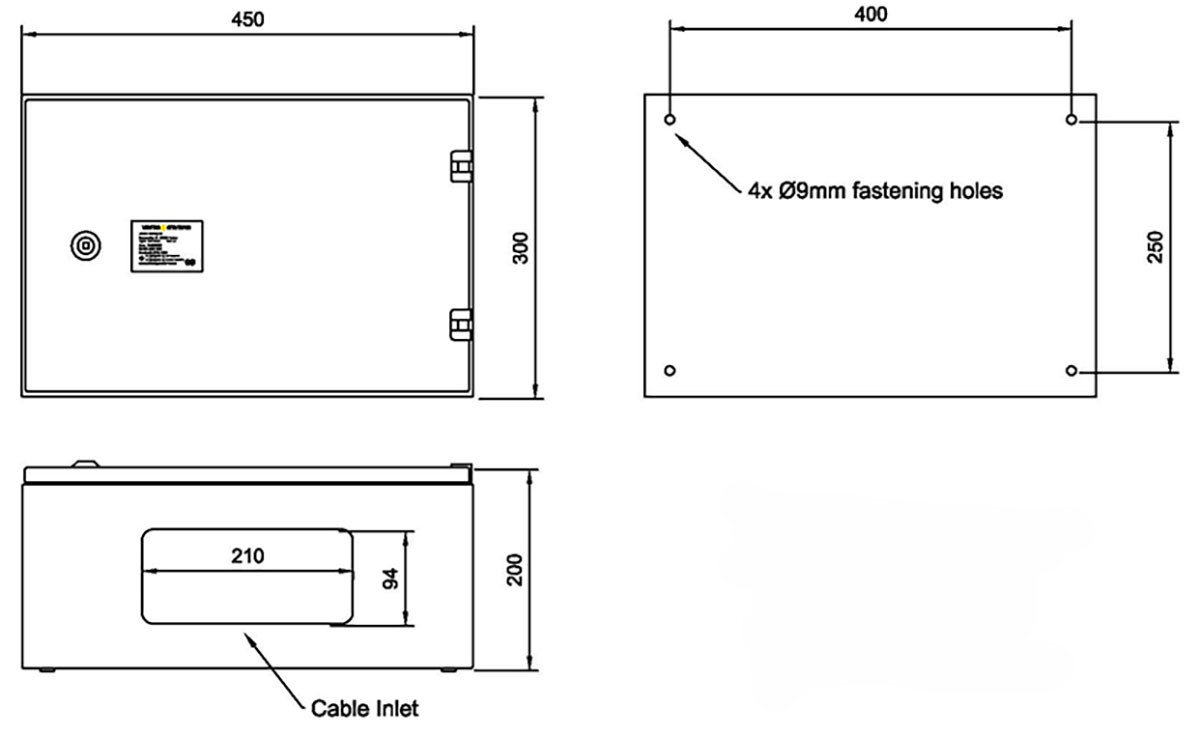

Dimensions (WxHxD) 450 x 300 x 200 mm
Mounting Wall mounted
Weight 11.0 kg
Housing Steel cabinet
Color Beige / RAL 7032
Cable entry Pre-cut cable inlet in bottom
Connections Screw terminals
Operation voltage 24V DC
Power Consumption 15W (max)
Protection mode Ex II (1) G EEx ia IIC T6
Certificate Presafe 15 ATEX 6475 / IECEx PRE 15.0024
IP-rating IP-44
ORDER NUMBER DESCRIPTION SHIP WEIGHT
3006200040 BUFFER UNIT WITH CAPACITY TO CALL 8 MAIN STATIONS IN SAFE AREA 11.0 Kg
Related items:
3006200044 TELEPHONE I/S WALL W/12-POS SWITCH IP44, EEX ia IIC T6 1,8 Kg
3006200046 MT7H79F-501-FL5255 HEADSET I/S W/BOOM MI ON-OFF 10M CORD, I. Beltclip and 10 m cable. 0,5 Kg
3006102010 BEX-24B BEACON EX BExBG05D 24V DC BLUE ATEX IP67 1 CABLE GLAND 2,45 Kg
3006102011 BEACON EX BExBG05D 24V DC IP67 ORANGE ATEX 1 CABLE GLAND
3006102012 EX APPROVED LIGHT, 24V DC RED, ATEX, IP66,1 CABLE GLAND
3006102015 EX APPROVED LIGHT ORANGE 220V AC WT IP66, INCL. 1 CABLE GLA 2,75 Kg
3006102029 dHW2 EX SIGNAL BELL 24 Vdc IP 66 II 2 G EEx de IIC T6 6,0 Kg
3006102080 dHW1 EX SIGNAL BELL 230 V AC 50/60 Hz IP 66 - II 2 G EEx de IIC T 6,0 Kg
DHH1-230 Ex signal horn 230VAC 50/60 Hz WT - IP-66 -II 2 G EEx DE IIc T6 5,5 Kg
1020600992 IRR-3 RELAY BOX 24V DC OR 220V AC - SIGNAL UNIT WT - IP-66 0,35 Kg
