NDA-U-WMT Universal Wall Mount for Autodome IP 5000i Image

Wall Mount for Autodome IP 5000i

Item Number: 2310111131

Wall mount

  • Integrated swivel function
  • Modular design for fast and easy installation
  • Weather resistant finish to maintain cosmetic appearance
  • Vandal resistant design for indoor and outdoor use
IK10 IK10

The Wall Mount for Autodome IP 5000i supports multiple installation scenarios including direct installation to a wall, pole, or corner through the use of a suitable adapter. The integrated swivel function ensures the installed camera is always level. The mount allows easy cable management or it can be combined with additional surface mount boxes to cater for conduit connections.

Mechanical
Dimensions (connection plate) Φ 101.5 mm
Dimensions (W x H) 227.4 x 155.7 mm
Weight 650 g
Standard Color White (RAL 9003)
Construction Material Aluminum alloy
Parts Included
1 Wall mount
4 M5 x 16mm pan head Torx screw with Zinc coating
1 Thread seal tape: PTFE tape
1 IP rubber plug
1 T25 Torx key
Certifications and Approvals
Salt mist IEC60068-2-52
Vibration NEMA TS2
Shock IEC60068-2-27
Impact IK10

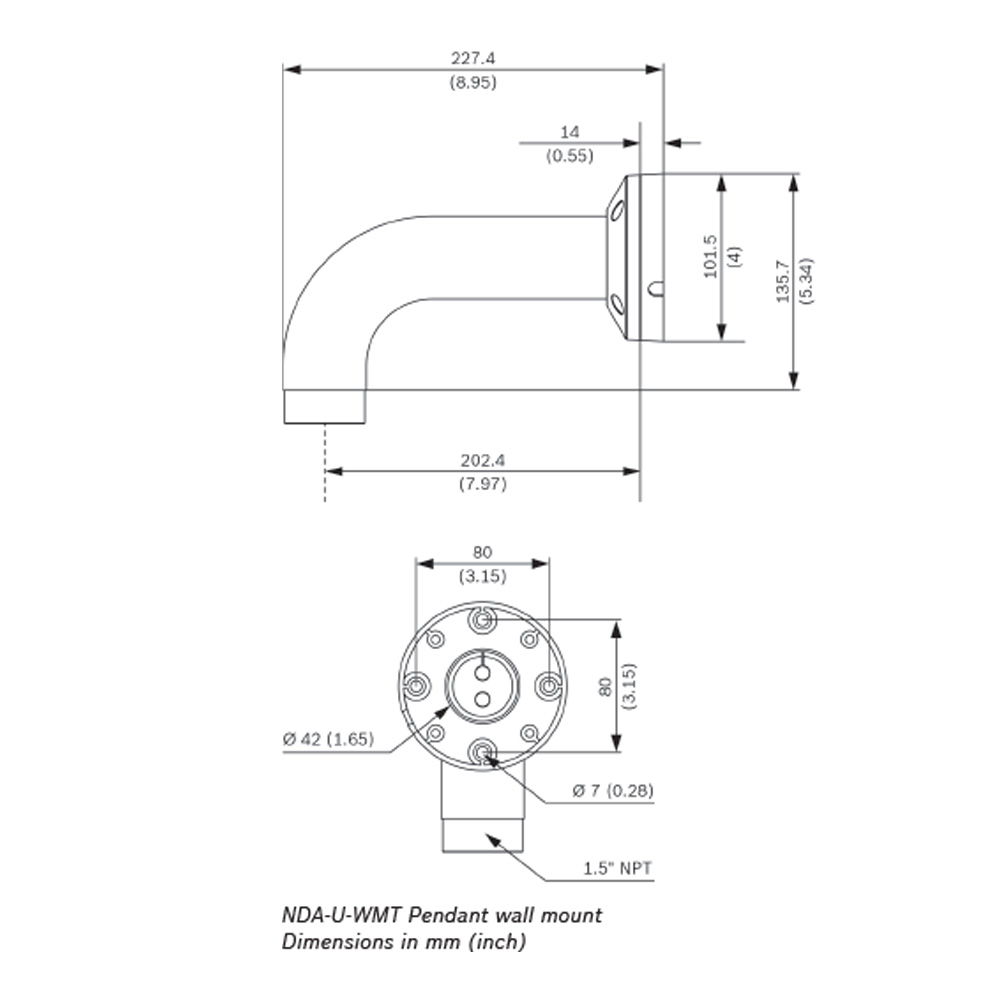

Dimensional Drawing for NDA-U-WMT Universal Wall Mount for Autodome IP 5000i
