WCAB-1010M

Item Number: 1153901102

Marine grade SST wall mounted cabinet, 600x600x210mm, IP66

  • Stainless steel 1.4404(AISI 316L)
  • With mounting plate
  • Single-door
  • Double cam lock (3 mm double-bit lock)
  • Wall mounting set for outside mounting to wall
  • Protection IP-66

Item has been replaced with WCAB-1010M-V2

IP66 IP66

WCAB-1010M is a marine graded   SST wall mounted cabinet with assembly included.


 In case assembly is not needed, please use the following item numbers:

  • 2810010072 - WCAB-1010 Cabinet marine grade SST wall 600x600x210mm IP66
  • 2810011011 - WCAB-BRCT Wall brackets for WCAB-10xx SST AISI 316L
General
WCAB-1005 Stainless steel cabinet IP-66
Dimensions (WxHxD) 600x600x210mm
Weight 23.5kg (51.8lbs)
Additional mounting plate: Dimension 549x570mm
Material Enclosure: Stainless steel
Door: Stainless steel, all-round foamed-in PU seal
Mounting plate: Sheet steel Stainless steel 1.4404 (AISI 316L)

1153901101-WCAB-1005-Image

WCAB-1005M

Marine grade SST wall mounted cabinet, 300x380x210mm, IP66

Date Name Category Size Document
16.05.2023 MD-SDoC-1153901102-IHM-8003-41815-128015 Declaration 72.18 KB Login to download

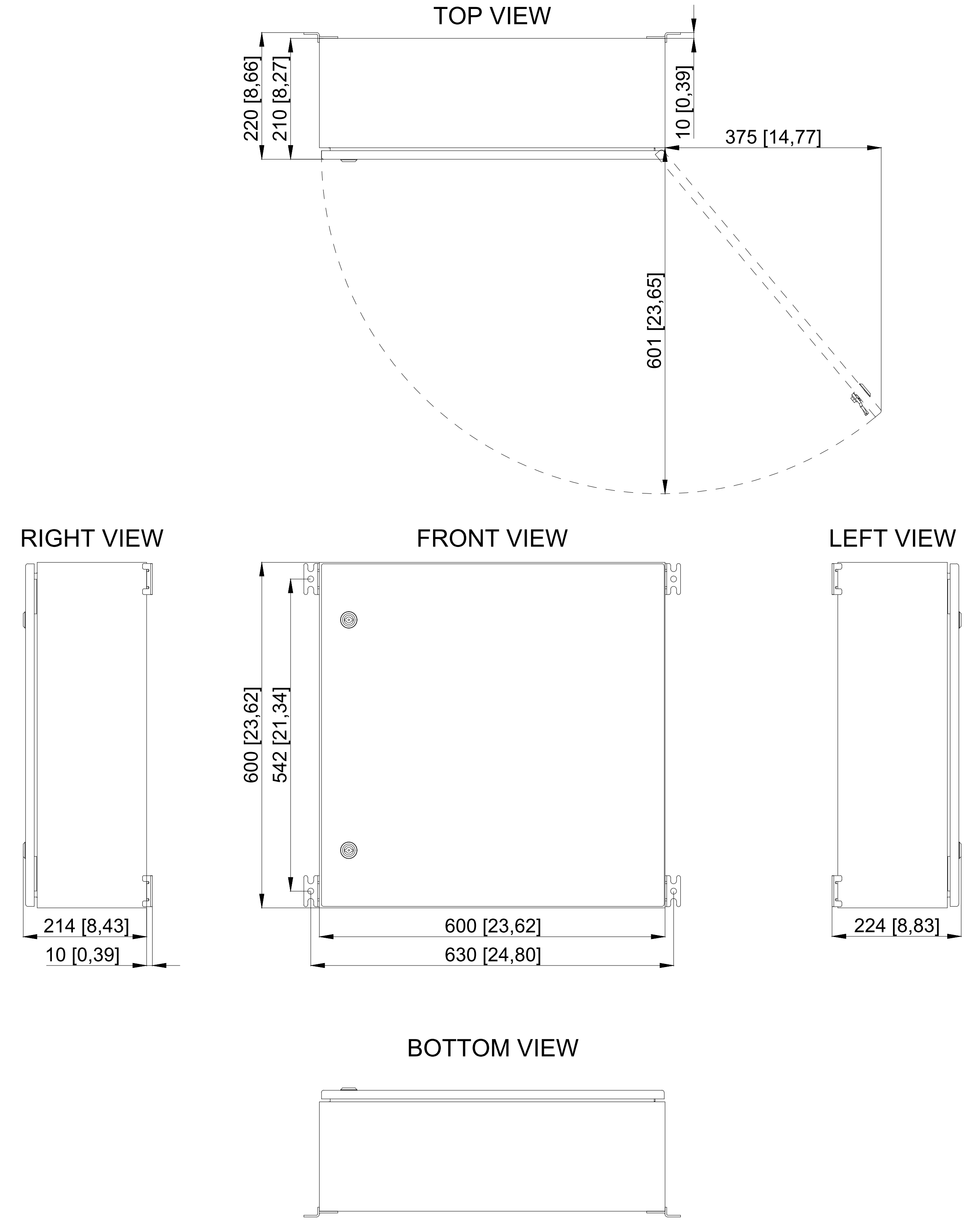

2.08.2022 2810010072-1153901102-420_r01_WCAB-1010_Dimensions_Layout.zip CAD 2D 384.32 KB Login to download
