BEX-115O

Item Number: 2340210014

Beacon EX BEXBG05D 115VAC

IP66 IP66
IP67 IP67
Atex
  • Marine grade, corrosion proof, LM6 aluminium enclosure
  • IP66/IP67 ingress protection
  • Xenon tubes mechanically secured against shock & vibration
  • 120 candela effective light intensity
  • Automatic synchronisation on multi-beacon system
  • Lens Colour: Orange
  • Available lens colours: Orange, Green.

The flameproof BEX-115O Xenon beacons are suitable for Zone 1, 2, 21 & 22 applications. Approved to IECEx, ATEX, Ex EAC and INMETRO standards. The beacons robust construction enables installation in the harshest of environments.

Available options: Voltage: 24V dc, 115V ac, 230V ac

General
Weight 2.45 kg
Energy 5 Joules (5Ws)
Flash rate 1 Hz (60 fpm)
Peak Candela 500,000 cd - calculated from energy (J)
Eff. Intensity cd 250 cd - calculated from energy (J)
Cable entries 2x M20 ISO (One cable gland and one blind plug incl.)
Temperature range -50° to +70°C
Relative humidity 90% at 20°C
Housing material Marine grade LM6 aluminium
Environmental Condition Exposed
Order number Description
2340210041 Beacon Ex BExBG05D 115VAC ATEX IP67 1x cable gland, Clear
2340210040 Beacon Ex BExBG05D 115VAC ATEX IP67 1x cable gland, Green

BEX-24O

BEX-230R

Explosion Proof Xenon Beacon 5 Joule, 230V

Date Name Category Size Document
MD-SDoC-2340210041-IHM-8003-63565-177391 Declaration 53.54 KB Login to download

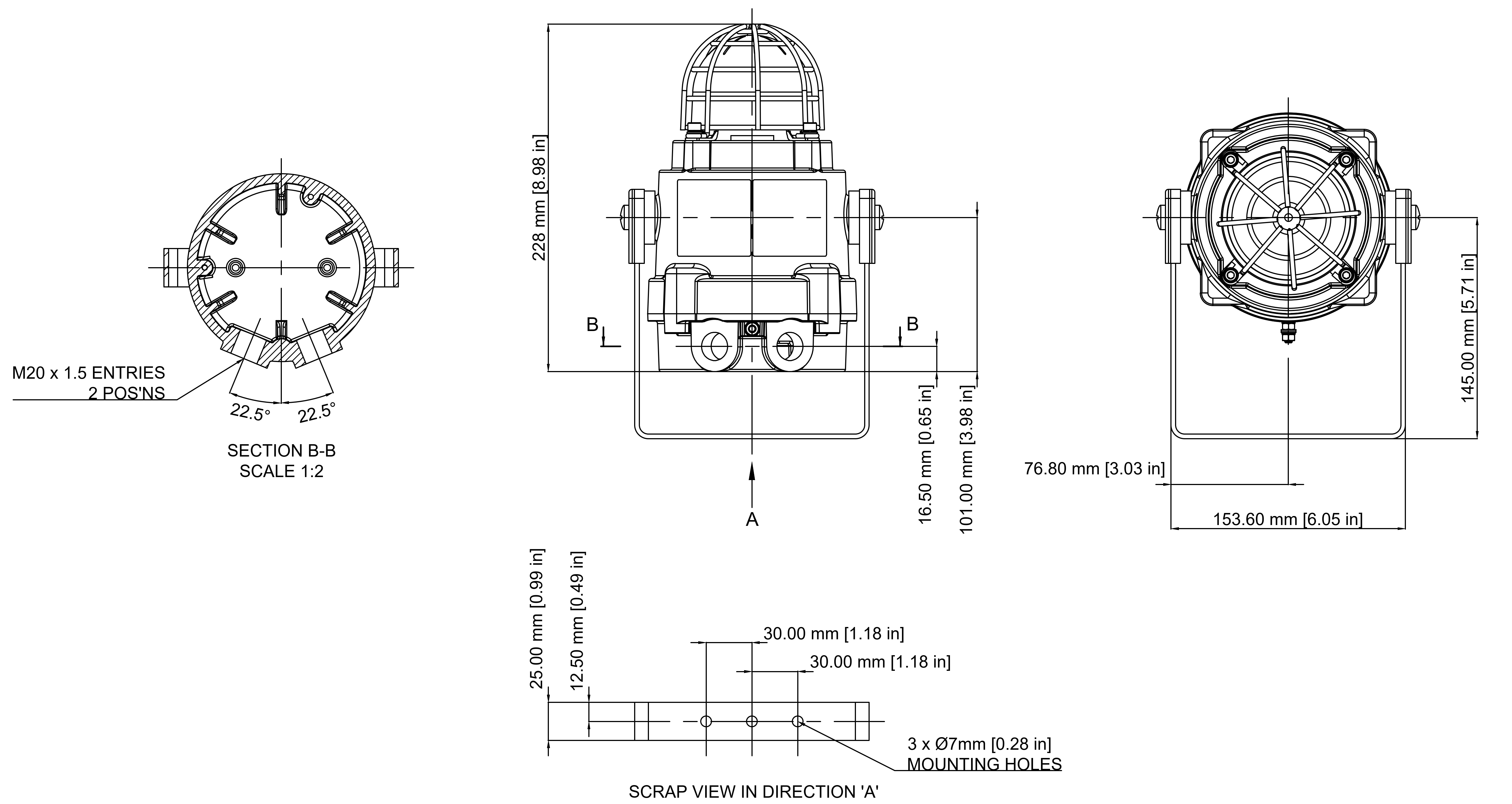

BEX-xxx - Dimensional Drawing CAD 2D 266.71 KB Login to download
MD-SDoC-2340210040-IHM-8003-63565-126640.xlsx Declaration 53.53 KB Login to download
MD-SDoC-2340210014-IHM-8003-63565-126631.xlsx Declaration 53.53 KB Login to download
BEX_RTN_Permit.pdf Declaration 219.76 KB Download
BEX_Datasheet.pdf Datasheet 219.51 KB Download
BEX_Russian_Ex_Cert.pdf Certificate 4.25 MB Download
