CL-135T

CL-135T

Item Number: 2131000132

5" Miniature ceiling speaker, 100V, 6W

5" miniature speaker for small rooms or where space for mounting speakers is limited.

The speaker has a robust, yet discreet design and installation is easy with two spring clamps.

General
Dimensions (Diameter x Depth) Ø135 x D82mm
Cut Out Dimension (Dia.) Ø106
Mounting Flush mounted – ceiling or wall by spring clamp
Operating temperature range -20℃ ~ + 70℃
Rated Power 6W
Max Power 10W
Sensitivity 80 dB ± 3dB , 1W/1M at 400,500,600,700 Hz-Avg.
Frequency Range 75 Hz ~ 18 KHz -10dB / ±20% Hz
Rated Voltage 100 V
Power tappings 6-3-1.5W
Termination Ceramic Terminal Block With thermal fuse
Baffle Material Steel , RAL 9010
Mesh Grille Steel , RAL 9010
Weight 0,52 kg
Environmental Condition Protected
PRODUCT VARIANTS
2131000141 CL-135T-W/FD 5" Ceiling miniature speaker, 100V, 6W w/fire dome

CLMQ-200T

CLMQ-200T

6'' Ceiling speaker, high sound quality, 100V, 6W

Date Name Category Size Document
16.05.2023 MD-SDoC-2131000132-IHM-8003-41819-126682 Declaration 72.17 KB Login to download
11.12.2019 2131000132-_CE.pdf Declaration 166.47 KB Download

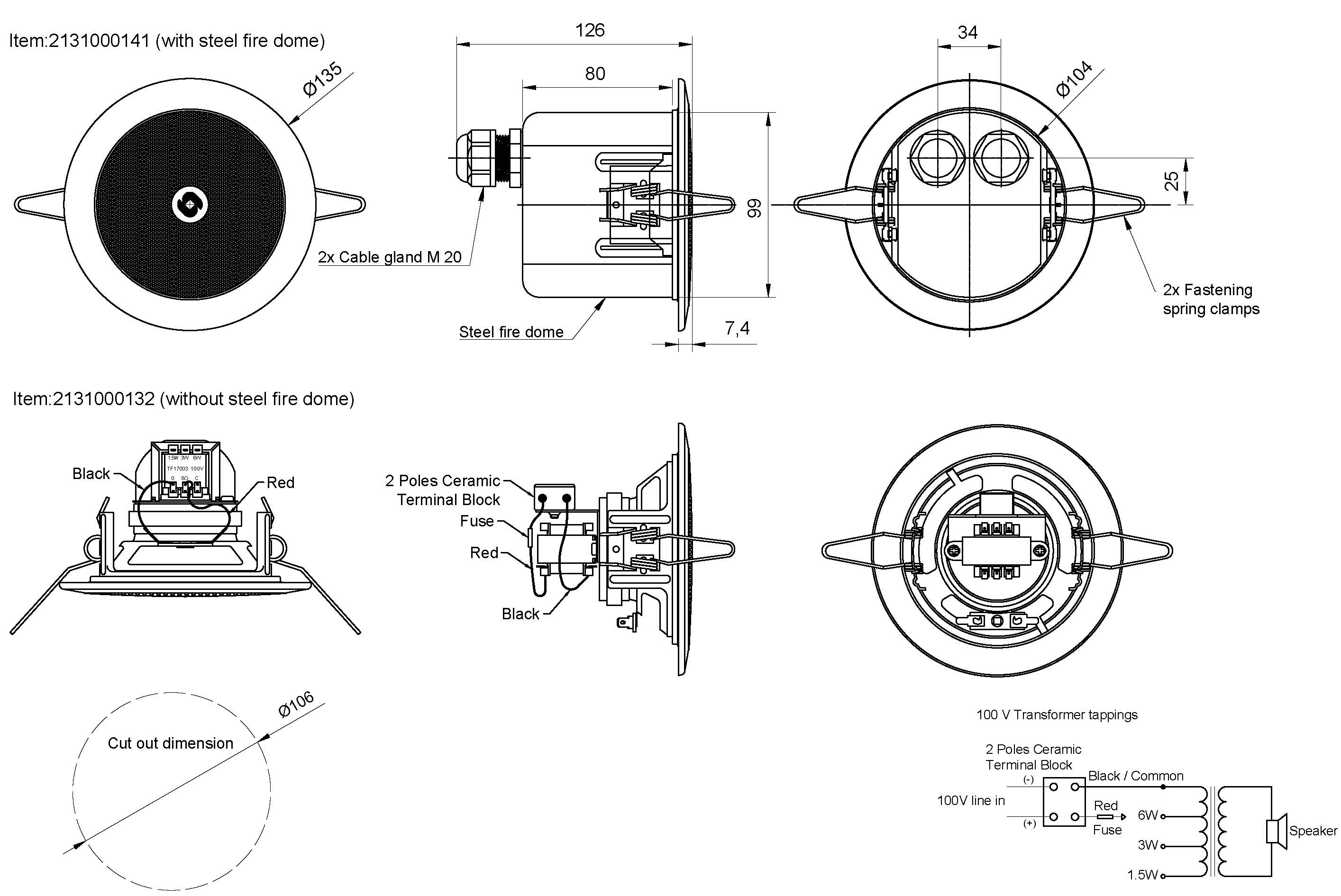

17.09.2019 2131000132-141_CL-135T.zip CAD 2D 427.19 KB Login to download

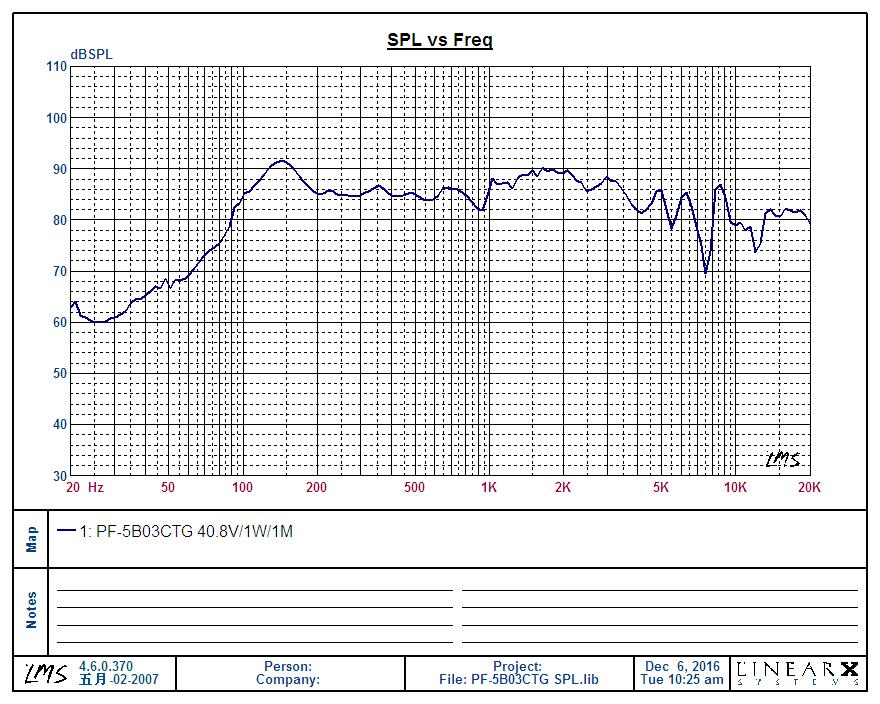

PF-5B03CTG SPL
