CLWT-135T

CLWT-135T

Item Number: 2131000133

Ceiling Speaker WT, 100V, IP55, 6W

  • Ceiling loudspeaker intended for bathrooms and humid rooms
  • Watertight back box ensuring IP55 rating from all sides
  • Double cable glands for loop in / loop out connection
  • Thermal fuse
  • Ceramic terminals

The Vingtor-Stentofon flush mounted ceiling speaker  CLWT-135T is made for demanding environments.

  • IP55 Water ingress protection from all sides
  • Good audio quality
  • Plastic back box
  • Spring fasteners and screw holes for vibrating environments
  • Spring fasteners only for non-vibrating environments
  • Adjustable power tapping to accommodate separate room sizes
  • Back box glands increase stability of wire connections
  • Supports loop wiring with 2 x 20 mm back box glands
  • Includes thermal fuse, ceramic terminals and transformer for 100V lines

The back box glands enhance the speaker and provide extra coverage against dust, humidity and water. Using both glands facilitates loop-wiring and reduces the need for costly junction boxes

GENERAL
Dimensions (Diameter x Depth) Ø136 x D130 mm
Cut Out Dimension (Dia.) Ø116mm
Suspension / Mounting Spring Clamp
Operating temperature range -20℃ ~ + 70℃
Rated/ max power 6W / 12W
Power tappings 100 V 6 - 3 - 1.5 W

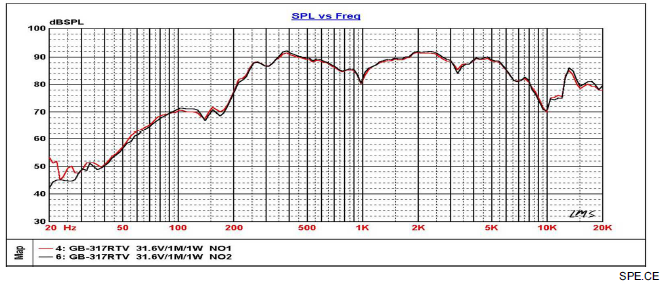

Sound Pressure Level (400,500,600,700HZ , 1W/1M) 88 dB ±3dB
Frequency range 200 – 20000 Hz
Speaker 2.5 “ Paper Cone With Cloth Surround (Moisture Resistant)
Connections Ceramic Terminal Block With thermal fuse
Baffle Material ABS ,UL94 Vo , White RAL 9010
Grille Material ABS ,UL94 Vo , White RAL 9010
Back Cover ABS ,UL94 Vo , White RAL 9010
Glands 2x MGB20-14B
Weight 0, 62kg
Environmental Condition Protected
