HP-10

Item Number: 4000010756

Horn Loudspeaker, 10W, 20 Ohm, IP66/67

  • Suitable for outdoor and indoor installation
  • IP66/67
  • EN 45545-2 compliant

The HP‑10 is a compact 10 W horn speaker delivering a powerful 107 dB SPL at 1W/1m. Built from durable Ronfalin C110 (PC+ABS) and rated IP66/67, it ensures reliable performance in harsh indoor and outdoor environments. With a frequency range of 370–11000 Hz, wide dispersion, and a robust mounting bracket, the HP‑10 is ideal for public address, safety, and industrial communication systems.

General
Rated power 10 W
SPL 1 W / 1 m 107 dB
SPL rated power 116 dB
Effective frequency range 370 – 11000 Hz
Dispersion (-6dB) 1 kHz / 4 kHz 155° / 52°
Enclosure material / Color Ronfalin C110 (PC+ABS) / RAL 7035
Mounting material Plastic bracket
Dimensions Ø139 x 200D
Termination Spring clamps
Connection 1x M20 cable gland, 1x M20 blanking plug
M20 cable gland sealing range 5 - 12 mm
Weight 0.96 kg
IP-rating 66/67
Max. / min. ambient temperature 90°C / -50°C
Environmental Condition Exposed

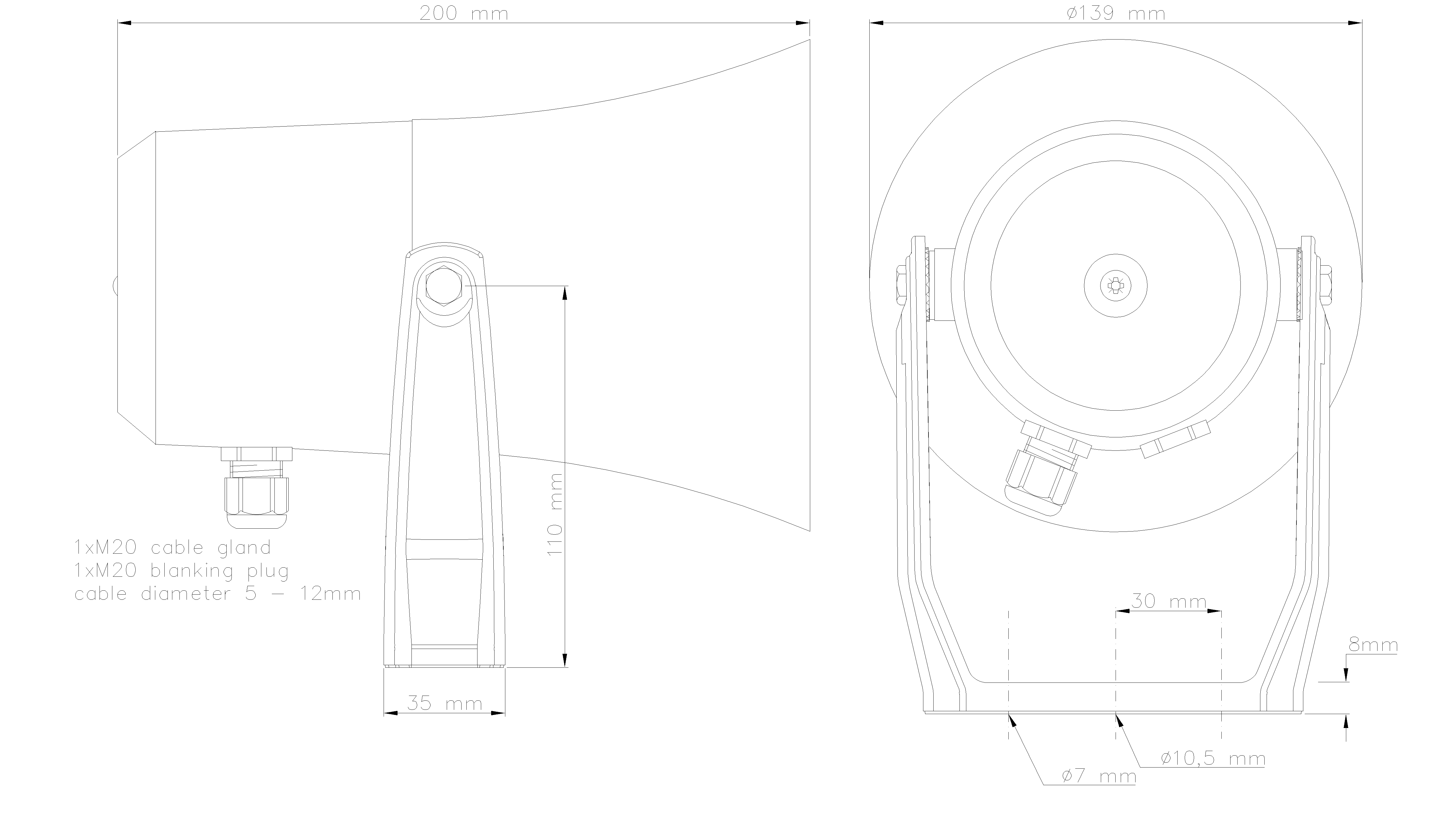

4000010756-HP-10_Dimensional_Drawing
