HP-30T

HP-30T

Item Number: 4000013288

Horn Speaker 30W, Waterproof

IP67 IP67
  • Wall loudspeaker w/ transformer for accommodation use.
  • Excellent for P.A. intercom and background music
  • With transformer for 100V amplifier line

When mounting the loudspeaker please ensure that it is re-assembled in the same manner in which it was assembled. Fasten bracket with 1-3 screws. To change the position of the loudspeaker please adjust the bracket (by loosening / tightening the screws) as required. For optimum performance, always use the correct voltage / power and operate within the frequency limits as stated. Do not open loudspeaker when in use. Fasten lid with a torque of 2 - 3 Nm.

General

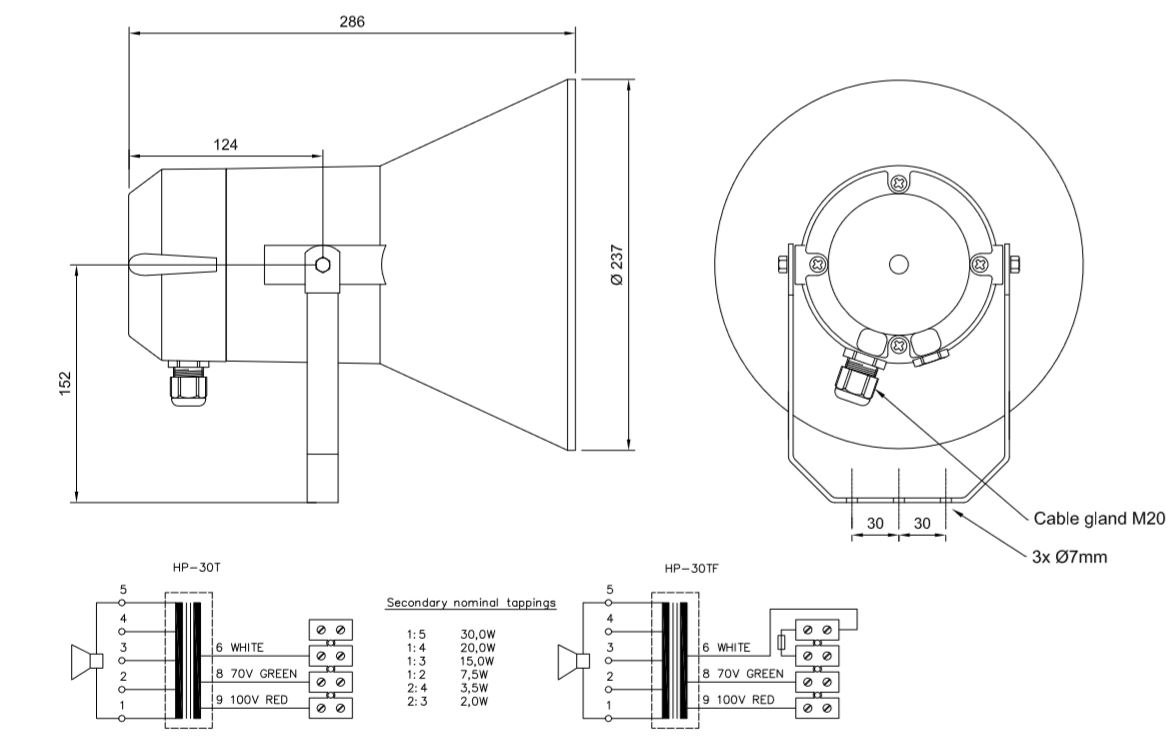

Dimensions (mm) 237Ø x 298D
Weight 2. 3 kg
Mounting Bracket
Material/Color Polyamide / RAL 7035
Temperature range Max. / min. amb. temp 90°C / -40°C
Max. / min. ambient temperature 150 °C / -50 °C
IP-Rating IP-67
Connections Internal screw connections
Rated/ max. power 30W / 40W
SPL 1W/1m 110dB
SPL rated power 124dB
Effective freq.range 310 – 8000 Hz
Dispersion (-6dB)1kHz / 4kHz 115° / 30°
Environmental Condition Exposed
