HP-6CT-MED

Item Number: 2131000159

Mini Horn Loudspeaker, 6W, 100V, IP67

  • Suitable for outdoor and indoor installation
  • IP67
  • EN 45545-2 compliant
  • 70V / 100V
  • Tappings: 0.5W - 1.5W - 3W -  6W
  • MED Approved
MED EU Certification icon MED Certification
Marine 40x40 ico Onboard communication
IP67 IP67

The HP‑6CT-MED is a compact 6 W horn speaker delivering a powerful 100 dB SPL at 1W/1m. Built from durable UL94 V0 polyamide and rated IP67, it ensures reliable performance in harsh indoor and outdoor environments. With a frequency range of 300–20000 Hz, wide dispersion, and a robust mounting bracket, the HP‑6CT-MED is ideal for public address, safety, and industrial communication systems.

Installation, Operation and Maintenance Procedures

  • Remove the lid and lead cable through the cable gland.
  • Connect to terminal 70V: white-green or 100V: white-red.
  • Select the required power by changing the position of the black wire connected to the transformer; choose according to the label inside the loudspeaker.
  • Fasten bracket with 1-3 screws.
  • Fasten the lid with a torque of 1.5 Nm.
  • To change the loudspeaker's position, please adjust the bracket (by loosening/tightening the screws) as required.
  • For optimum performance, always use the correct voltage/power and operate within the frequency limits as stated.
General
Rated power 6 W

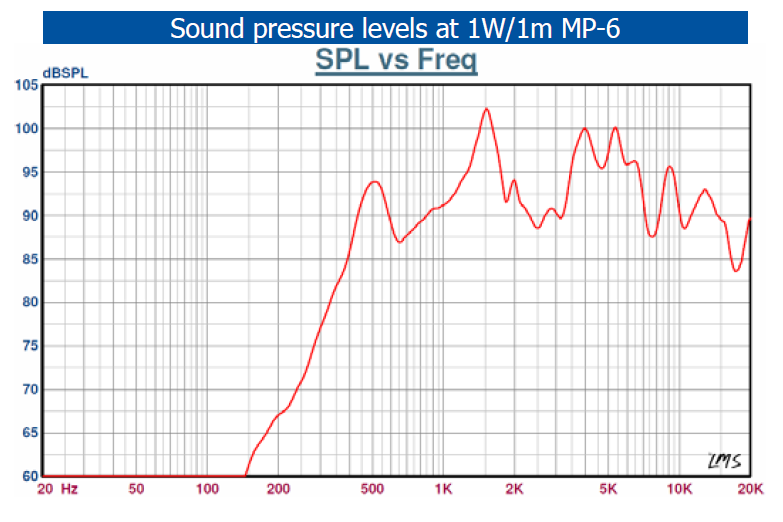

SPL 1W / 1 m 100 dB
SPL rated power 107 dB
Effective frequency range 300 - 20000 Hz
Dispersion (-6dB) 1kHz / 4kHz 178° / 62°
Enclosure material / Color PA - (V0) / RAL 7035
Mounting material Plastic bracket
Dimensions Ø97 x 132D mm
Termination Spring clamp
Connection 1x M20 cable gland, 1x M20 blanking plug
M20 cable gland sealing range 5 - 12 mm
Weight 0.62 kg
IP-rating 67
Max. / min. ambient temperature 110°C / -40°C
Thermal protection Integrated thermal fuse
Environmental Condition Exposed

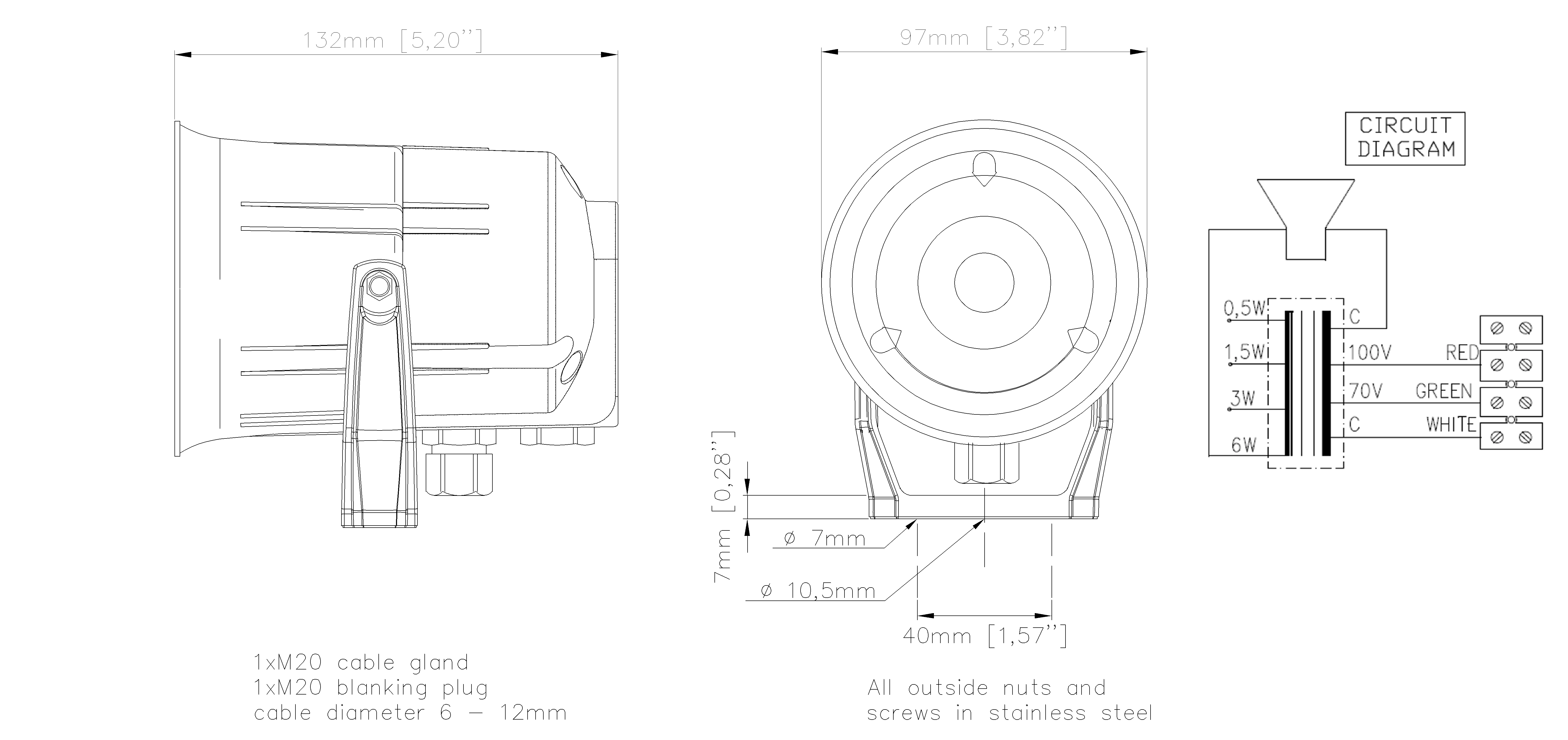

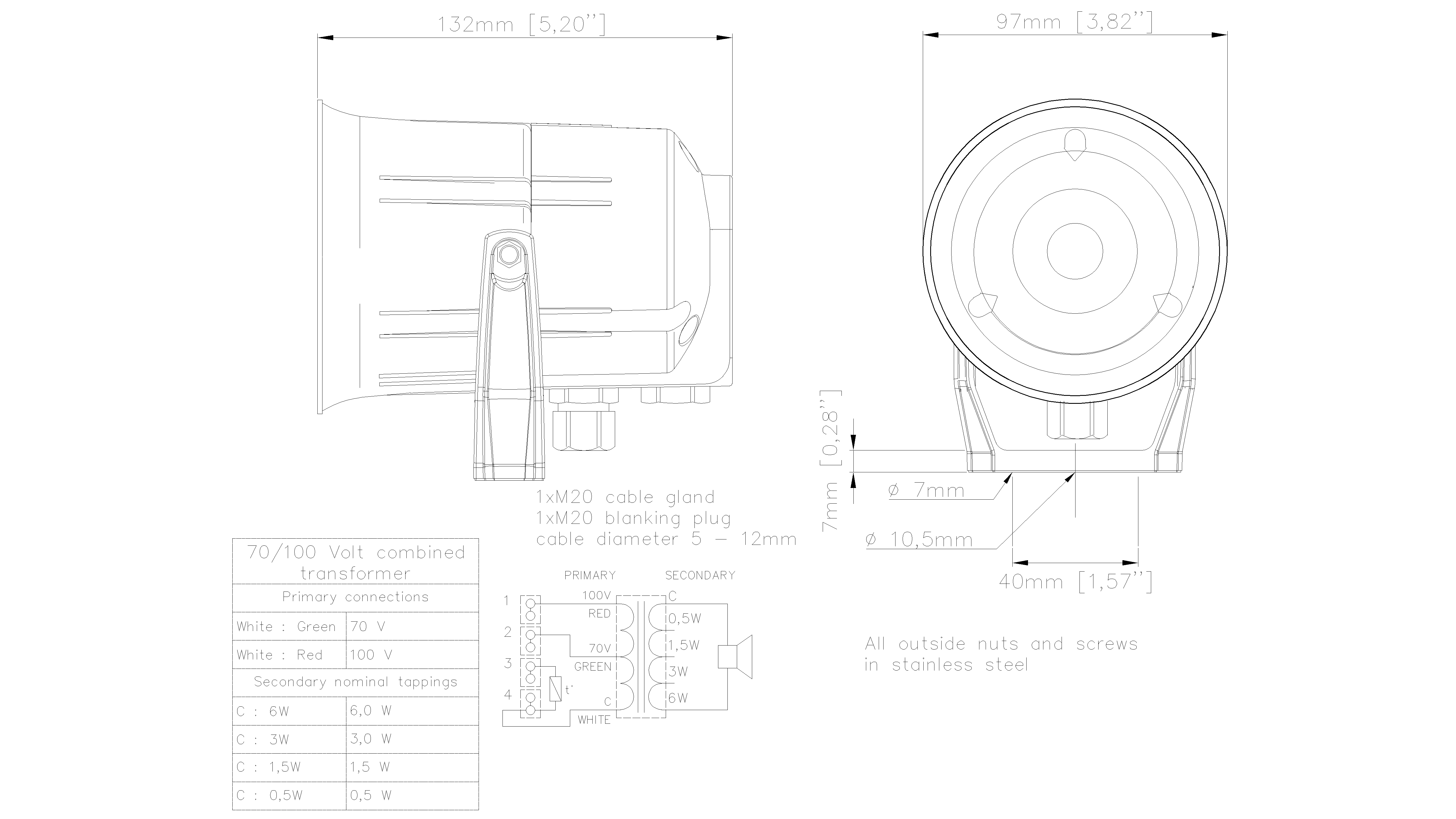

2131000159-HP-6CT-MED_Dimensional_Drawing



4000015280-HP-6CTF-Image

HP-6C

HP-6C/20, Mini Horn Loudspeaker, 6W, 20 Ohm, IP67

Item Number: 4000016482

4000015280-HP-6CTF-Image

HP-6CTF

Mini Horn Loudspeaker, 6W, 100V, IP67

Item Number: 4000015280
