HP-6CTF

Item Number: 4000015280

Mini Horn Loudspeaker, 6W, 100V, IP67

  • 70V / 100V
  • Tapping: 0,5W - 1,5W - 3W -  6W
Marine 40x40 ico Onboard communication
IP67 IP67
  • General purpose 6W horn loudspeaker
  • Especially suitable for use in industrial sites or tough environments

Installation, Operation and Maintenance Procedures

  • Remove the lid and lead cable through the cable gland.
  • Connect to terminal 70V: white-green or 100V: white-red.
  • Select the required power by changing the position of the black wire connected to the transformer; choose according to the label inside the loudspeaker.
  • Fasten bracket with 1-3 screws.
  • Fasten the lid with a torque of 1.5 Nm.
  • To change the loudspeaker's position, please adjust the bracket (by loosening/tightening the screws) as required.
  • For optimum performance, always use the correct voltage/power and operate within the frequency limits as stated.
General
Material / Color Polyamide / RAL 7035

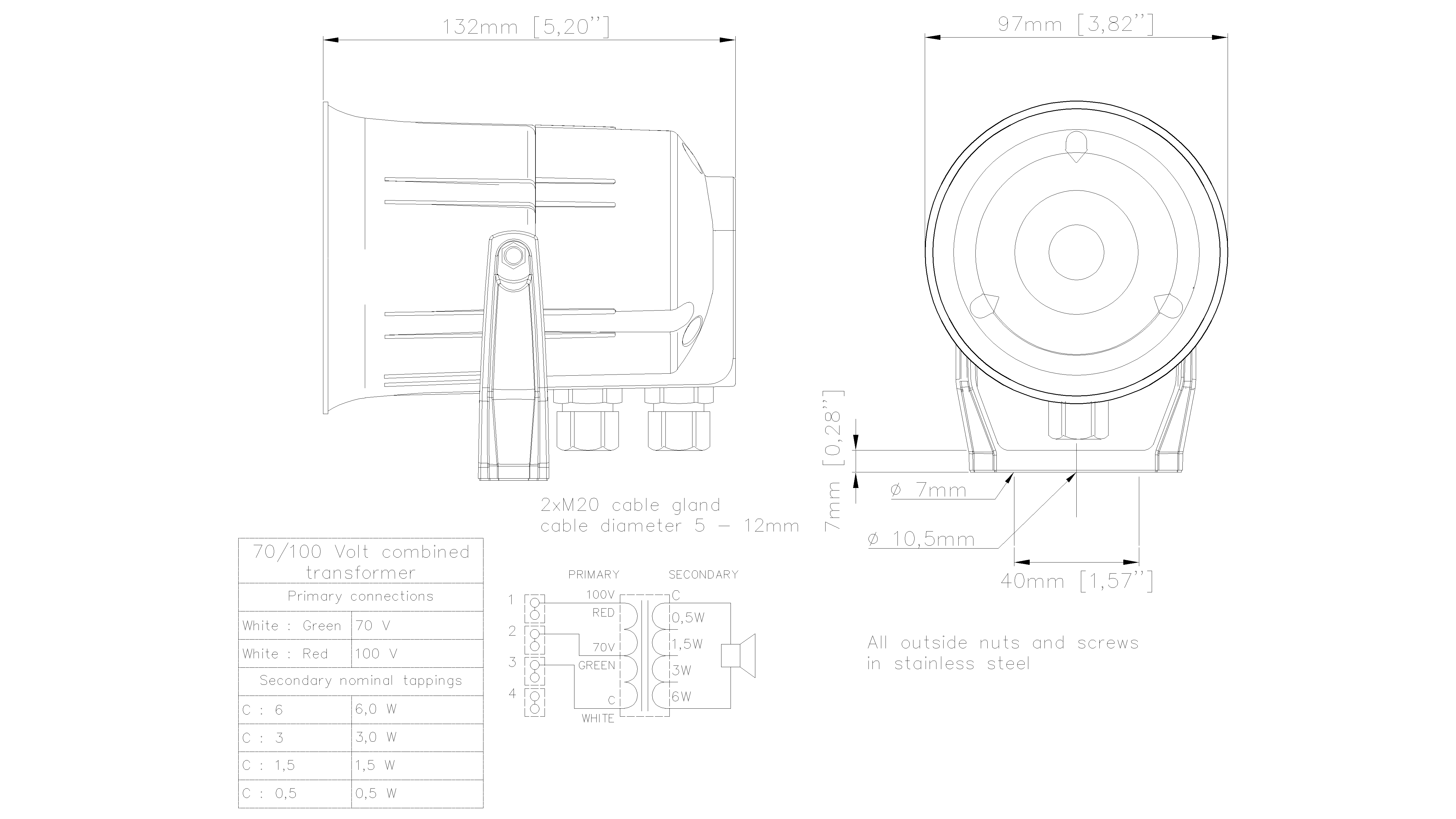

Dimensions Ø97 x 132D mm
Mounting Bracket
Termination Internal screw terminals
Weight 0.6 kg
Rated power 6 W
SPL 1W / 1 m 100 dB
SPL rated power 107 dB
Effective frequency range 300 - 20000 Hz
Dispersion (-6dB) 1kHz / 4kHz 178° / 62°
IP-rating 67
Max. / min. ambient temperature 110°C / -40°C
Environmental Condition Exposed
