HP-6C

Item Number: 4000016482

Horn Loudspeaker 6W

Marine 40x40 ico Onboard communication
IP67 IP67
  • General purpose 6W horn loudspeaker available in both low ohmic and 100V versions
  • Especially suitabable for use in industrial sites or tough environments

.

General
Material / Color Polyamide / RAL 7035

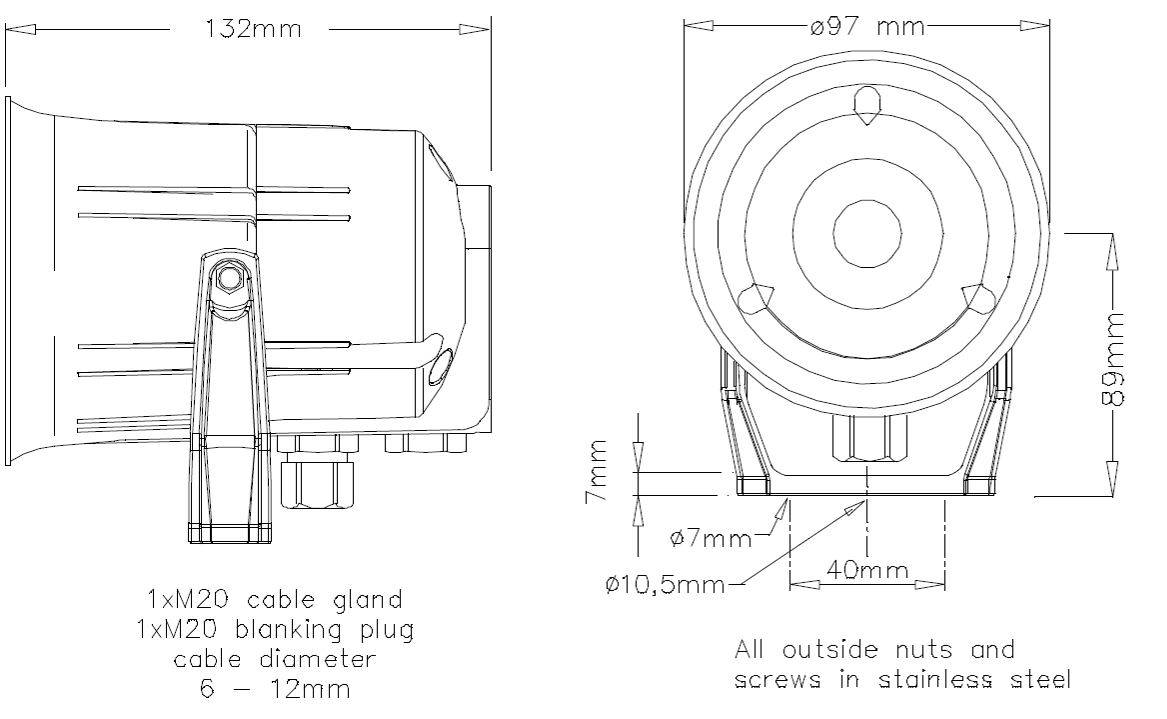

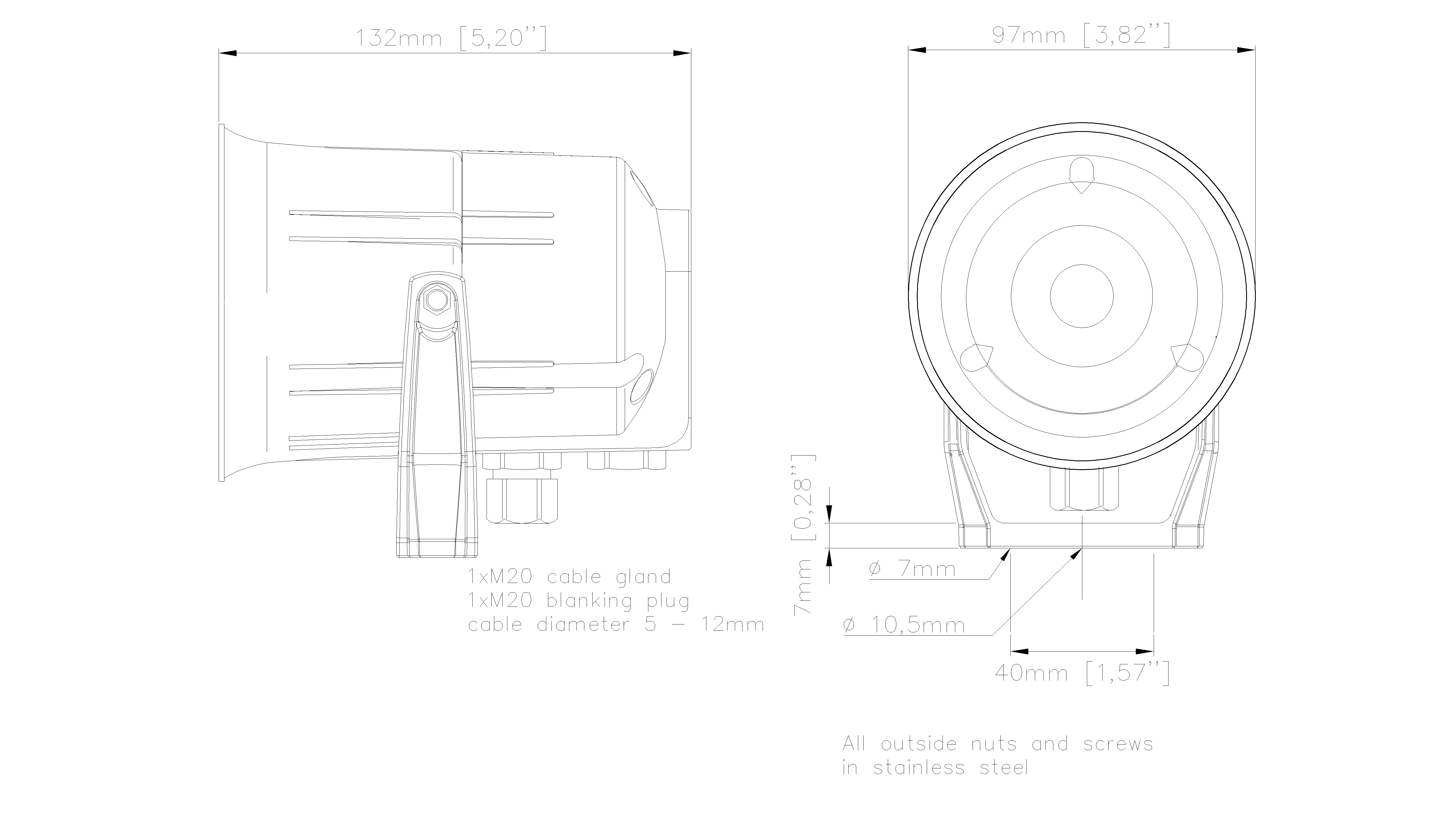

Dimensions Ø97 x 132D mm
Mounting Bracket
Termination Internal screw terminals
Weight 0.7 kg
Rated / Max power 6 W / 10 W
SPL 1W / 1 m 100 dB
SPL rated power 107 dB
Effective frequency range 300 - 20000 Hz
Dispersion (-6dB) 1kHz / 4kHz 178° / 62°
IP-rating 67
Max. / min. ambient temperature 110°C / -40°C
Environmental Condition Exposed
Product variants
4000015280 HP-6CTF Mini Horn Loudspeaker, 6W, 100V, IP67 with fuse
4000016482 HP-6C/20 Mini Horn Loudspeaker, 6W, 20 Ohm, IP67
