ITCS-C8
ITCS-C8
ITCS-C8 layout drawing

ITCS-C8

Item Number: 4000016475

Calling unit, for call from sauna, bulkhead mounting

Call unit for sauna

Mechanical
Dimensions (WxHxD) 80x125x57 mm
Weight 0.5 kg
Cable inlet (gland) 1 x M20
Temperature < 130°C

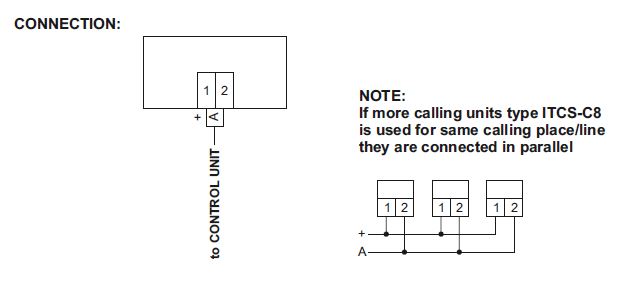

ITCS-C8 - connection

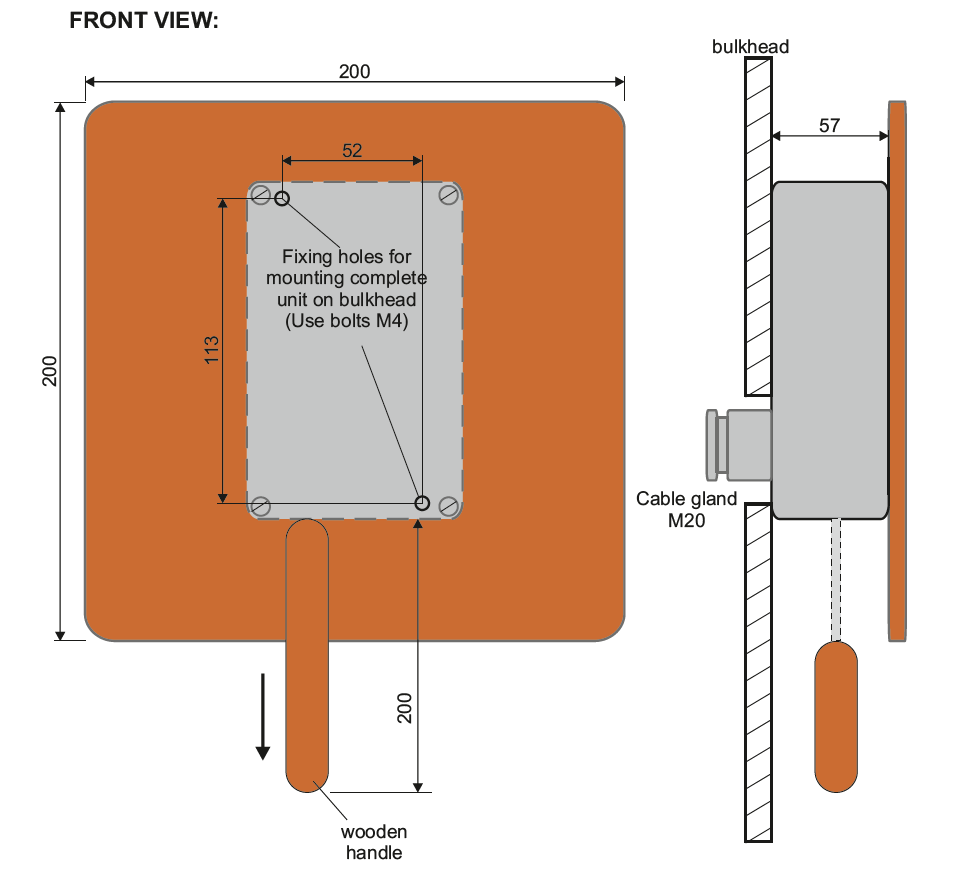

ITCS-C8 outline

Date Name Category Size Document
7.06.2024 MD-SDoC-4000016475-IHM-8003-57862-177309 Declaration 70.89 KB Login to download
21.02.2024 Calling system ITCS, ITCS-A, documentation, ver3 Manual 2.84 MB Download
