P-0005

Item Number: 4000011249

Hearing-Protective Headset

  • Package contains stowage bracket



  • Rugged headset for Industrial environments
  • 10-meter cable and plug
  • Low smoke and halogen free cable
  • Excellent noise performance
  • High attenuating ear shells
  • CENELEC safety standards: EN 60079-0: 2012 + A11: 2013 EN 60079-11: 2012
  • IEC safety standards: IEC 60079-0: 2011, IEC 60079-11: 2011
Marine 40x40 ico Onboard communication

The P-0005 is a hearing-protective headset for use together with the Command Intercom System (Talk-Back) substations in noisy environments. The headset is equipped with high attenuating shells with optimised acoustic design and excellent room for the ears for the best possible sound quality and comfort. The headset has a quick positioning noise-cancelling boom microphone.

.

Mechanical

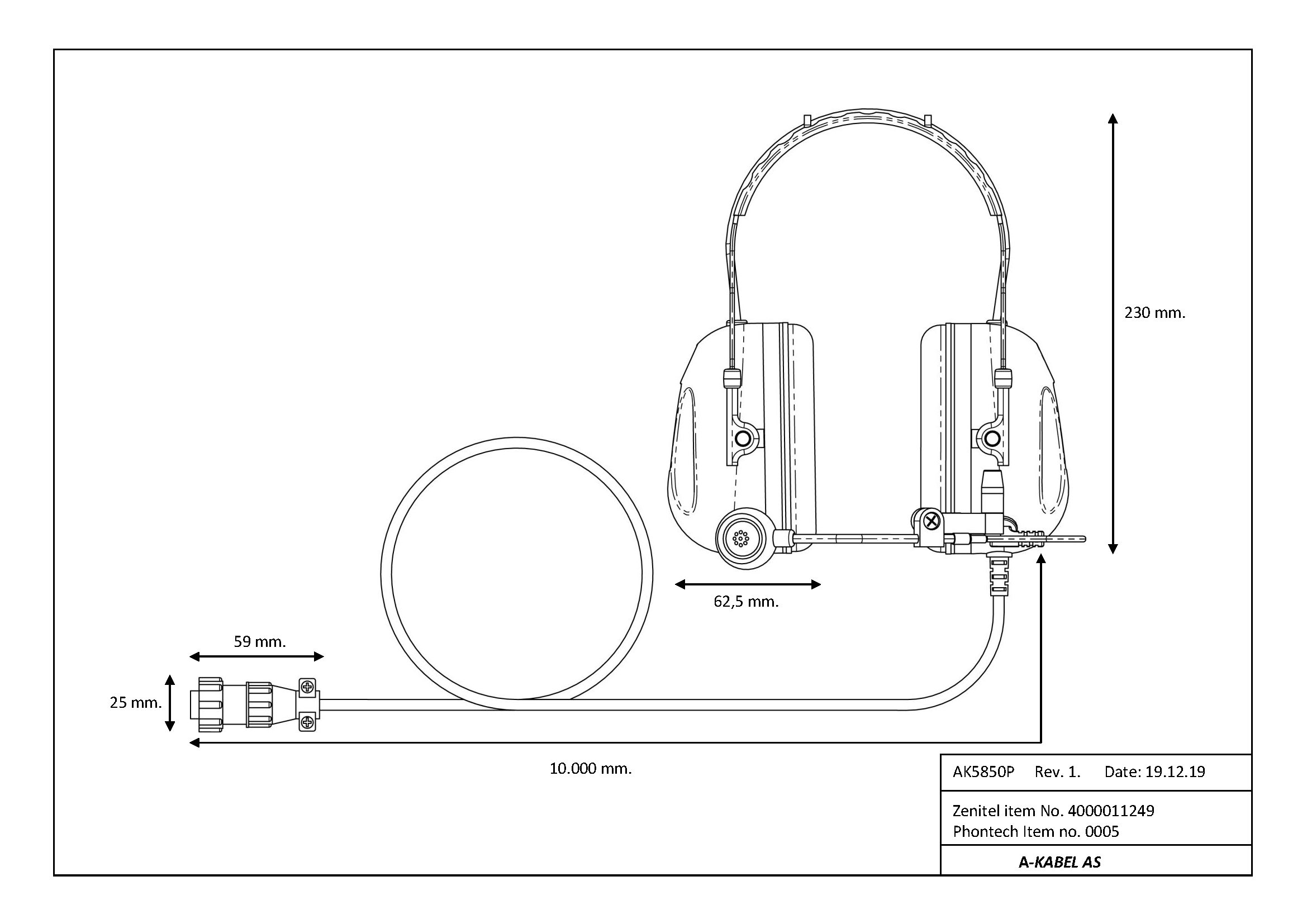

Dimensions (HxW) Approximately 230 x 125 mm
Weight 0.5 kg
Cable 10-meter flexible durable cable
Electrical
Termination 4-pin plug
Microphone Dynamic, Noise Cancelling, -57+/-3dB (0dB=1V/pa 1 kHz), nom 230Ω
Earphone 27 mm. diameter, 150 Ohm+-15 %, Parallell connection, frequency response: 50Hz-10KHz.
Environmental
Temperature -30°C to +60°C
Humidity <90% humidity, -20-+50°C
Ingress Protection Rating IP-54 (when in use)
Attenuation Rating (HML) H=31dB / M=26dB / L=20dB
Attenuation Rating (SNR) 29 dB

P-0005 Headset wiring



S007D - Skjema

Date Name Category Size Document
21.02.2024 MD-SDoC-4000011249-IHM-8003-41715-68969 Declaration 71.83 KB Login to download
23.11.2022 DECLARATION OF CONFORMITY - A-kabel Headsets-2022.11.16 Declaration 100.99 KB Download
17.11.2022 CIS_31xx_DoC_11.11.2022 Declaration 82.25 KB Download
