P-9003

Item Number: 4000017572

Substation for Headset

  • Built-in call relay, max 8A
  • Call lamp
  • Plug for connection of headset or handheld microphone
  • CALL button
  • Complies with IEC 60945 Standard for Marine Equipment
  • RMRS type approval

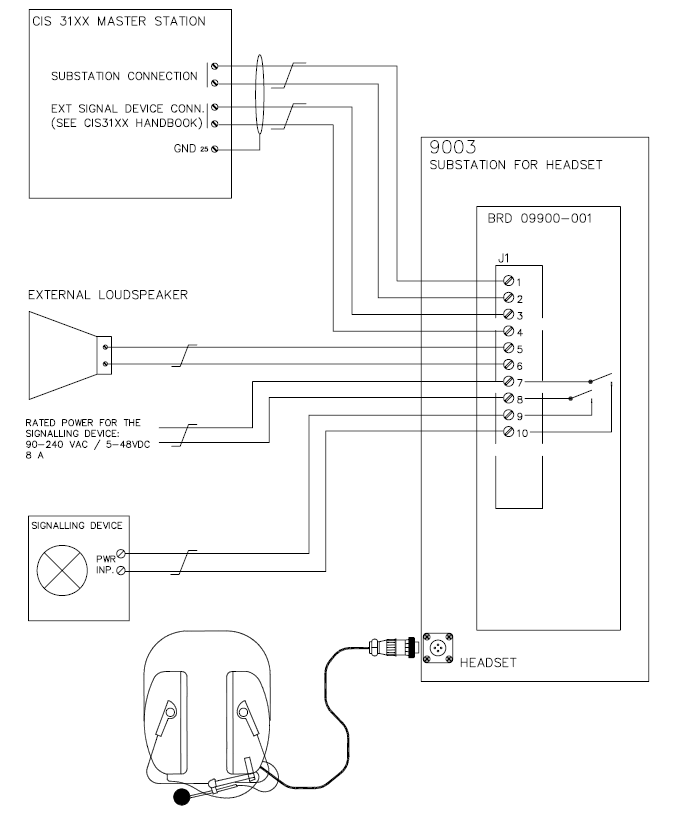

The P-9003 is a weatherproof Command Intercom System (Talk-Back) substation for industrial and noisy environments such as engine, steering gear and thruster rooms. It interfaces an external loudspeaker, external call signal device (flash/rotating light/hooter/siren) and a pluggable hearing protective headset. The unit is equipped with a CALL button for attention request and a call lamp for visual call indication.

Mechanical
Dimensions (WxHxD) 130x124x52 mm (depth 72 mm including headset connector)
Weight 0.3 kg
Color RAL 9005/9006
Material PC / ABS blend, ABS
Mounting Wall
Fixing 4 x M3 bolts
Access Front
Cable Entry Bottom/Top
Gland Type 3 x M20
Electrical
Power Supply (24 VDC) From central/line supply
Switchin current 8A
Termination Screw terminals ≤ 1.5 mm2
Compass Safe Distance > 5 m
Environmental
Temperature -25°C to +55°C (Storage: -25°C to +70°C)
Humidity +93% (at +40°C)
Ingress Protection Rating IP-44




VML 1520

VML-1520

Horn Loudspeaker 15W, 20 OHM Waterproof

P-9017

Handheld microphone, noise cancelling
