P-9009

Item Number: 4000017574

Call Unit with Socket

  • Connector for portable talk-back unit P-0010
  • CALL button
  • Complies with IEC 60945 Standard for Marine Equipment
  • RMRS type approval

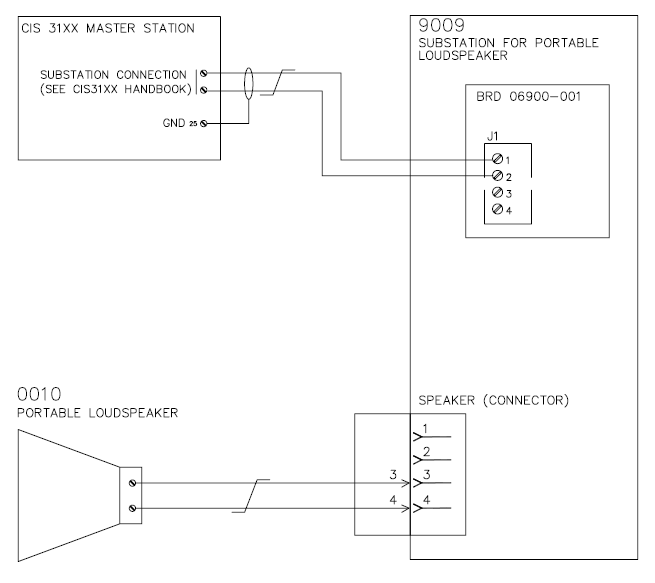

The P-9009 is a weatherproof Command Intercom System (Talk-Back) substation for industrial and outdoor environments. It interfaces the pluggable, portable talk-back unit, P-0010, for 2-way communication.

The unit is equipped with a CALL button for attention request.

.

Mechanical

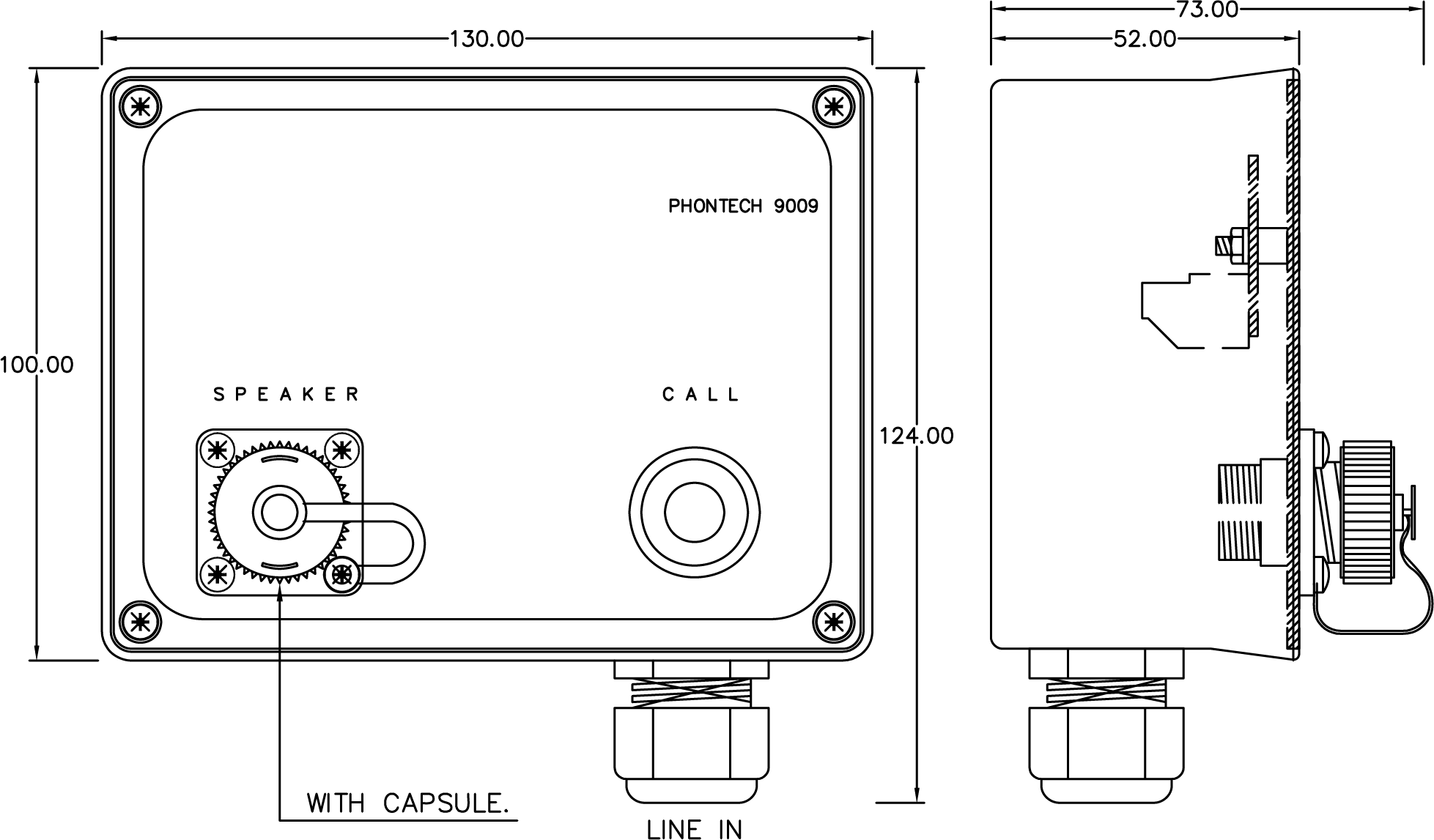

Dimensions (WxHxD) 130x124x52 mm (depth 72 mm including connector)
Weight 0.3 kg
Color RAL 9005/9006
Material PC / ABS blend, ABS

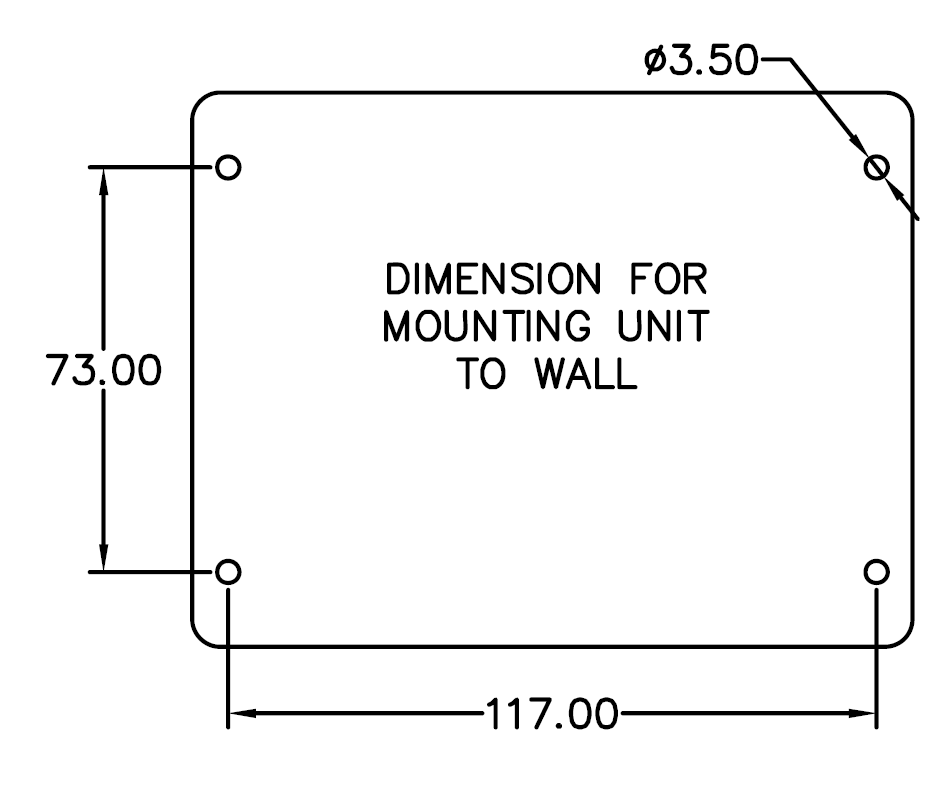

Mounting Wall
Fixing 4 x M3 bolts
Access Front
Cable Entry Bottom/Top
Gland Type 1 x M20
Electrical
Power Supply From central/line supply
Termination Screw terminals ≤ 2.5 mm2
Compass Safe Distance > 5 m
Environmental
Temperature -25°C to +55°C (Storage: -25°C to +70°C)
Humidity +93% (at +40°C)
Ingress Protection Rating IP-56
