P-0010

Item Number: 4000011252

Portable Loudspeaker

  • 10-meter cable and plug for P-9009
  • 2-way loudspeaker
  • PTT
  • Saltwater resistant
  • Curled cable and plug
  • Weatherproof
  • Complies with IEC 60945 Standard for Marine Equipment
  • RMRS type approval
Marine 40x40 ico Onboard communication

The P-0010 is a weatherproof portable loudspeaker delivered with a 10-meter cable and plug for interfacing substation P-9009 for two-way communication.





.

Mechanical
Dimensions (WxH) 139x197 mm
Weight 1.9 kg
Color RAL 7035
Material Ronfalin C110
Mounting Wall
Fixing 4 x M5 bolts
Access Front
Electrical
Termination CPC 1, 4 pole, Male
Compass Safe Distance > 5 m
Environmental
Temperature -25°C to +55°C (Storage: -25°C to +70°C)
Humidity +93% (at +40°C)
Ingress Protection Rating IP-56

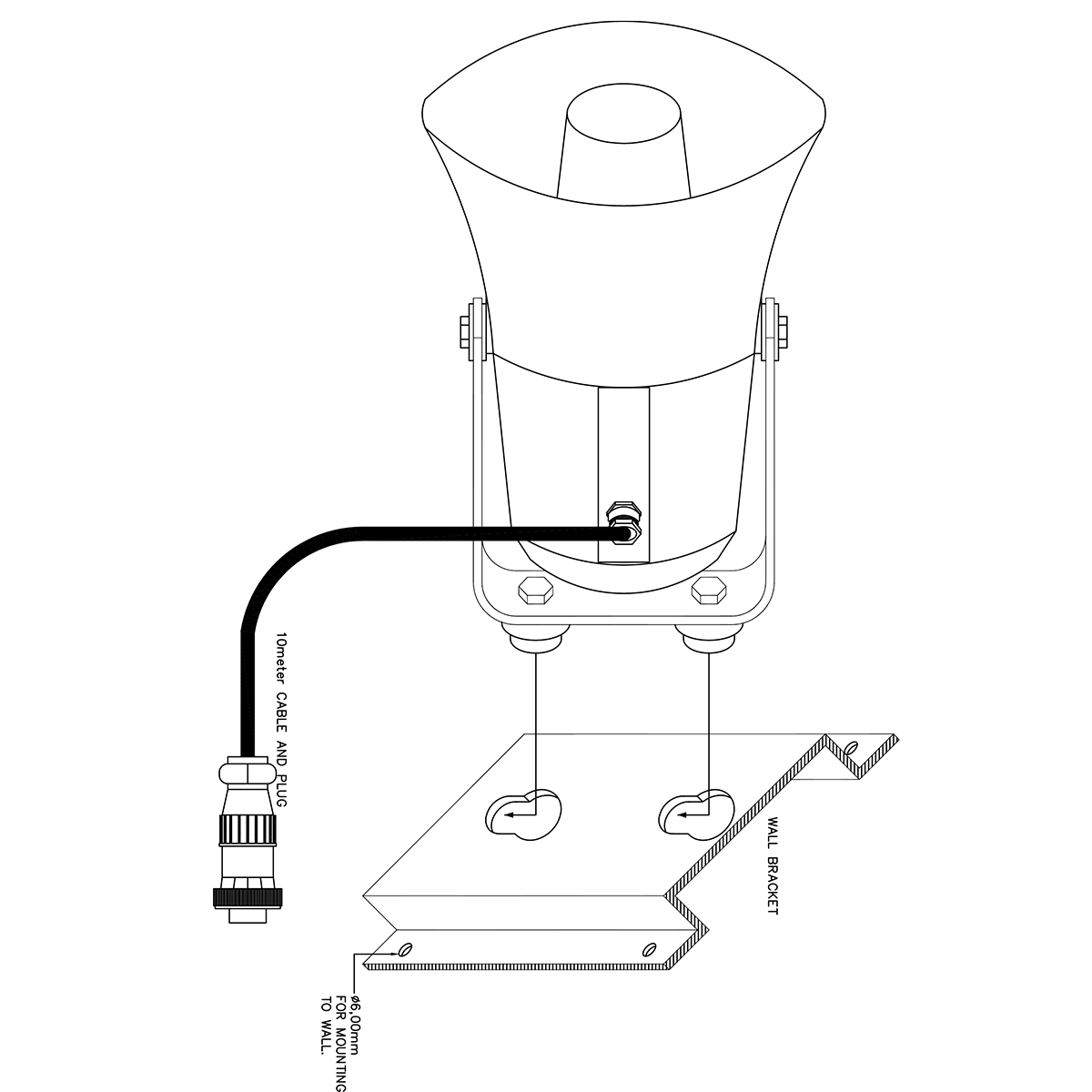

Dimensional Drawing P-0010
Date Name Category Size Document
9.08.2023 MD-SDoC-4000011252-IHM-8003-41808-145981 Declaration 72.17 KB Login to download
24.02.2023 4000011252 P-0010 CAD Drawing.zip CAD 2D 183.39 KB Login to download
17.11.2022 CIS_31xx_DoC_11.11.2022 Declaration 82.25 KB Download
