2990000067 - Power supply 100-240VAC-24VDC 1A

Power Supply 100-240VAC/24VDC 1A

Item Number: 2990000067

Switched-mode power supply, 1-phase, 24 VDC output voltage, 1A current

  • Model: Wago 787-1602
  • Switched-mode power supply
  • Natural convection cooling when horizontally mounted
  • Enclosed for use in switchgear cabinets
  • Bounce-free switching signal (DC O K)
  • Suitable for both parallel and series operation
  • Electrically isolated output voltage (SELV) per UL 60950-1; PELV per EN 60204
  • DNV approval - EMC location class B only in conjunction with the filter 787-980
INPUT
Phases 1
Nominal input voltage 100 to 240 VAC
Input voltage range 85 to 264 VAC; 120 to 300 VDC
Input voltage derating -2.5 %/V (< 95 VAC)
Input current ≤ 0.28 A (240 VAC); ≤ 0.49 A (100 VAC)
Discharge current ≤ 0.25 mA
Inrush current ≤ 30 A
Power factor correction (PFC) Passive
Mains failure hold-up time ≥ 120 ms (230 VAC); ≥ 20 ms (100 VAC)
OUTPUT
Nominal output voltage 24 VDC (SELV)
Output voltage range 23 to 28.5 VDC (adjustable)
Factory preset 24 VDC
Nominal output current 1 A / 1.2 A@ max. 40 °C
Nominal output power 24 W
Residual ripple ≤ 20 mV (peak-to-peak)
Overload behavior Constant current
SIGNALING AND COMMUNICATION
Signaling 1 x DC OK LED (green) 1 x Active signal output DC OK (24 VDC; 20 mA)
Operation status indicator LED green
EFFICIENCY
Power loss ≤ 1 W; ≤ 4 W (230 VAC; nominal load)
Max. power loss 5 W (100 VAC / 24 VDC; 1 A)
Efficiency 86 %
FUSE PROTECTION
Internal fuse T 2 A / 250 VAC
External fuse (required) External DC fuse required for DC input voltage
External fuse (recommended) Circuit breaker: 6 A, 10 A, 16 A; Tripping characteristic: B or C
GENERAL

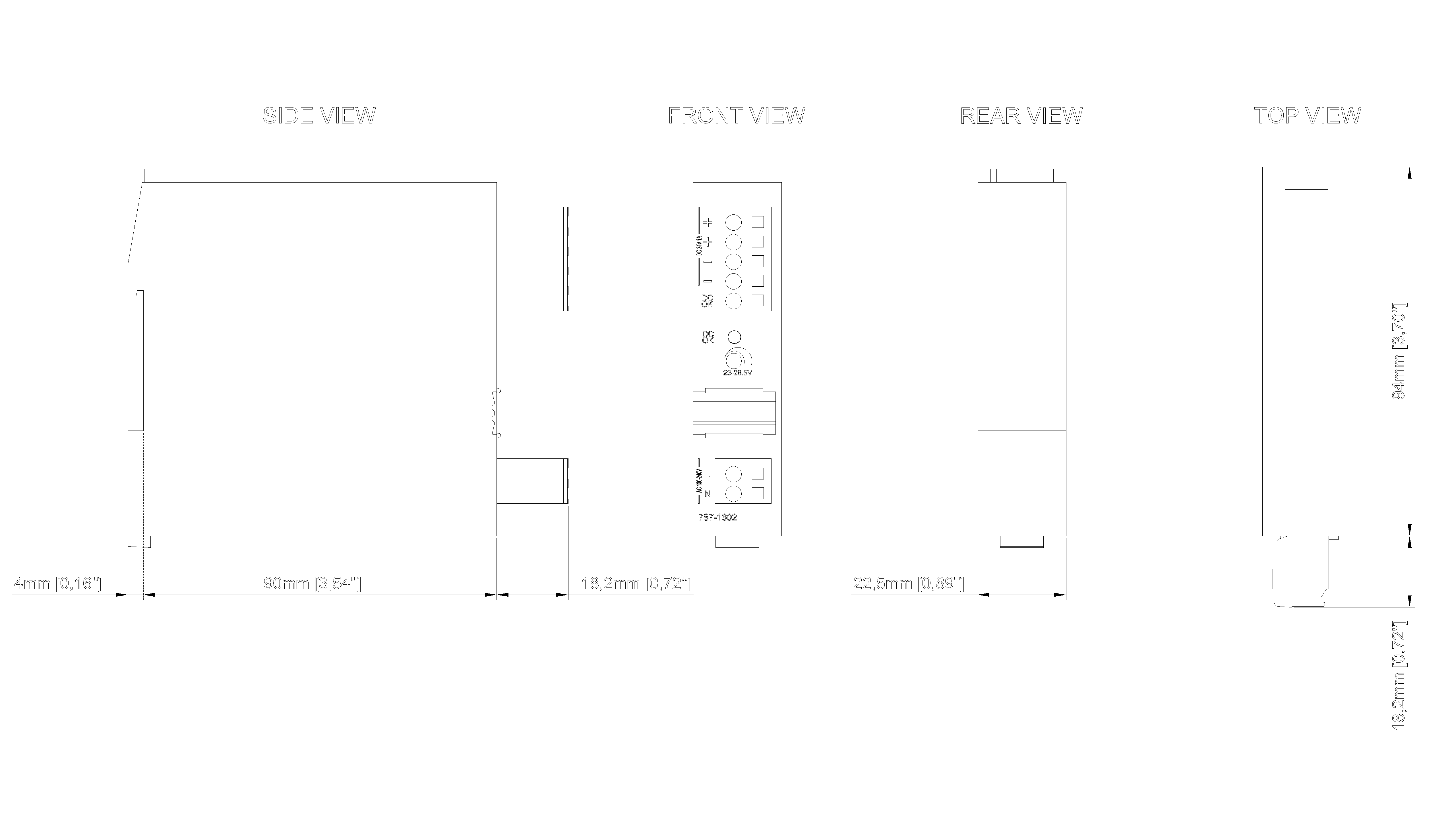

Dimensions (WxHxL) 22.5mm x 90mm x 107.5mm
Weight 128 g
Type of mounting DIN-35 rail
Protection class II
Degree of protection IP20
ENVIRONMENTAL
Operating Temperature -25 to 70 °C
Storage Temperature -25 to 85 °C
Relative humidity 5-96 % (no condensation permissible)
Derating -3 %/K (> 50 °C)
STANDARDS
Conformity marking CE
Standards/specifications EN 61010-1, EN 61010-2-201, EN 61204-3, EN 60335-1, UL 60950-1, UL 508, DNV, SEMI F47
