QNP-6320HS Stainless PTZ Dome Network Camera

Item Number: 2310111078

Dome Network Camera

  • Maximum 2MP (1920 x 1080) resolution
  • 4.44 ~ 142.6 (32x) optical zoom
  • H.265, H.264, MJPEG codec support, Multiple streaming
  • WiseStreamII support
  • Day & Night (ICR), WDR (120dB)
  • Directional detection, Tampering, Motion detection
  • SD/SDHC/SDXC 1 slot 256GB
  • IP67, IP66, NEMA4X, IK10
  • Material : SUS316L
ONVIF Conformant
IP66 IP66
IP67 IP67
IK10 IK10
H.264

The QNP-6320HS Stainless PTZ Dome Network Camera features 2MP resolution, WiseStreamII support, triple codec H.265/H.264/MJPEG, 4.44 ~ 142.6mm (32x) optical zoom ratio, Day & Night (ICR), PoE+ (IEEE802.3at, Class4), 120dB WDR, Directional detection, Tampering, Motion detection, Audio detection, Digital auto tracking, and SD card slot (SD/SDHC/SDXC memory slot (256GB)).

QNP-6320HS Stainless PTZ Dome Network Camera

It has compliance with ONVIF profiles G, S, and T can be used with a wide range of surveillance devices. This PTZ camera is housed in an IP67-, NEMA 4X-, and IK10-rated stainless steel enclosure that is suitable for outdoor marine applications. With the IR cut filter, the camera can be used for both day and night functionality.

Improved bandwidth efficiency with WiseStreamII support, H.265

WiseStreamII, the advanced compression technology, can reduce bandwidth by 50% by using dynamic technologies. When combined with H.265, the bandwidth efficiency can be improved up to 75% compared to the current H.264 technology.

Streaming options include Unicast (20 users) and Multicast (128 users) with Multiple streaming up to 10 profiles.

Supported browsers include Chrome, Safari, Firefox, and Edge.



VIDEO
Imaging Device 1/2.8" CMOS
Resolution 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz)
Min. Illumination Color: 0.05Lux(F1.6, 1/30sec)
BW: 0.005Lux(F1.6, 1/30sec)
LENS
Focal Length (Zoom Ratio) 4.44~142.6mm(32x) zoom
Max. Aperture Ratio F1.6 (Wide) ~ F4.4(Tele)
Angular Field of View H: 64.66(Wide)~2.29(Tele) / V: 38.08(Wide)~1.30(Tele)
Focus Control Oneshot AF
Lens Type DC auto Iris
Pan / Tilt Range 360˚ Endless/ 105(-15~90)
OPERATIONAL
Min. Object Distance 1.5m (4.92ft)(Wide), 2m (6.56ft) (Tele)
Camera Title Displayed up to 85 characters
Day & Night Auto (ICR)
Backlight Compensation BLC, HLC, WDR, SSDR
Wide Dynamic Range 120dB
Digital Noise Reduction SSNR V
Motion Detection 8ea, 8point polygonal zones
Privacy Masking 32ea, Quadrangle Support - Color: Grey/Green/Red/Blue/Black/White - Solid/Mosaic
Gain Control Off / Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor / Mercury / Sodium
Digital Image Stabilization Support(built-in gyro sensor)
Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec)
Video Rotation Flip, Mirror
Intelligent Video Analytics Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line * Audio detection(with NW I/O Box)
Alarm Triggers Analytics, Network disconnect * Alarm input(with NW I/O Box)
Alarm Events File upload via FTP and e-mail, Notification via e-mail, SD/SDHC/SDXC or NAS recording at event triggers, PTZ Preset, Handover * Alarm output(with NW I/O Box)
NETWORK
Ethernet RJ-45 (10/100BASE-T)
Video Compression H.265/H.264,MJPEG
Smart Codec Manual(5ea area), WiseStreamⅡ
Bitrate Control H.264/H.265: CBR or VBR, MJPEG: VBR
Streaming Unicast(20 users) / Multicast (128 user), Multiple streaming(Up to 10 profiles)
IP IPv4, IPv6
Protocol TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
Security HTTPS(SSL) Login Authentication, Digest Login Authentication, IP Address Filtering, User access log, 802.1X Authentication(EAP-TLS, EAP-LEAP)
Storage Micro SD/SDHC/SDXC 1slot 256GB
Application Programming Interface ONVIF Profile S/G/T, SUNAPI(HTTP API), Wisenet open platform
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
ENVIRONMENTAL
Operating Temperature / Humidity Normal : -35°C~+55°(-31°F ~ +131°F) / Intermittent : -40°C~+60°C(-40°F ~ +140°F) * Start up should be done at above -25°C Less than 95% RH(Non-condensing)
Storage Temperature / Humidity -50°C~+60°C (-58°F~+140°F) / Less than 95% RH(Non-condensing)
ELECTRICAL
Input Voltage / Current PoE+(IEEE802.3at, Class4)
Power Consumption Max. 23W, Typ. 14W
MECHANICAL
Color / Material Silver / Stainless (SUS316L)
Dimensions (WxH) Ø227x299.2mm (8.94x11.78")
Weight 5.4Kg (11.93 lb)

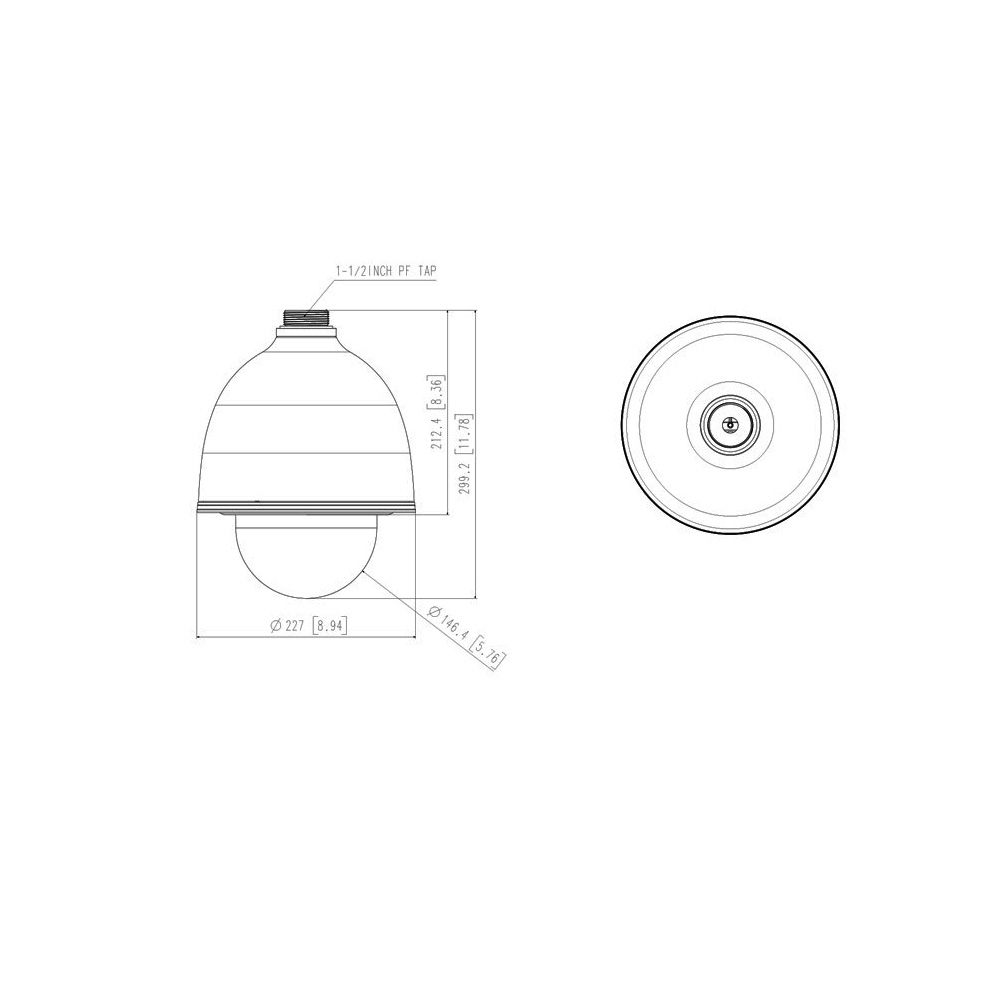

Dimensional Drawing QNP-6320HS Stainless PTZ Dome Camera
