2970000218_UPS-T91-BP36A

UPS-T91-BP36A

Item Number: 2970000218

External Battery Module for UPS-T91-1000, Tower

  • Compatible with UPS-T91-1000 unit
  • Available for runtimes up to 4 hours
  • Tower installation

EBM modules are essential on maritime vessels, offshore platforms, and energy facilities where continuous power to critical communication and control systems is vital. They extend UPS runtime for equipment such as intercom, IP telephony, navigation consoles, monitoring systems, and safety infrastructure.

GENERAL
Nominal battery voltage 36 VDC
Battery chemistry type Sealed lead-acid maintenance free
Battery capacity (Ah) 9 Ah
Compatible UPS model UPS-T91-1000
Dimensions W x D x H 142.3 x 396.3 x 218.4 mm / 5.6 x 15.6 x 8.6 in
Weight 20 kg / 44 lbs



Date Name Category Size Document
MD-SDoC-2970000218-IHM-8003-70767-185481 Declaration 53.83 KB Download
T91-Users-Manual Manual 1.64 MB Download
T91-flyer Brochure 1.68 MB Download

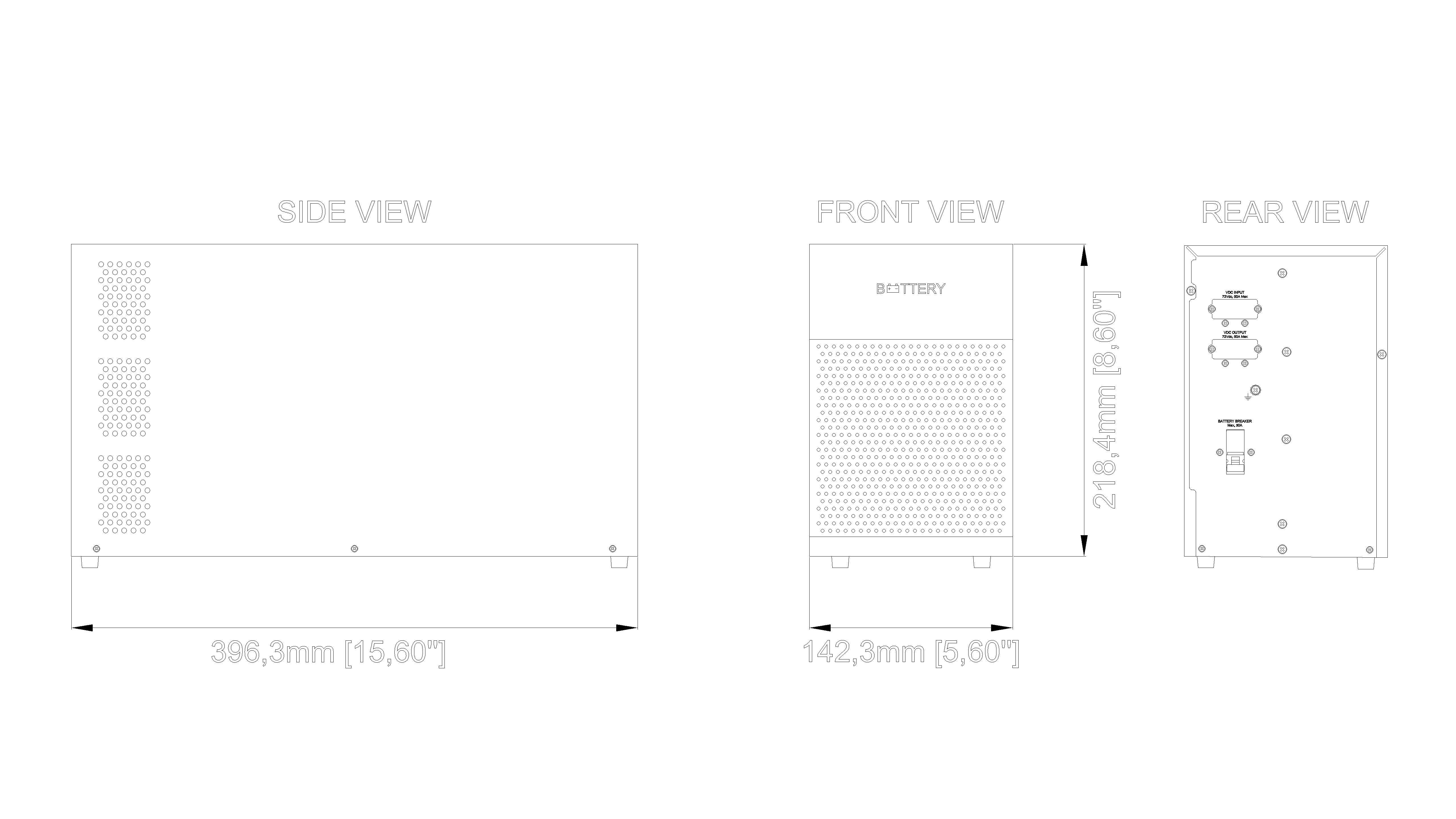

UPS-T91-BP36A_Dimensional_Drawing CAD 2D 439.79 KB Login to download
