2970000219_UPS-T91-BP72A

UPS-T91-BP72A

Item Number: 2970000219

External Battery Module for UPS-T91-3000, Tower

  • Compatible with UPS-T91-3000 unit
  • Available for runtimes up to 4 hours
  • Tower installation

EBM modules are essential on maritime vessels, offshore platforms, and energy facilities where continuous power to critical communication and control systems is vital. They extend UPS runtime for equipment such as PA/GA, intercom, IP telephony, navigation consoles, monitoring systems, and safety infrastructure.

GENERAL
Nominal battery voltage 72 VDC
Battery chemistry type Sealed lead-acid maintenance free
Battery capacity (Ah) 9 Ah
Compatible UPS model UPS-T91-3000
Dimensions W x D x H 188 x 419.1 x 317.5 mm / 7.4 x 16.5 x 12.5 in
Weight 37.2 kg / 82 lbs
Date Name Category Size Document
MD-SDoC-2970000219-IHM-8003-70767-207635 Declaration 53.82 KB Download
T91-Users-Manual Manual 1.64 MB Download
T91-flyer Brochure 1.68 MB Download

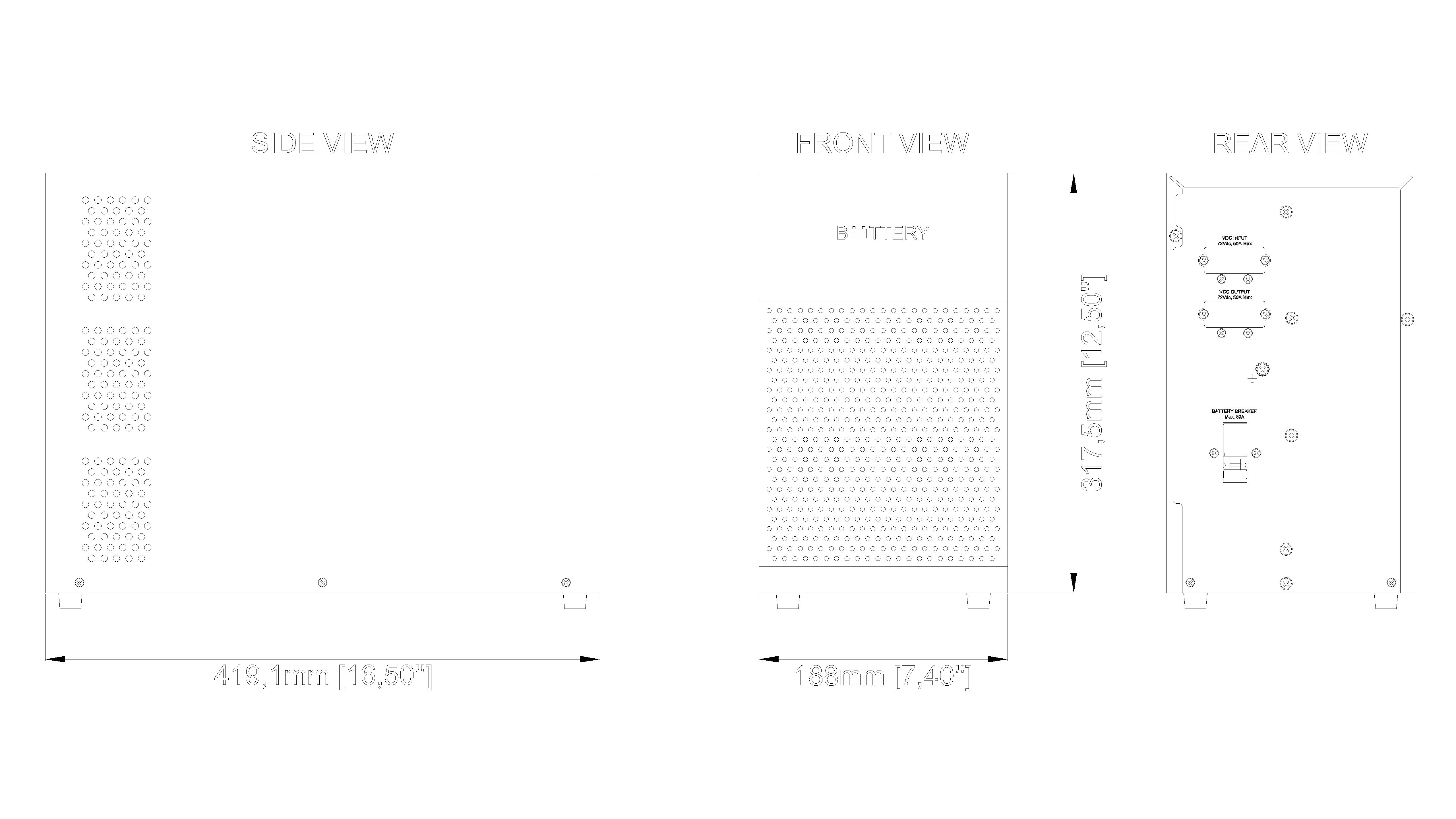

UPS-T91-BP72A_Dimensional_Drawing CAD 2D 438.18 KB Login to download
