XNV-6080RSA Stainless IR Dome Network Camera

Item Number: 2310111079

Dome Camera

  • 2 Megapixel (1920 x 1080) resolution
  • Color: 0.015Lux(F1.4, 1/30sec)
  • BW: 0Lux(IR LED on)
  • 2.8 ~ 12mm (4.3x) motorized varifocal lens
  • 60fps@all resolutions (H.265/H.264)
  • H.265, H.264, MJPEG codec supported, Multiple streaming
  • Motion detection, Tampering, Defocus detection
  • Hallway view, WiseStream II support
  • SD/SDHC/SDXC memory 2 slots (Total maximum 512GB)
  • IR viewable length 50m
  • IP66, IP6K9K, IK10+, NEMA4X
  • LDC, PoE Support
ONVIF Conformant
IP66 IP66
IK10 IK10
H.264

The XNV-6080RSA Stainless IR Dome Network Camera has features a 1/2.8" progressive scan CMOS sensor and 2.8-12mm motorized varifocal lens. The camera is able to produce videos at 1920 x 1080 resolution and features 4.3x zoom. A mechanical IR cut filter and built-in IR LEDs around the lens allow the camera to capture clear images of objects up to 164' away at night.

The camera has 2MP resolution and features WiseStreamII support, triple codec H.265/H.264/MJPEG, IR, PoE/12VDC, 24VAC, 150dB WDR, Defocus Detection, Hallway View, and more.

It has an SD card slot (SD/SDHC/SDXC up to 512GB).

Improved bandwidth efficiency with WiseStreamII support, H.265

WiseStream, the advanced compression technology, can reduce bandwidth by 50% by using dynamic technologies. When combined with H.265, the bandwidth efficiency can be improved up to 75% compared to the current H.264 technology. This reduction in bandwidth allows the CCTV system to perform its best.

Minimize image distortion by Lens Distortion Correction

Lens Distortion is typically shown in video on the straight lines near to the edges of an image making the straight lines look curved outward. With Lens Distortion Correction technology, imperfections in images are easily removed.

The XNV-6080RSA Stainless IR Dome Network Camera has IP66, IP6K9K, IK10+, and NEMA4X ratings making it ideal for the maritime industry.







VIDEO
Imaging Device 1/2.8" CMOS
Resolution 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate H.265/H.264: Maximum 60fps MJPEG: Maximum 60fps
Min. Illumination Color: 0.015Lux(F1.4, 1/30sec), BW: 0Lux(IR LED on)
Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480 for installation, USB: Micro USB Type B, 1280x720 for installation
LENS
Focal Length (Zoom Ratio) 2.8~12mm(4.3x) motorized varifocal
Max. Aperture Ratio F1.4(Wide) ~ F3.6(Tele)
Angular Field of View H: 119.5°(Wide)~27.9°(Tele) / V: 62.8°(Wide)~15.7°(Tele) / D: 142.1°(Wide)~32.0°(Tele)
Focus Control Simple focus
Lens Type DC Auto Iris, P iris
Pan / Tilt / Rotate Range 0˚~354˚ / 0˚~67˚ / 0˚~355˚
OPERATIONAL
IR Viewable Length 50m (164.04ft)
Camera Title Displayed up to 85 characters
Day & Night Auto (ICR)
Backlight Compensation BLC, HLC, WDR
Wide Dynamic Range 150dB
Digital Noise Reduction SSNRⅤ
Motion Detection 8ea, 8point Polygonal zones
Privacy Masking Color : Gray, Green, Red, Blue, Black, White, -Mosaic
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
LDC (Lens distortion correction) Support
Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec)
Video Rotation Flip, Mirror, Hallway view (90˚/270˚)
Intelligent Video Analytics Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Intrusion, Audio detection, Sound classification
Alarm I/O Input 1ea / Output 1ea
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm Events File upload via FTP and e-mail Notification via e-mail, SD/SDHC/SDXC or NAS recording at event triggers Alarm output Handover
NETWORK
Ethernet RJ-45 (10/100BASE-T)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Smart Codec Manual(5ea area), WiseStreamⅡ
Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480 for installation USB: Micro USB Type B, 1280x720 for installation
Bitrate Control H.264/H.265: CBR or VBR MJPEG: VBR
Streaming Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles)
Audio In Selectable(microphone in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Compression G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
Audio Communication Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm, Line out, Max.output level: 1Vrms
IP IPv4, IPv6
Protocol TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security HTTPS(SSL) Login Authentication, Digest Login Authentication, IP Address Filtering, User access Log 802.1X Authentication(EAP-TLS, EAP-LEAP)
Streaming Method Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles)
Storage Micro SD/SDHC/SDXC 2 slots, total capacity 512GB
Application Programming Interface ONVIF Profile S/G/T, SUNAPI(HTTP API), Wisenet open platform
Web Viewer Supported OS: Windows 8.1 or later, Mac OS X 10.13 or later Recommended Browser: Google Chrome Supported Browser: MS Internet Explorer 11, MS Edge, Mozilla Firefox (Windows 64-bit only), Apple Safari (Mac OS X only)
Webpage Language English, Korean, French, German, Spanish, Italian, Chinese, Russian, Japanese, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
ENVIRONMENTAL
Operating Temperature / Humidity -40°C ~ +55°C (-40°F ~ +131°F) / Less than 90% RH
Storage Temperature / Humidity -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH
ELECTRICAL
Input Voltage / Current PoE(IEEE802.3af), 12VDC, 24VAC
Power Consumption PoE: Maximum 12.95W, 12VDC: Maximum, 11.5W 24VAC: Maximum 14W
MECHANICAL
Color / Material Silver / Stainless (SUS316L)
Dimensions (WxH) Ø162x120.5mm (Ø6.38x4.74")
Weight 2.8kg (6.17lb)

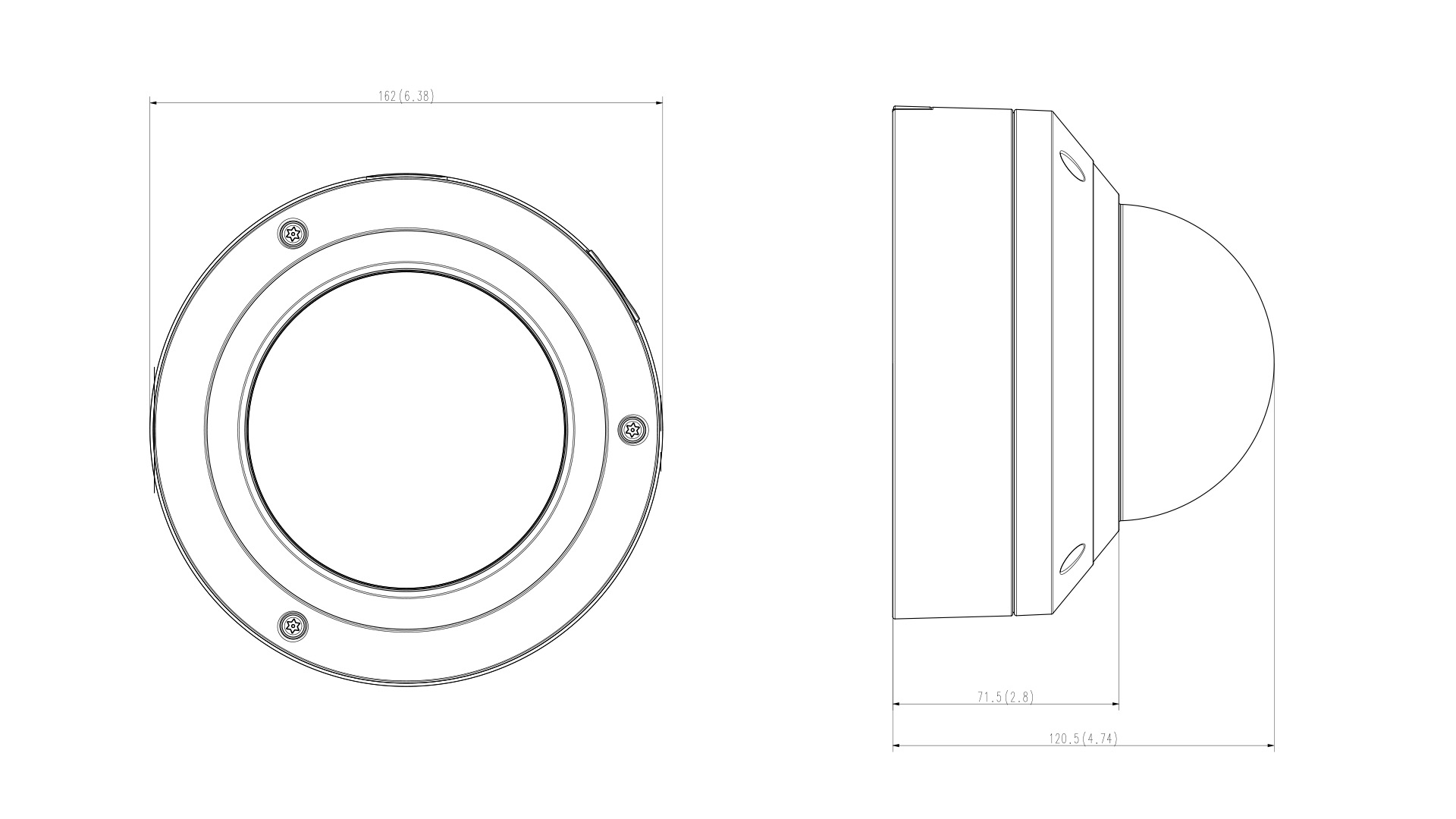

Dimensional Drawing XNV-608RSA 2MP Network Stainless Camera
