EX Heater with ex cable gland and cable

EX-HEAT-230

Item Number: 2810011019

EX Heater, IP66, 100W, T4, 230VAC

  • For use in hazardous areas
  • For use in wet areas (IP66)
  • DIN rail and screw mounting
  • Maintenance free
  • Temperature class T4
IP66 IP66
Atex

The EX-HEAT-230 is a robust, compact convection heater designed for use in hazardous areas. With its temperature class T4 rating (275 °F / 135 °C max.), this heater excels in preventing condensation formation, preventing temperature fluctuations, and providing frost protection in indoor and outdoor cabinets.

The heater has a 1m silicone connection cable (halogen-free).

Applications:

  • Enclosures and control cabinets in explosive environments
  • Encloser and cabinet where watertight thermostat is needed



    Specification
    Model Stego 02042.0-00
    Technical Data AC 230 V
    Heating capacity 100 W
    Rec. pre-fuse T (time-delay) 1.0 A

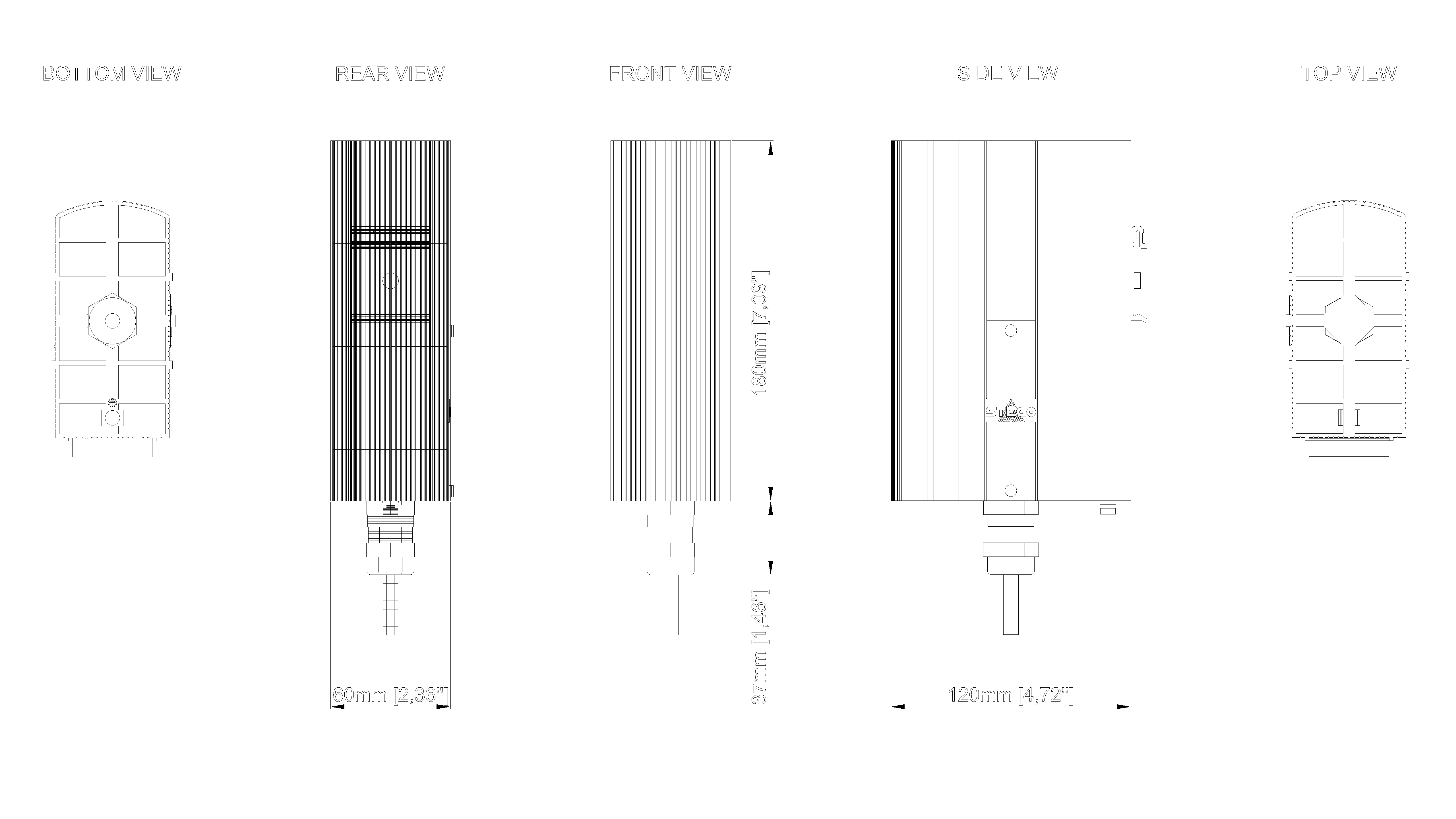

    Dimensions (D x W x H) 4.7 x 2.4 x 7.1" (120 x 60 x 180 mm)
    Weight approx. 3.1 lbs (1.4 kg)
    Technical Data
    Temperature class T4
    Ex Protection type II 2 GD Gases Ex db IIC T4 Gb
    Ex Protection type II 2 GD Dusts Ex tb IIIC T135 °C Db IP66
    Ambient temperature -76 to +122 °F (-60 to +50 °C)
    Surface temperature max. +275 °F (+135 °C)
    Heating body aluminum profile, silver anodized
    Connection silicone cable (halogen-free) 3 x AWG 18 (0.75 mm²), length 3 ft (1 m)
    Mounting clip for 35 mm DIN rail, EN 60715 for heating body sizes 3.2 x 1.9" and 4.7 x 2.4"; screw mounting with 2 mounting brackets for all heating body sizes, optional sideways mounting
    Mounting position vertical airflow (connection at bottom)
    Storage temperature -76 to +185 °F (-60 to +85 °C)
    Operating / Storage humidity max. 90 % RH (non-condensing)
    Protection type / Protection class IP66 / I (grounded)
    Approvals EPS 16 ATEX 1 109 X
    IECEx EPS 16.0048X
    EAC

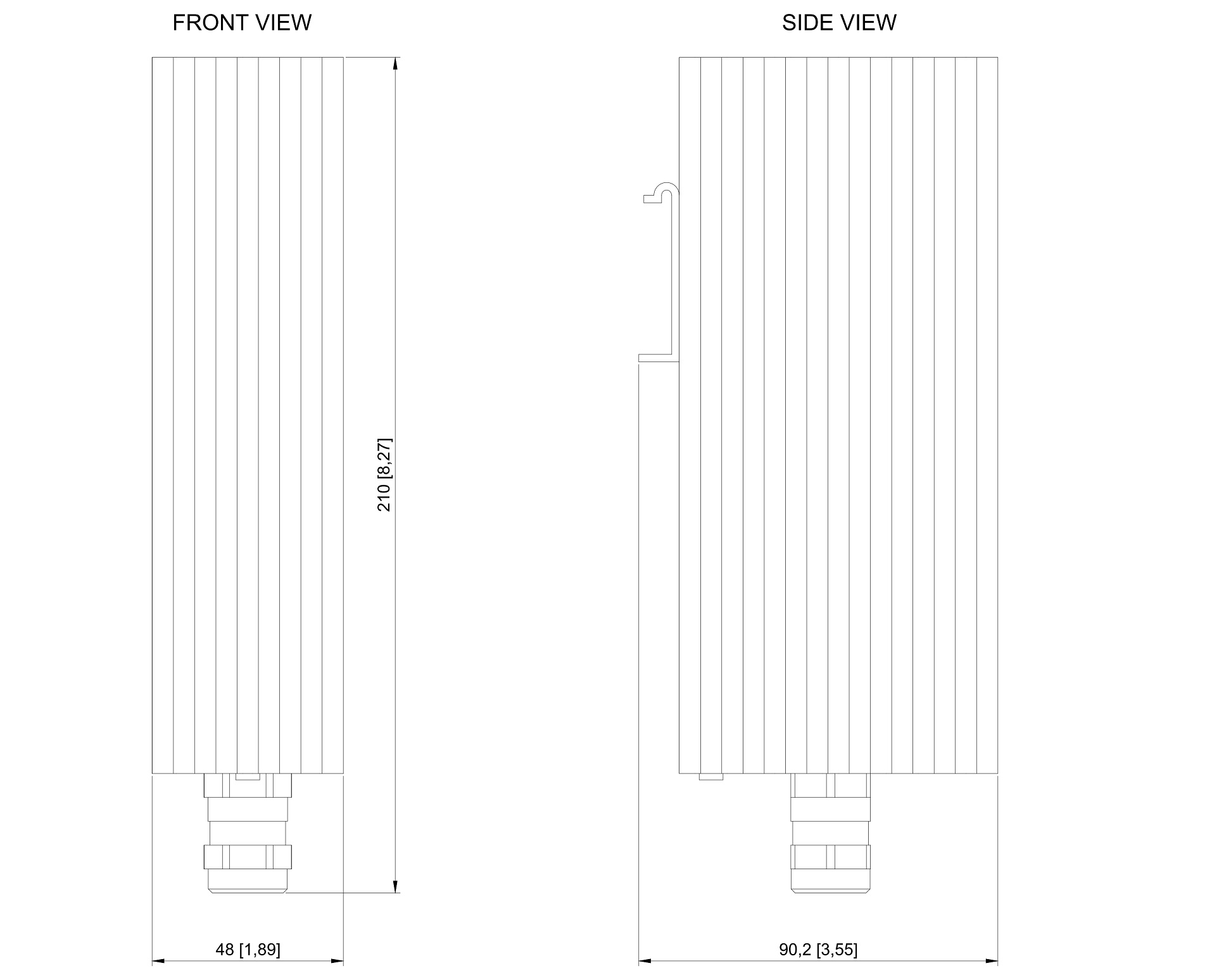

    2810011019 - Heater_DimDraw
