EX Heater with ex cable gland and cable

EX-HEAT-115

Item Number: 2810011095

EX Heater, IP66, 100W, T4, 115VAC

  • For use in hazardous areas
  • For use in wet areas (IP66)
  • DIN rail and screw mounting
  • Maintenance free
  • Temperature class T4
IP66 IP66
Atex

The EX-HEAT-115 is a robust, compact convection heater designed for use in hazardous areas. With its temperature class T4 rating (275 °F / 135 °C max.), this heater excels in preventing condensation formation, preventing temperature fluctuations, and providing frost protection in indoor and outdoor cabinets.

The heater has a 1m silicone connection cable (halogen-free).

Applications:

  • Enclosures and control cabinets in explosive environments
  • Encloser and cabinet where watertight thermostat is needed



Specification
Model Stego 02042.9-00
Technical Data AC 120 V
Heating capacity 100 W
Rec. pre-fuse T (time-delay) 2.0 A

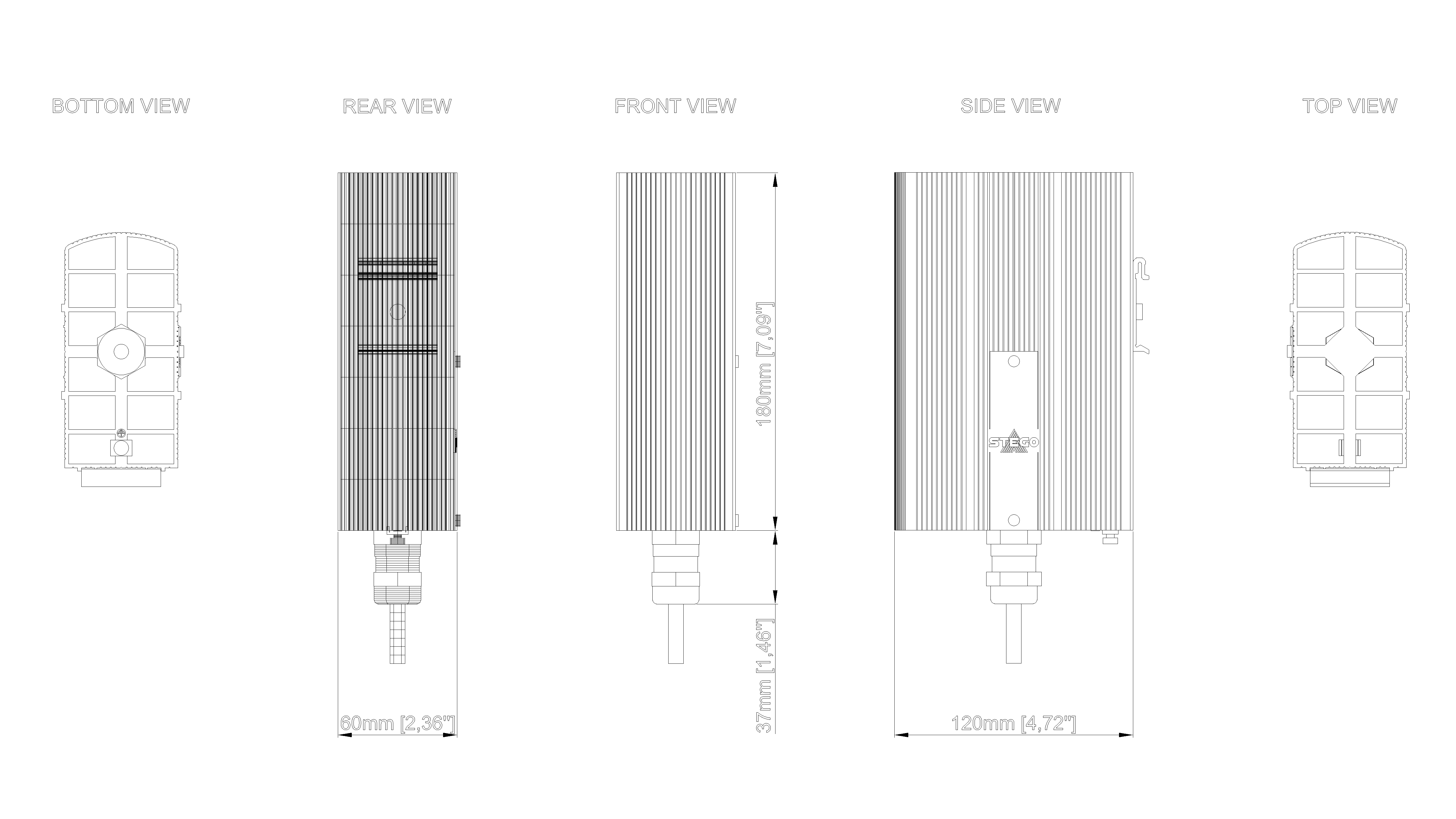

Dimensions (D x W x H) 4.7 x 2.4 x 7.1" (120 x 60 x 180 mm)
Weight approx. 3.1 lbs (1.4 kg)
Technical Data
Temperature class T4
Ex Protection type II 2 GD Gases Ex db IIC T4 Gb
Ex Protection type II 2 GD Dusts Ex tb IIIC T135 °C Db IP66
Ambient temperature -76 to +122 °F (-60 to +50 °C)
Surface temperature max. +275 °F (+135 °C)
Heating body aluminum profile, silver anodized
Connection silicone cable (halogen-free) 3 x AWG 18 (0.75 mm²), length 3 ft (1 m)
Mounting clip for 35 mm DIN rail, EN 60715 for heating body sizes 3.2 x 1.9" and 4.7 x 2.4"; screw mounting with 2 mounting brackets for all heating body sizes, optional sideways mounting
Mounting position vertical airflow (connection at bottom)
Storage temperature -76 to +185 °F (-60 to +85 °C)
Operating / Storage humidity max. 90 % RH (non-condensing)
Protection type / Protection class IP66 / I (grounded)
Approvals EPS 16 ATEX 1 109 X
IECEx EPS 16.0048X
EAC

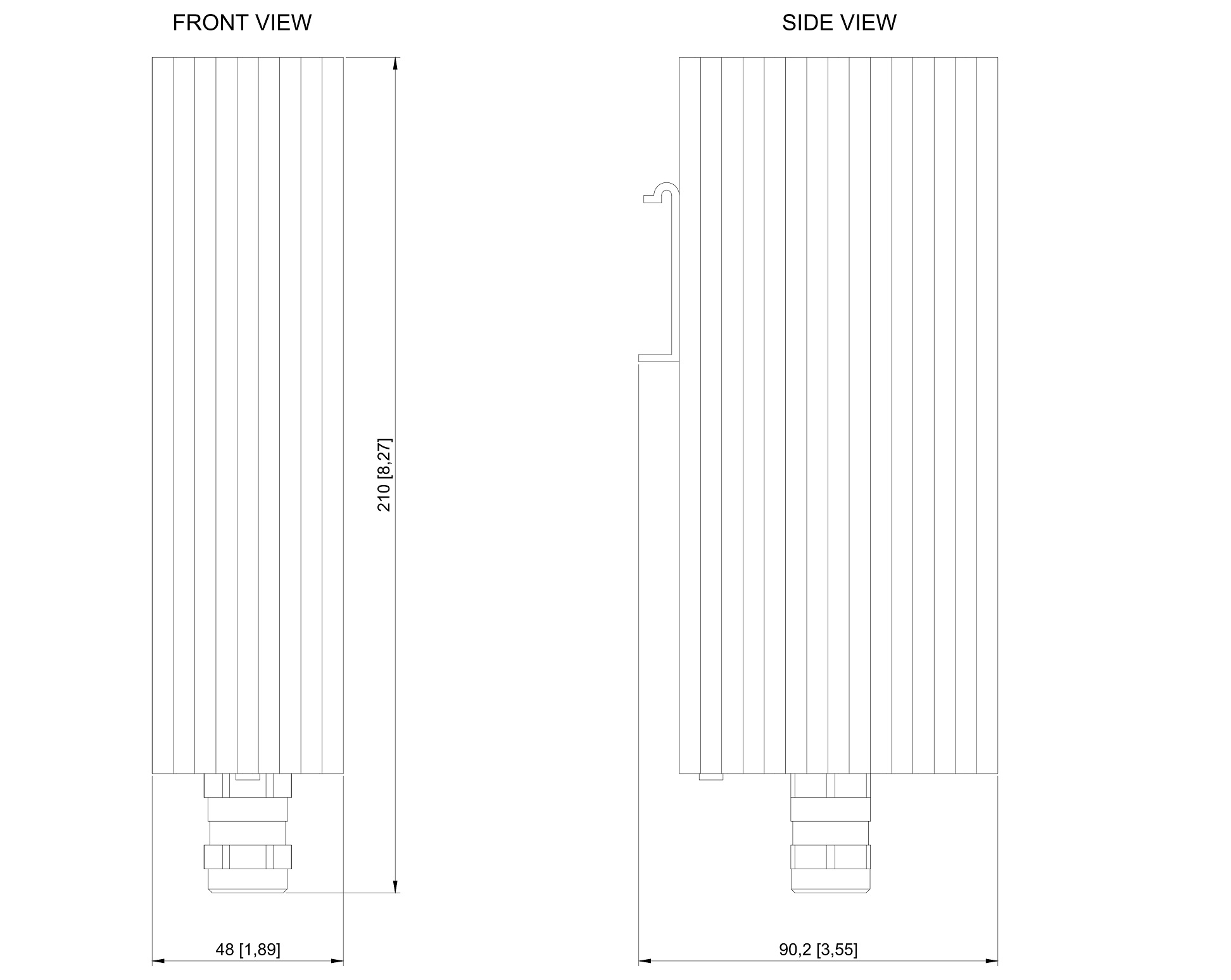

2810011019 - Heater_DimDraw

2810011096 - WT-BOX_Image

WT-BOX

Watertight box w/ 6x labeled terminals and 3x M20 glands
