WT-BOX

Item Number: 2810011096

Watertight box w/ 6x labeled terminals and 3x M20 glands

  • Watertight junction box for heater and thermostat
  • 3x M20 cable glands included
  • Terminals and labeling included
IP66 IP66

This polycarbonate watertight box is ideal for connecting heaters and thermostats inside PLM or WCAB cabinet series. It comes with 3x M20 cable glands and marked terminals.

The WT-BOX features IP66 ingress protection, making it suitable for use in cabinets that may be exposed to rain or sea spray.



TECHNICAL DATA
Protection category IP66
Width 110 mm
Height 110 mm
Depth 66 mm
Basic material Polycarbonate
Cable glands 3x M20
Terminals 6x A2C 2.5

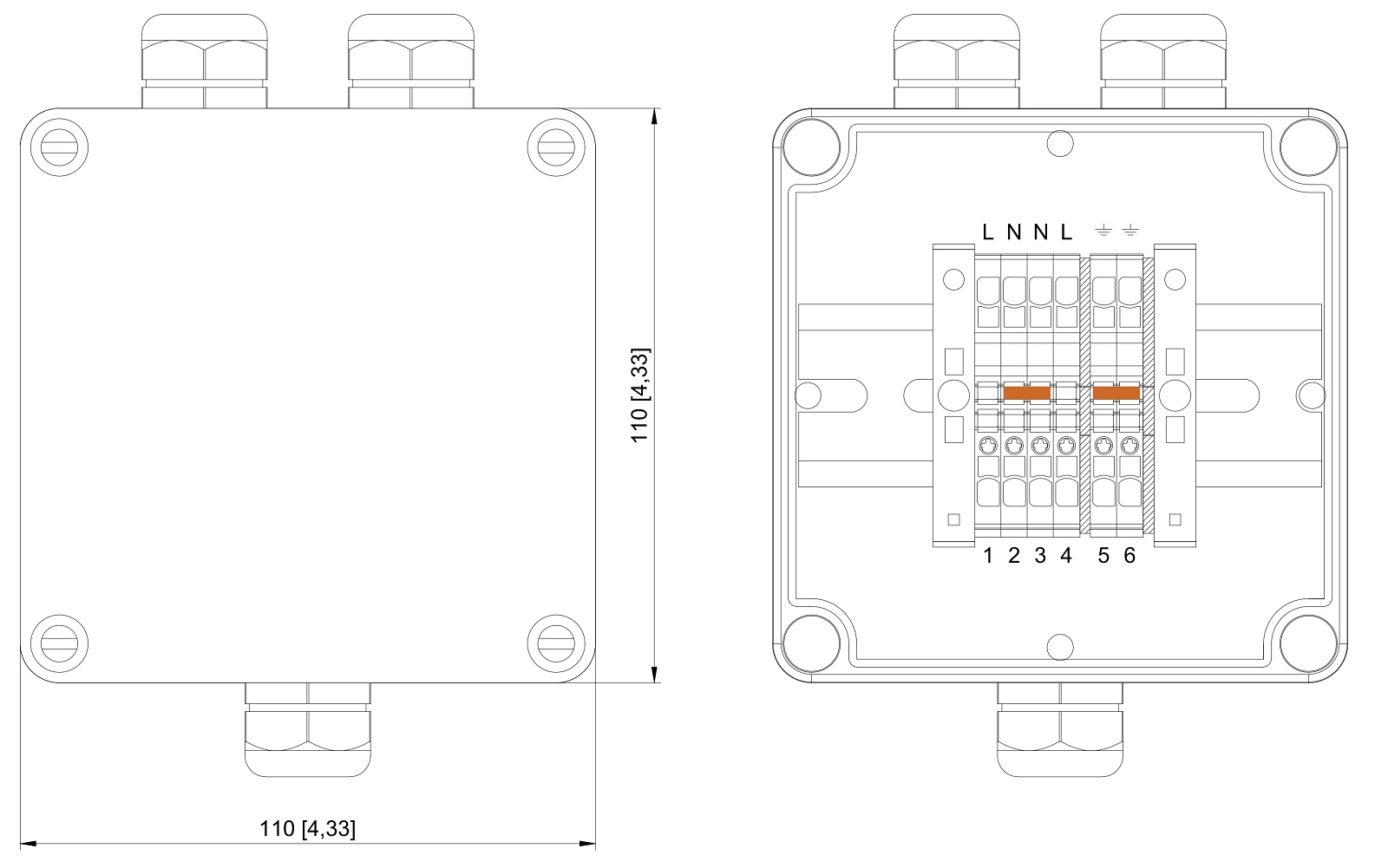

2810011096 - WT-BOX - Watertight Box - Dim_Draw

Date Name Category Size Document
2810011096 - WT-BOX - Dimensional Drawing CAD 2D 424.56 KB Login to download
