ITCS-C5 Layout

ITCS-C5

Item Number: 4000019752

Unit for calling and call reset for bathroom

Unit for Call and Call Reset for bathroom

  • Mostly used in bathrooms/toilets
  • Call is done by pulling line - rope in direction marked with arrow
  • Red bulb in push button lights when call is done, unitl call is reset
  • Bulkhead mounting
Mechanical
Dimensions (WxHxD) 180x94x81 mm
Weight 0.5 kg
Cable inlet (gland) 1 x PG 13.5
Protection IP 44

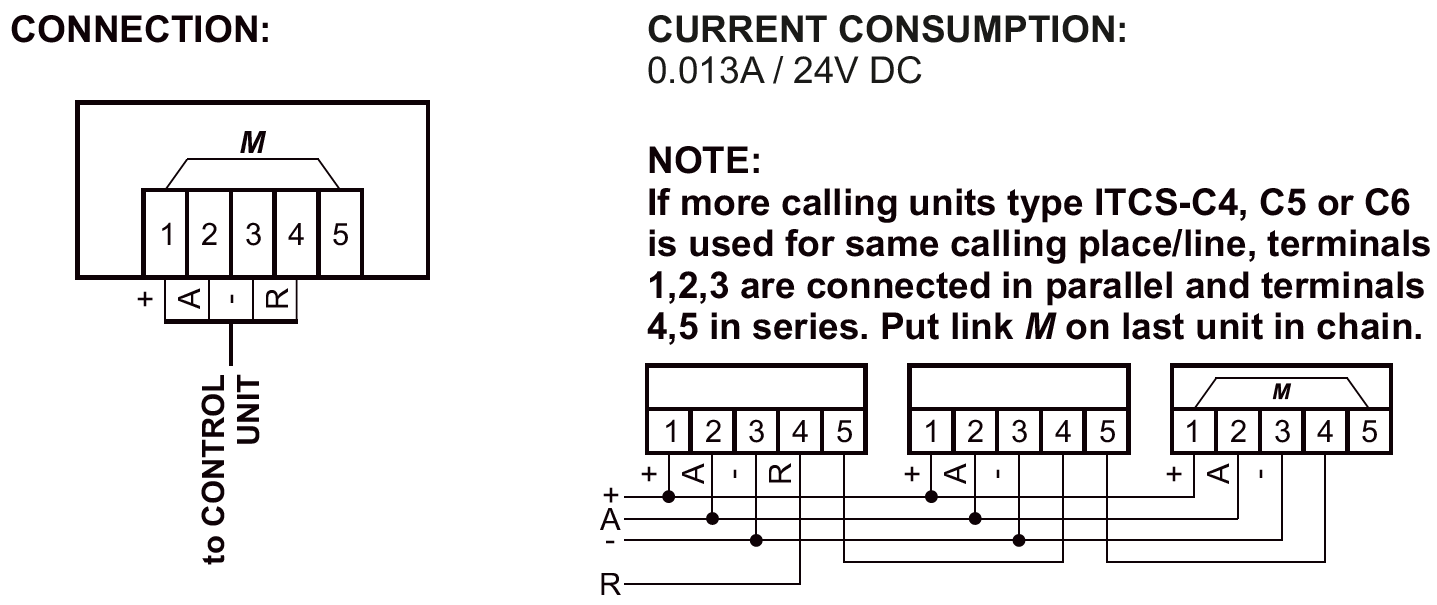

ITCS-C5 wiring

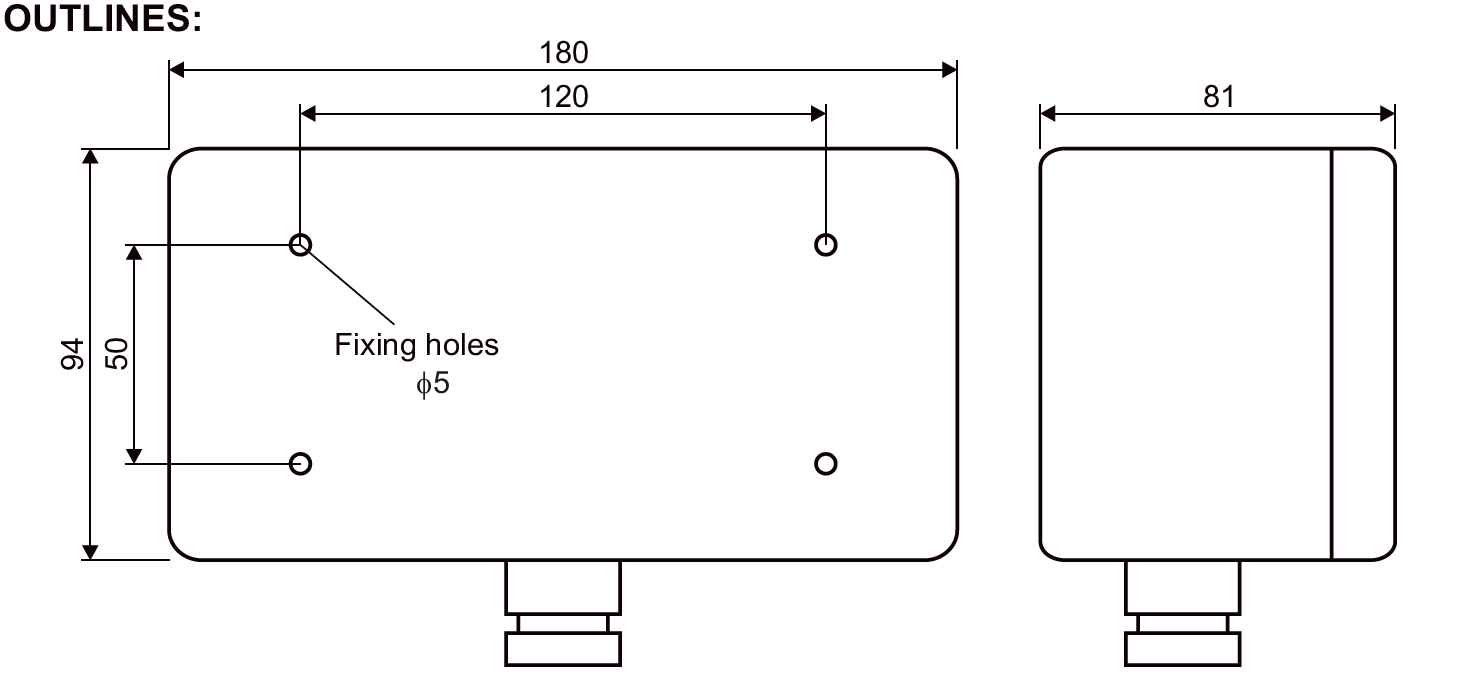

ITCS-C5 outlines

ITCS-C8

ITCS-C8

Calling unit, for call from sauna, bulkhead mounting

Date Name Category Size Document
30.10.2024 ITCS-C5 Description Manual 1.36 MB Login to download
